Reference Monoblock Power with Exceptional Current Delivery and Loudspeaker Control

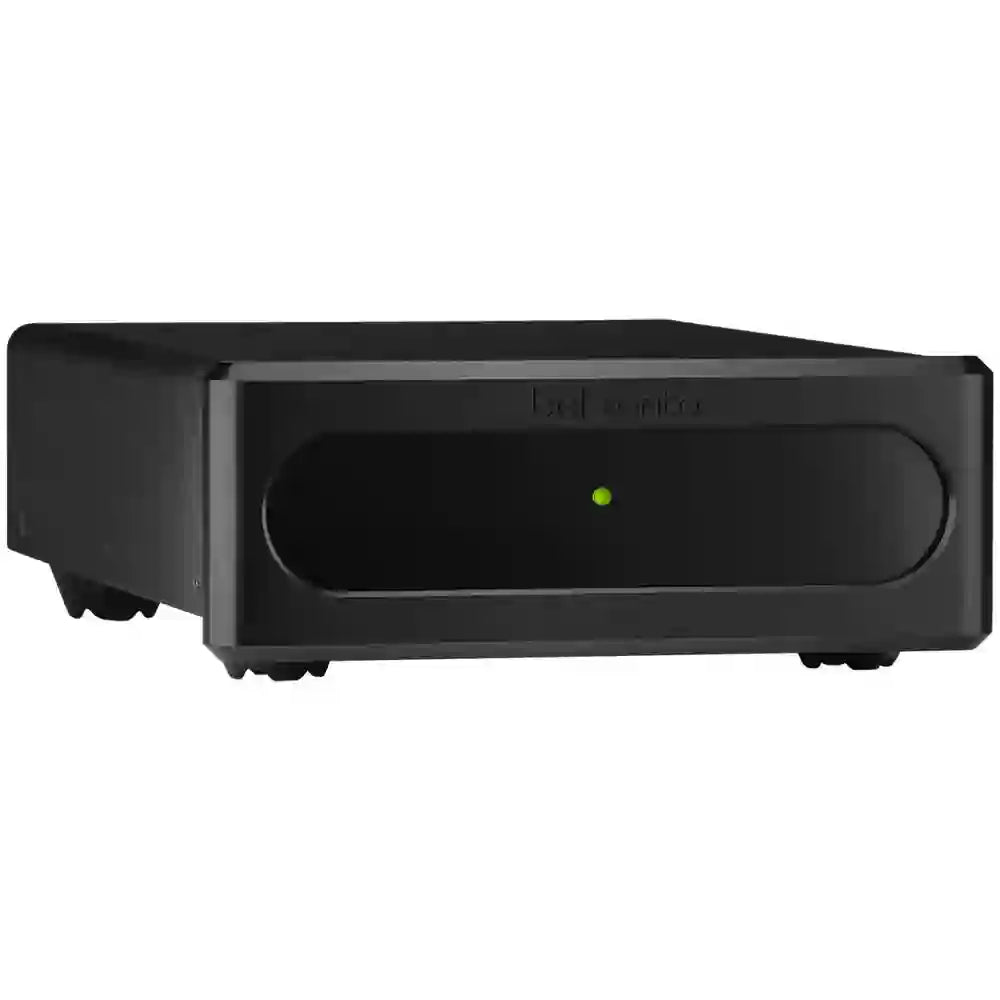

The Bel Canto e.One REF600M Power Amplifier in Black is a compact high-output monoblock designed to provide demanding loudspeakers with substantial power, current and control. Each REF600M powers a single loudspeaker channel, delivering 300 watts into 8 ohms and 600 watts into 4 ohms while maintaining compatibility with loads as low as 2 ohms. A peak output-current capability of 27 amps allows the amplifier to respond confidently to difficult impedance curves and demanding musical transients.

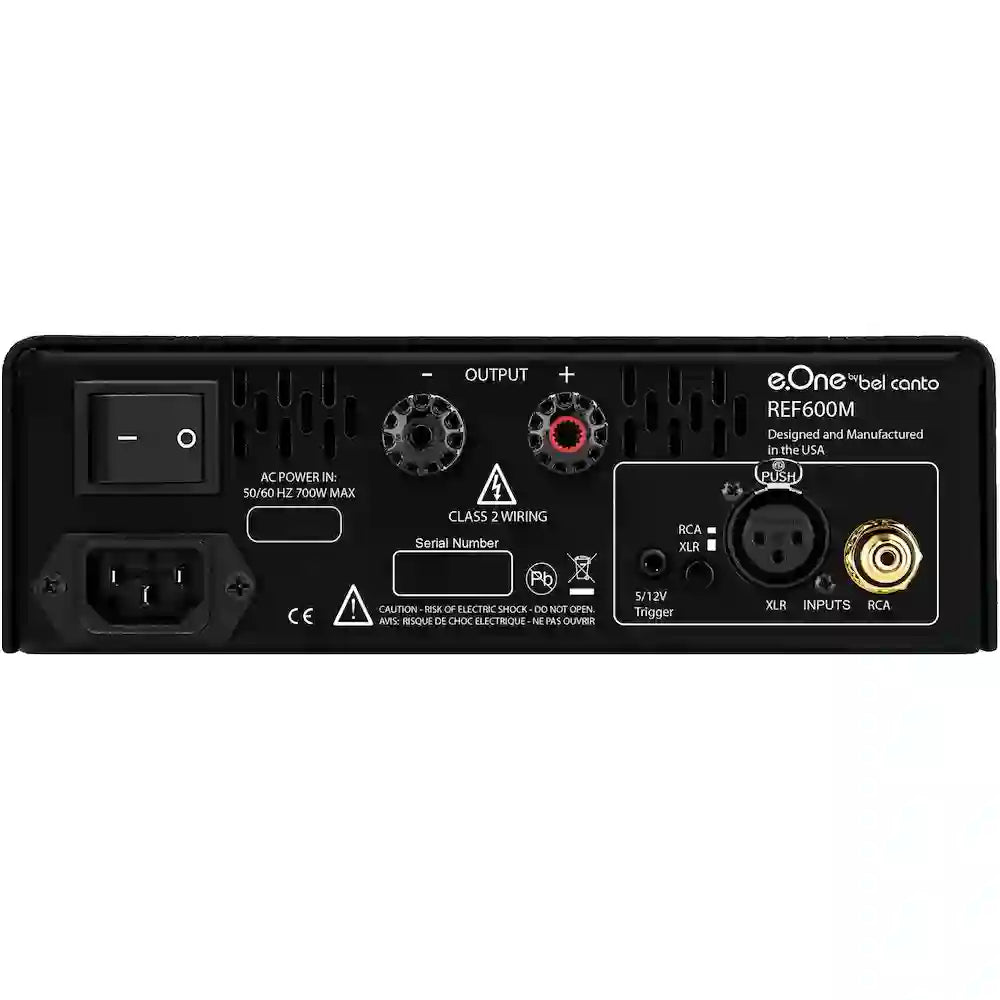

Balanced XLR and single-ended RCA inputs allow the REF600M to integrate with a broad range of preamplifiers and DAC/control components, while selectable 27dB or 33dB gain simplifies matching with different source systems. An exceptionally high damping factor, low output impedance and WBT NextGen binding posts provide firm electrical control of the connected loudspeaker, all within Bel Canto's compact e.One chassis.
Highlights & Benefits
-
600W into 4 Ohms — High-output monoblock architecture delivers 300 watts into 8 ohms and 600 watts into 4 ohms for demanding loudspeaker systems.
-
27A Peak Output Current — Substantial current capability supports dynamic musical peaks and loudspeakers with challenging impedance characteristics.
-
>1000 Damping Factor — Extremely low output impedance gives the REF600M strong electrical control over woofer movement and transient behavior.
-
Balanced XLR & RCA Inputs — Selectable balanced and single-ended connections make it easy to integrate the amplifier with a variety of high-end preamplifiers.
-
Selectable 27dB / 33dB Gain — Internal gain selection provides additional flexibility when matching the REF600M to different control components and system configurations.
Technology & Design
NCore Amplification Technology — The REF600M uses an advanced high-efficiency Class D architecture designed for wide bandwidth, extremely low distortion and strong load independence while delivering substantial output power from a compact chassis.
Low Output Impedance — Bel Canto specifies output impedance below 8 milliohms at 100Hz, contributing to a damping factor greater than 1000 and excellent control of connected loudspeakers.
High Dynamic Range — A specified 121dB dynamic range and low 35µVrms A-weighted output noise help preserve both quiet musical detail and large-scale dynamic contrasts.
WBT NextGen Loudspeaker Connection — A premium five-way binding-post pair provides a secure, low-resistance interface for high-quality speaker cables terminated with banana plugs, spades or compatible bare wire.
FAQ — Bel Canto REF600M
Is the Bel Canto REF600M a stereo amplifier?
No. The REF600M is a monoblock amplifier, meaning one amplifier powers one loudspeaker channel. A conventional two-channel stereo system therefore requires two REF600M amplifiers.
How much power does the REF600M produce?
Bel Canto rates the REF600M at 300 watts into 8 ohms and 600 watts into 4 ohms at 1% THD, with a 2-ohm minimum loudspeaker load and 27 amps of peak output current.
Can I use either XLR or RCA connections with the REF600M?
Yes. The amplifier includes both balanced XLR and single-ended RCA inputs with a rear-panel input selector. Bel Canto instructs users to connect only one input type at a time.
Is the REF600M still the current Bel Canto monoblock amplifier?
No. The REF600M is a previous-generation e.One model. Bel Canto's current e.One monoblock is the REF601M, which succeeds the REF600M while retaining the same fundamental 300-watt / 8-ohm and 600-watt / 4-ohm power class.
