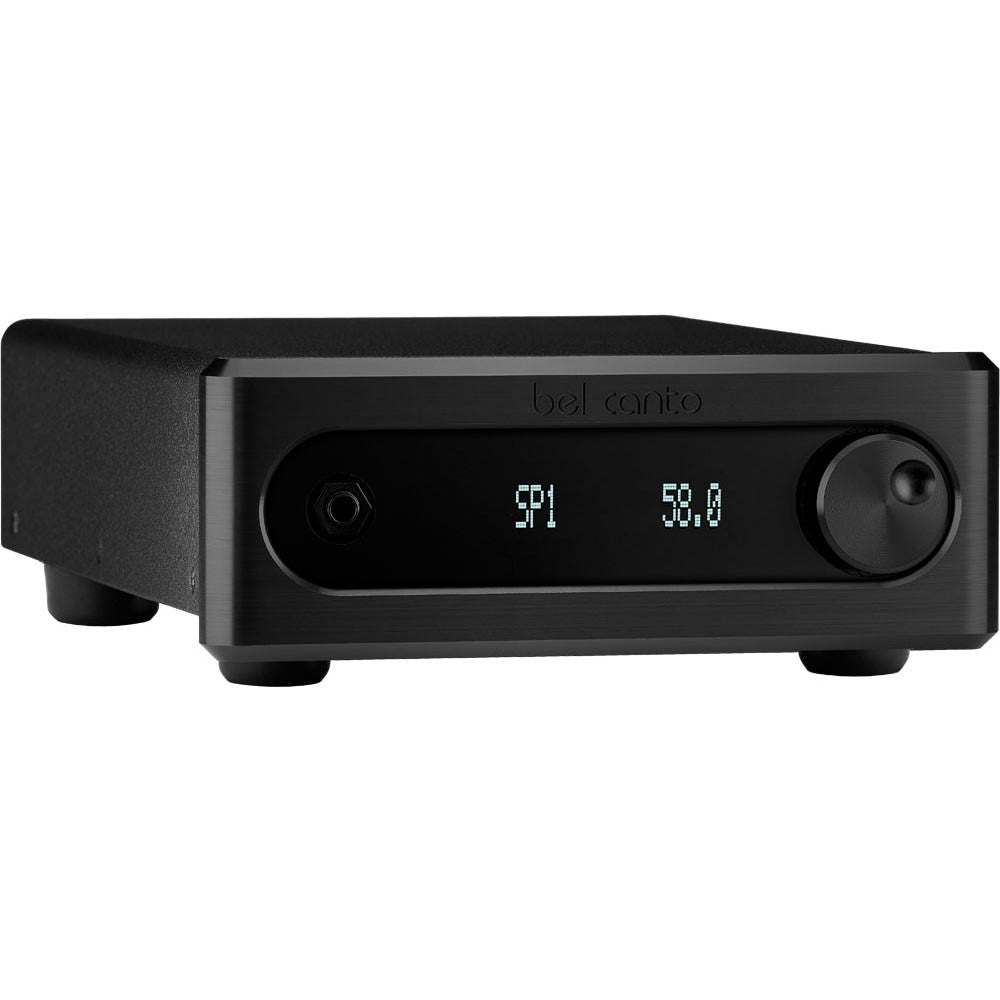

Bel Canto e.One DAC2.8 Control Pre-amp and DAC - Bel Canto
Incredible audio performance, features, and flexibility, the DAC2.8 is musically open, detailed, and natural sounding
Features:
- Class Leading 124dB Dynamic Range
- 24 Bit Volume Control
- 24/192 Asynchronous USB2.0
- RCA Analog Input

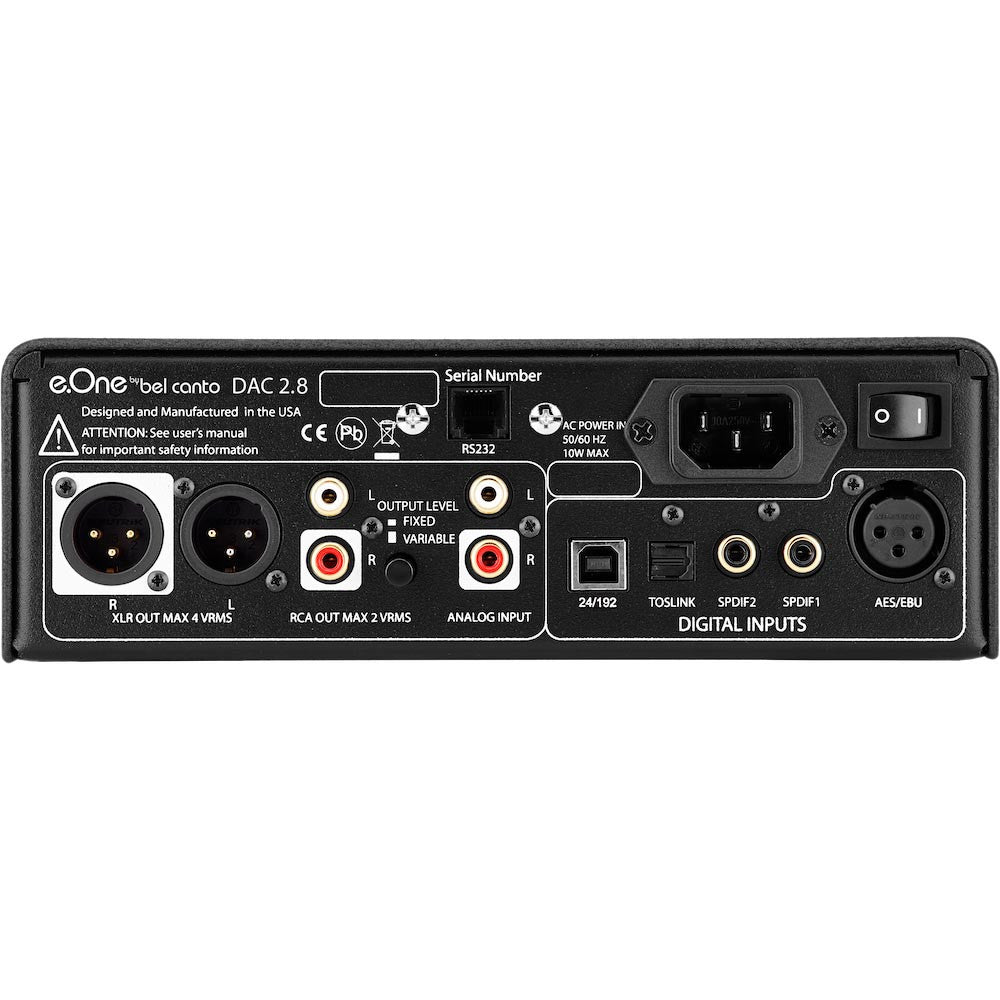

- 5 Asynchronous Digital Inputs
- Balanced XLR and RCA Analog Outputs
- Fixed or variable output
- High Current Headphone Output Driver
- Remote Control

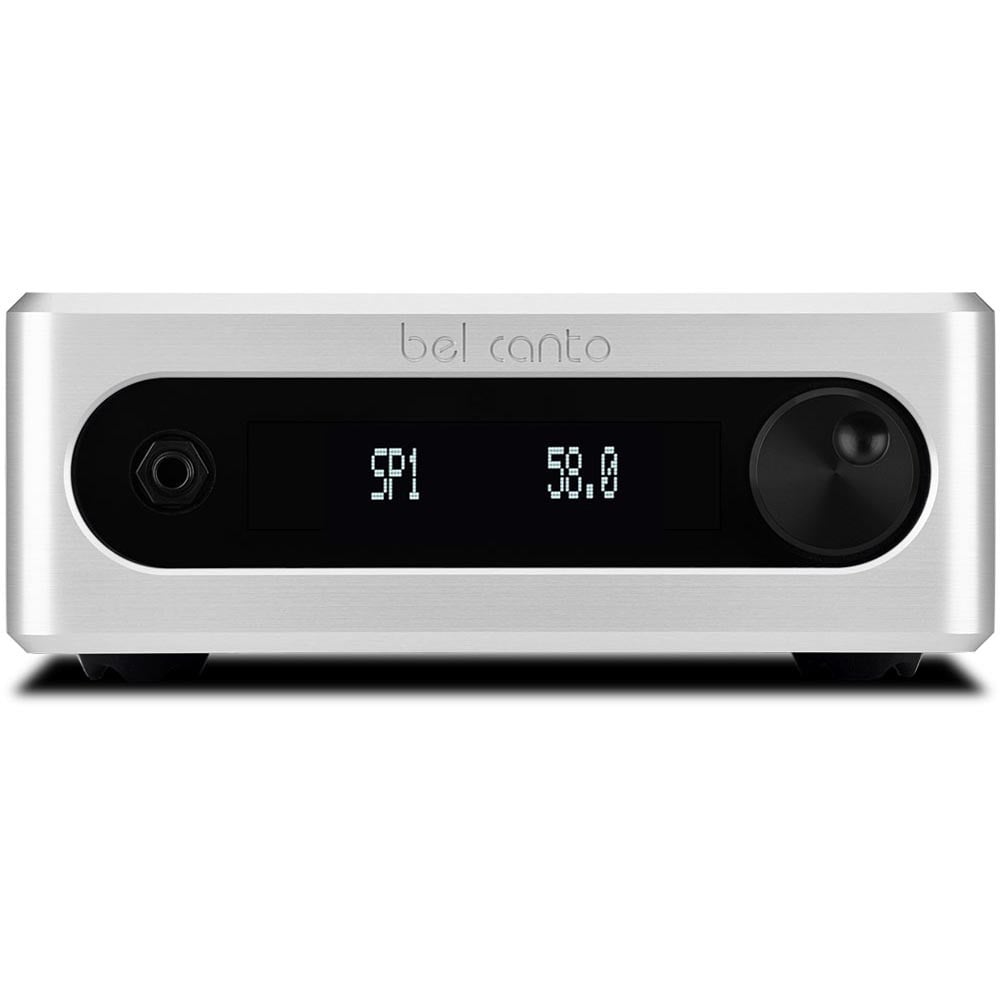

- Available in Black or Silver Faceplate
- MAC USB 2.0 compatibility and custom Windows USB 2.0 driver
Built In Headphone Output
This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.
Simple, Elegant Interface
Designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The single 4 digit display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.
Asynchronous USB Input
24/192 Asynchronous input works with the internal dual Low Noise clocks to provide unprecedented digital audio sound quality and impact from your computer audio sources.
Specifications:
Digital Section:
- Maximum Data Input Rate
- 24bit Data at 192KS/s: AES XLR, SPDIF BNC/RCA, TOSLINK, USB
- Master Clock jitter: 70 femtoseconds RMS, 100Hz-1MHz
Analog 24/192 DAC Section:
- Maximum Output: 4.4Vrms balanced XLR, 2.2Vrms RCA
- Output Impedance: 200 ohms balanced XLR, 100 ohms RCA
- Frequency Response: 20 Hz-20 KHz, +/- 0.5dB
- THD+N: <0.0015%, 4Vrms balanced out, 1KHz
- Output Noise: 3.3uVrms A-weighted 20Hz-20KHz
- Dynamic Range: 124dB A-weighted 20Hz-20KH
Analog 24/192 ADC Section:
- Maximum Input: 2.5 Vrms RCA
- Input Impedance: 12K ohms RCA
- THD+N: 0.003%, 2.5Vrms in, 1KHz
- Dynamic Range: 110dB, A-weighted 20Hz-20KHz
Headphone Section:
- Headphone Output Current and Voltage Level: 300mA peak at 4Vrms
- Maximum Output: 138mW
- THD+N: 0.01% 35mW, 1KHz
- Output Noise: 17uVrms, A-weighted 20Hz-20KHz
General:
- Power Usage On: 7W
- Power Usage Off: 0.0W
- Power Requirement: 100-120VAC, 220-240VAC 50/60 Hz
- Dimensions: 8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm)
- Weight: 14lbs. (6.5 kg)
- Features and specifications are subject to improvements and changes without prior notice.
