High-Current Class AB Power with Stereo and Bridged-Mono Flexibility
The Audiolab 9000P Power Amplifier brings dedicated high-current amplification to Audiolab's flagship 9000 Series. In stereo operation it delivers 100 watts per channel into 8 ohms and 160 watts per channel into 4 ohms, while a maximum output-current capability of 15 amps provides the reserve needed to control demanding loudspeaker loads with authority, speed and dynamic confidence.
Designed as the natural power-amplifier partner for the Audiolab 9000Q preamplifier, the 9000P also supports bridged-mono operation. In this configuration a single amplifier can deliver 300 watts into 8 ohms, allowing two 9000P units to form a powerful monoblock system. Balanced XLR and unbalanced RCA inputs provide flexible system integration, while a 12V trigger connection supports coordinated power control with compatible components.
Highlights & Benefits
-
100W Per Channel into 8 Ohms — Delivers 2 × 100 watts in stereo operation with 160 watts per channel available into 4-ohm loudspeakers.
-
Bridged Mono Operation — Switch the amplifier into mono mode for up to 300 watts into 8 ohms, making dual-9000P monoblock systems possible.
-
15A Maximum Output Current — High current capability provides strong loudspeaker control and dynamic headroom with demanding speaker loads.
-
Balanced XLR & RCA Inputs — Supports both balanced and single-ended preamplifier connections for flexible system configuration.
-
Dedicated 9000 Series Design — Matches the 9000Q, 9000N and other flagship Audiolab components in both performance philosophy and chassis styling.
Technology & Design
Complementary Feedback Class AB Topology — Audiolab's CFB circuit architecture is designed to provide excellent linearity and thermal stability while keeping idle current largely independent of output-transistor temperature.
320VA Toroidal Transformer — A custom-specified toroidal transformer provides the power supply foundation for the amplifier's high-current output stage and dynamic performance.
60,000µF Reservoir Capacitance — Four 15,000µF reservoir capacitors provide substantial stored energy to help maintain firm loudspeaker control during demanding musical peaks.
Stereo / Bridge Mode Architecture — The 9000P can operate as a conventional two-channel power amplifier or be converted into a high-output monoblock, giving system builders a straightforward upgrade path.
FAQ — Audiolab 9000P
How much power does the Audiolab 9000P produce?
In stereo mode, Audiolab rates the 9000P at 100 watts per channel into 8 ohms and 160 watts per channel into 4 ohms. In bridged mono mode it is rated at 300 watts into 8 ohms and 380 watts into 4 ohms.
Can the Audiolab 9000P be used as a monoblock?
Yes. The 9000P includes a bridged operating mode that combines its two amplifier channels into a single higher-powered mono output. Two 9000P amplifiers can therefore be used as a left/right monoblock pair.
Does the 9000P have balanced inputs?

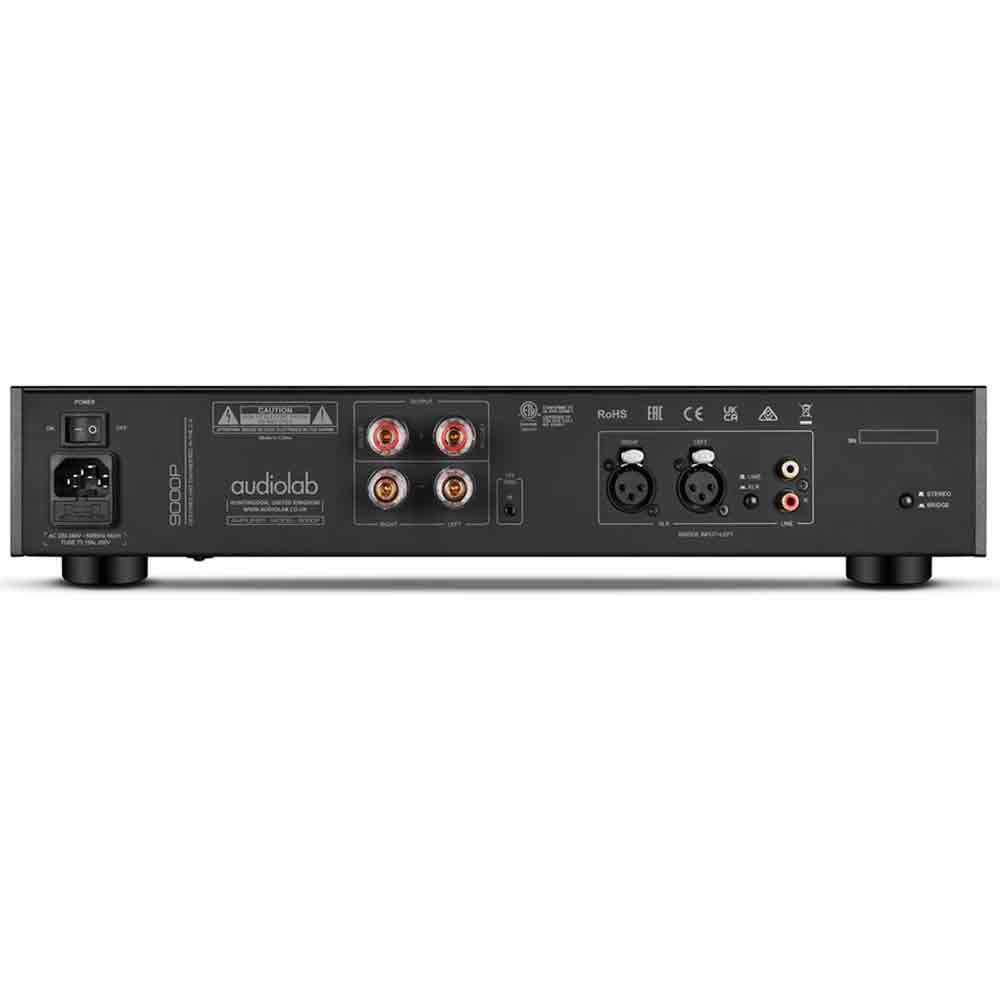

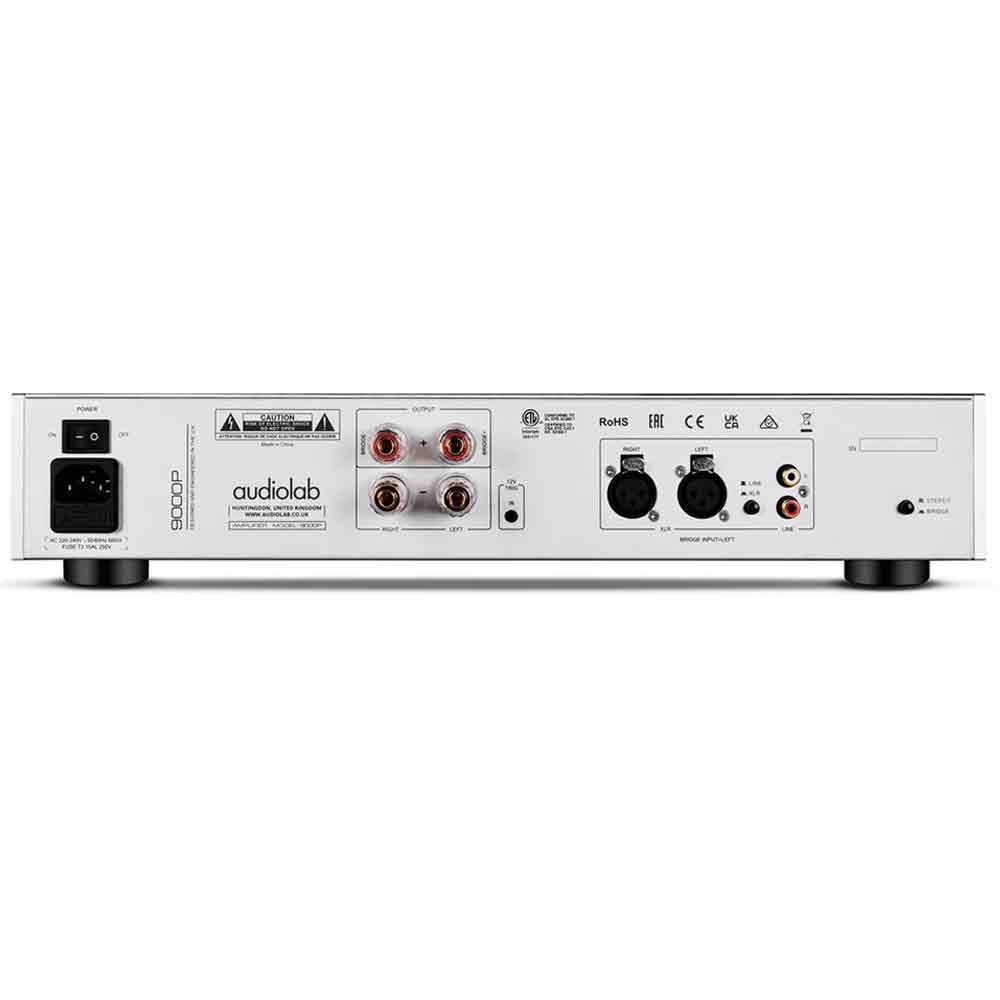

Yes. The 9000P includes one stereo balanced XLR input as well as one stereo unbalanced RCA input. Audiolab specifies 23dB gain through XLR and 29dB through RCA.
What preamplifier is designed to pair with the 9000P?
The Audiolab 9000Q is the dedicated 9000 Series preamplifier and is the natural companion for the 9000P. The amplifier can also be used with other compatible preamplifiers, streamers with variable analog output, or systems that provide a suitable line-level preamp output.
