High-Resolution MicroLine Performance with a Rigid Aluminum Cartridge Body

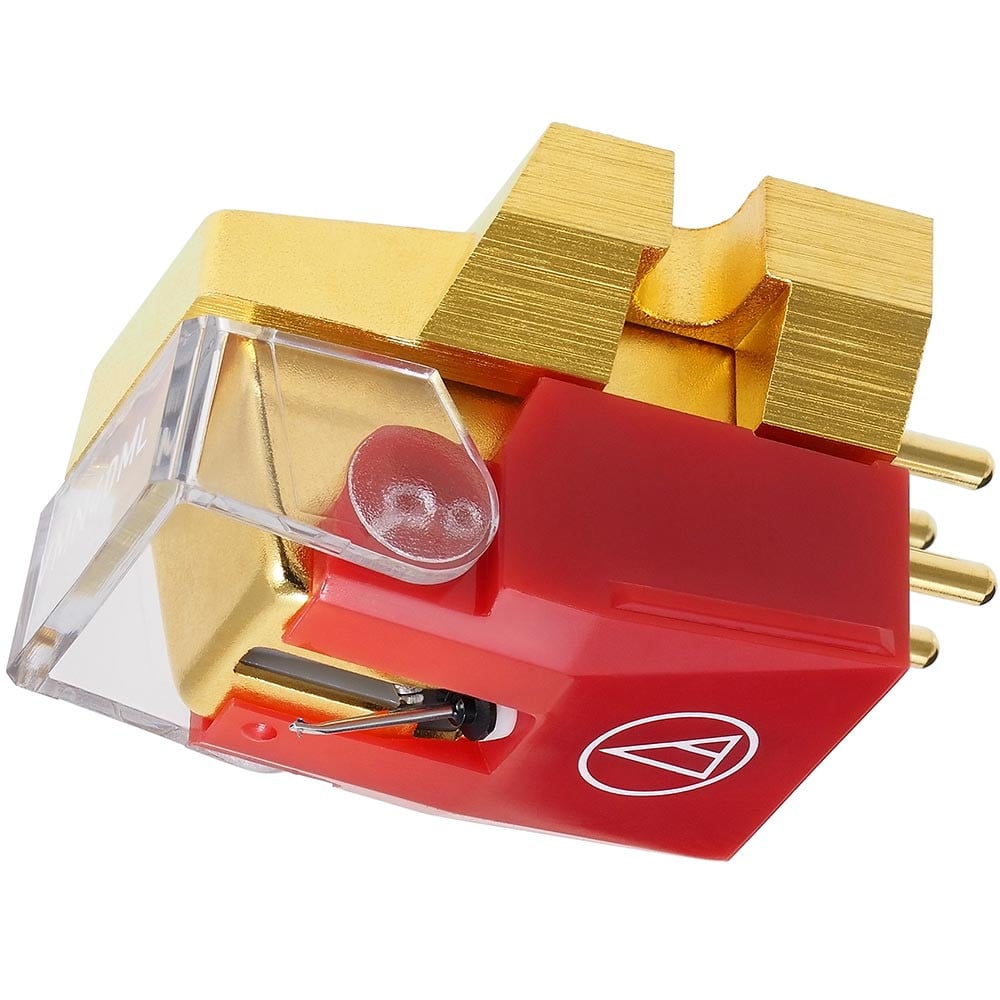

The Audio-Technica VM740ML Dual Moving Magnet Cartridge combines Audio-Technica's VM700-series generator architecture with a nude MicroLine stylus designed for exceptionally precise groove tracing. Its 2.2 × 0.12 mil stylus profile follows fine groove modulation with a narrow contact radius, helping reveal subtle musical detail, reduce inner-groove distortion and maintain excellent tracking across demanding record passages.
A tapered aluminum cantilever reduces unnecessary moving mass while maintaining rigidity, and the cartridge's die-cast aluminum-alloy housing helps suppress vibration while providing natural electrical shielding. Paratoroidal coils and a center shield plate further support efficient signal generation and strong stereo separation, making the VM740ML a refined choice for high-quality moving-magnet phono systems.
Highlights & Benefits
-
Nude MicroLine Stylus — The 2.2 × 0.12 mil line-contact profile provides highly accurate groove tracing and excellent inner-groove performance.
-
Die-Cast Aluminum-Alloy Housing — The rigid body helps reduce unwanted resonance and provides natural electrical shielding around the cartridge generator.
-
Dual Moving Magnet VM Architecture — Separate magnets correspond to the left and right groove channels for accurate stereo reproduction and strong channel separation.
-
Paratoroidal Coil System — Audio-Technica's coil configuration improves generating efficiency and helps preserve a clean, responsive signal.
-
Interchangeable VM Series Stylus — The cartridge body accepts compatible VM-series replacement styli, allowing the stylus to be replaced without changing the complete cartridge.
Technology & Design
2.2 × 0.12 mil Nude MicroLine Diamond — The MicroLine profile uses a narrow horizontal contact radius and extended vertical contact area to follow fine groove modulation with exceptional precision.
Tapered Aluminum Cantilever — Tapering the cantilever reduces moving mass while preserving rigidity, helping the stylus respond quickly to rapid groove movements.
Paratoroidal Coils and Center Shield Plate — Two coils are arranged within each channel for improved generating efficiency, while a center shield physically separates the left and right sections to reduce crosstalk.
Aluminum-Alloy Cartridge Housing — The die-cast body provides a mechanically stable platform for the generator while helping suppress vibration and shield the sensitive internal circuitry.
FAQ — Audio-Technica VM740ML
What type of stylus does the VM740ML use?
The VM740ML uses a nude MicroLine stylus with a 2.2 × 0.12 mil curvature radius, mounted to a tapered aluminum-pipe cantilever.
What tracking force should I use with the VM740ML?
Audio-Technica specifies a vertical tracking-force range of 1.8 to 2.2 grams, with 2.0 grams as the standard recommended setting.
Can the VM740ML stylus be replaced?
Yes. The original replacement stylus is the Audio-Technica VMN40ML. The VM cartridge platform also allows compatible VM-series stylus assemblies to be installed on the cartridge body.
Is the VM740ML the same as the newer AT-VM740xML?
No. The VM740ML belongs to Audio-Technica's previous-generation VM Series, while the AT-VM740xML is part of the newer AT-VMx family. They have different specifications and cantilever designs, so this listing applies specifically to the VM740ML.
