Automatic End-of-Record Tonearm Protection for Manual Turntables

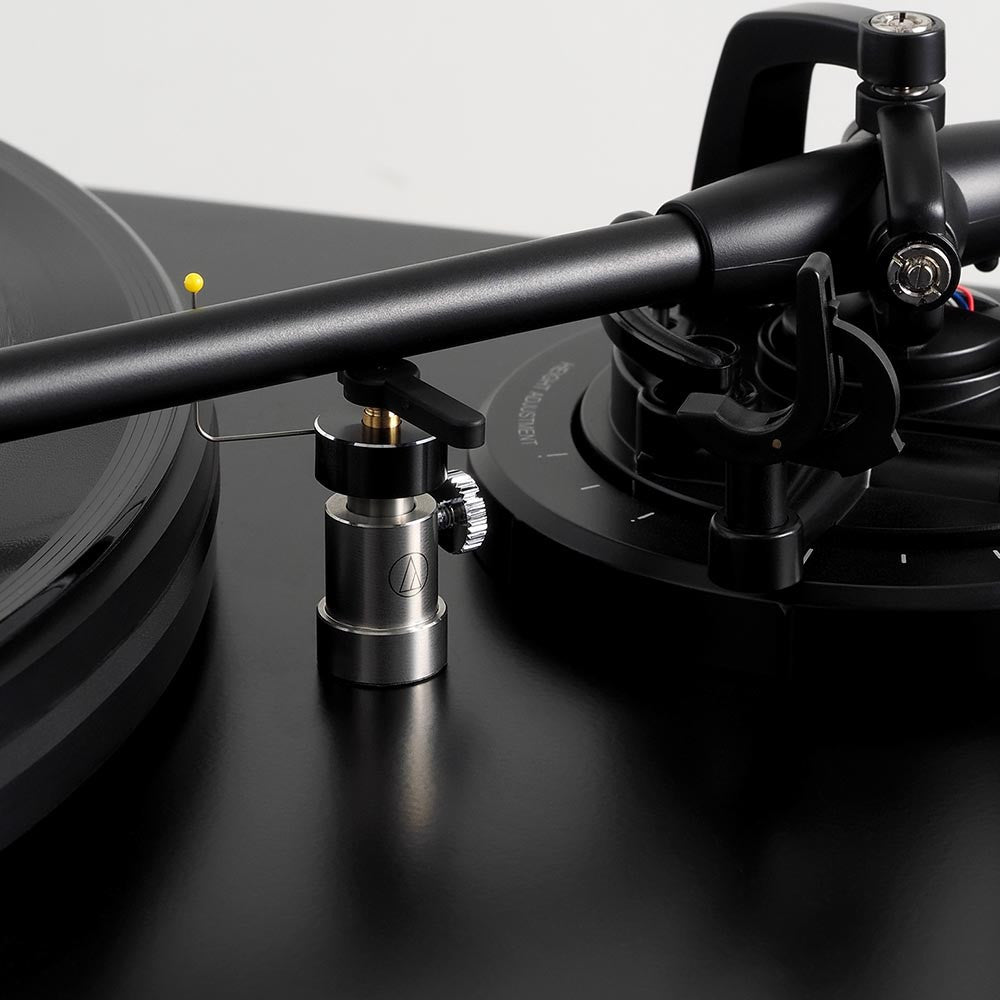

The Audio-Technica AT6006R Safety Raiser For Turntables adds automatic end-of-record tonearm lifting to compatible manual turntables. As the tonearm reaches the run-out area of the record, a highly sensitive release antenna activates the raiser, gently lifting the tonearm away from the record surface. This helps prevent the stylus from remaining unnecessarily in the run-out groove and provides added peace of mind when listening to a fully manual turntable.
A hydraulic lifting mechanism works with a rubber-covered lift bar to raise the tonearm smoothly and safely. The AT6006R also includes a height-adjustment knob and two spacers, allowing its operating height to be adapted to a variety of turntable and tonearm configurations. Its compact footprint makes it a convenient upgrade for compatible manual record players where sufficient mounting space is available.
Highlights & Benefits
-
Automatically Lifts the Tonearm — Activates when the tonearm reaches the end of the record, reducing the need to immediately lift the arm manually.
-
Helps Protect the Stylus — Prevents the stylus from continuing to ride in the run-out groove after playback has finished.
-
Smooth Hydraulic Operation — The hydraulic lifting mechanism provides controlled, gentle tonearm movement instead of abruptly raising the arm.
-
Adjustable Installation Height — A built-in height-adjustment knob and two supplied spacers accommodate a variety of compatible tonearm heights.
-
Rubber-Covered Lift Bar — Provides a secure, cushioned contact surface where the raiser meets the underside of the tonearm.
Technology & Design
Sensitive Release Antenna — The trigger is positioned so the advancing tonearm contacts it near the end of the record, activating the lifting mechanism without requiring an electronic connection to the turntable.
Hydraulic Lift Mechanism — Once triggered, the AT6006R raises the tonearm in a controlled manner to help protect the cartridge and stylus from abrupt movement.

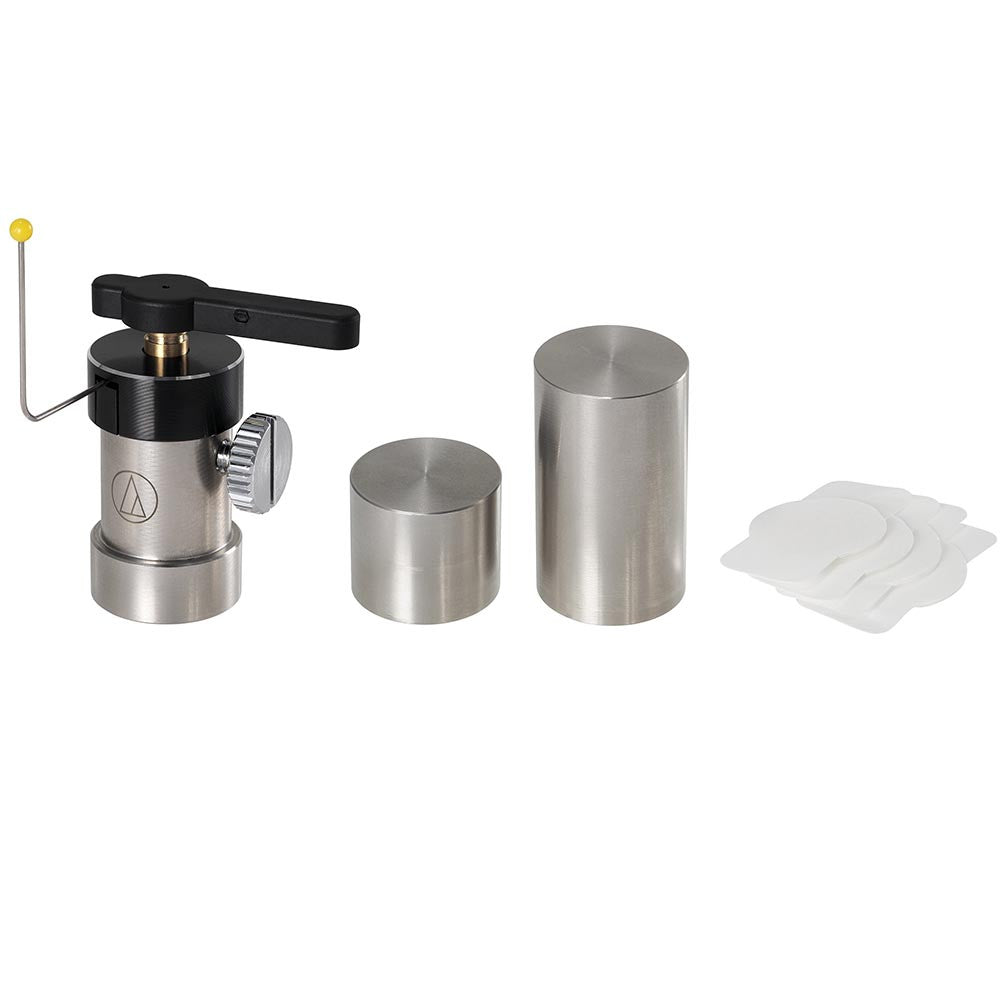

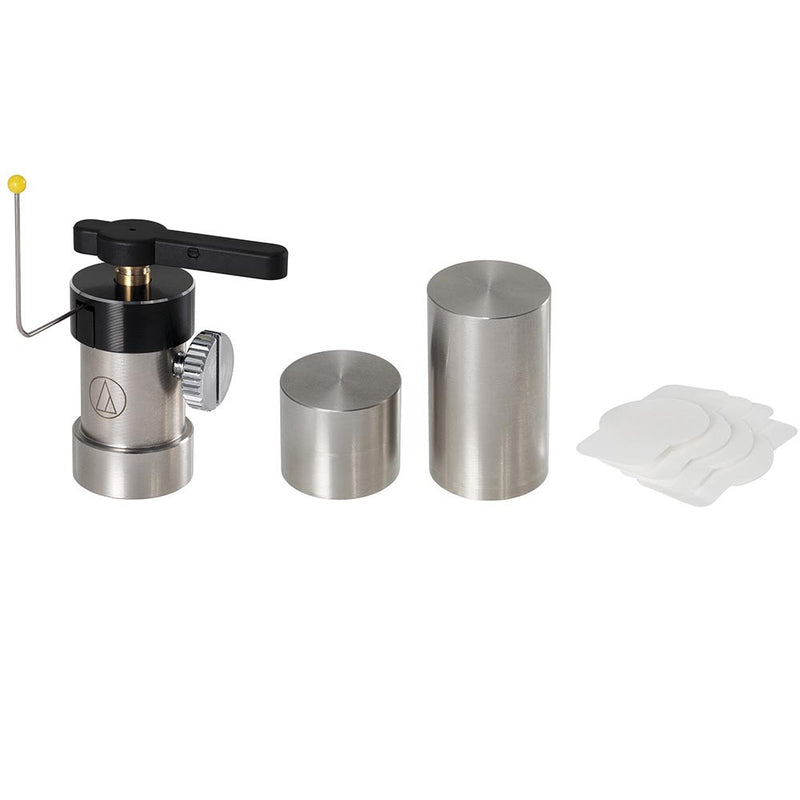

Adjustable Height System — The raiser can be adjusted between approximately 27 and 39 mm in standby position, while supplied 12 mm and 24 mm spacers provide additional installation flexibility.
Compact Adhesive-Mount Design — The small 14 mm-diameter body attaches to a suitable flat area of the turntable using the supplied double-sided tape, avoiding permanent modification of the turntable.
FAQ — Audio-Technica AT6006R
What does the Audio-Technica AT6006R do?
The AT6006R automatically raises the tonearm when it reaches the end of a record. It is designed primarily for manual turntables that do not already include an automatic tonearm-lift function.
Will the AT6006R work with every turntable?
No. Compatibility depends on available mounting space, tonearm position, tonearm height and the path the arm follows toward the center of the record. Audio-Technica specifically lists the AT-LP5, AT-LP5X, AT-LP7 and AT-LP7X as compatible among its own turntables. Other turntables may also be compatible when their dimensions and tonearm geometry provide sufficient mounting space.
Does the AT6006R return the tonearm to its rest?
No. The AT6006R raises the tonearm at the end of the record, but it does not move the arm horizontally back to its rest or shut off the turntable. The tonearm must still be returned manually.
How is the AT6006R installed?
The raiser mounts to a suitable flat area of the turntable using the supplied double-sided tape. Its position and height are adjusted so the tonearm contacts the release antenna near the end of the record and rests correctly on the rubber-covered lift bar when raised.
