Overview: AT-VM95SP

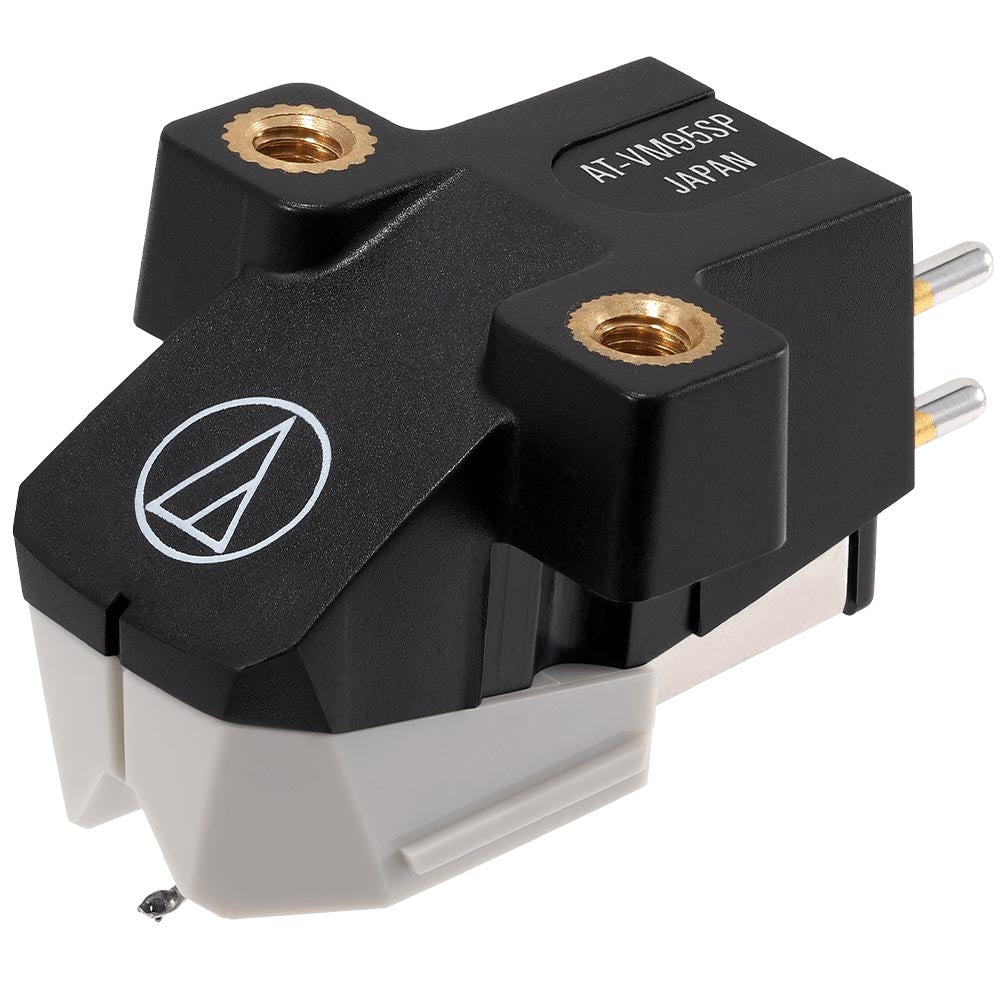

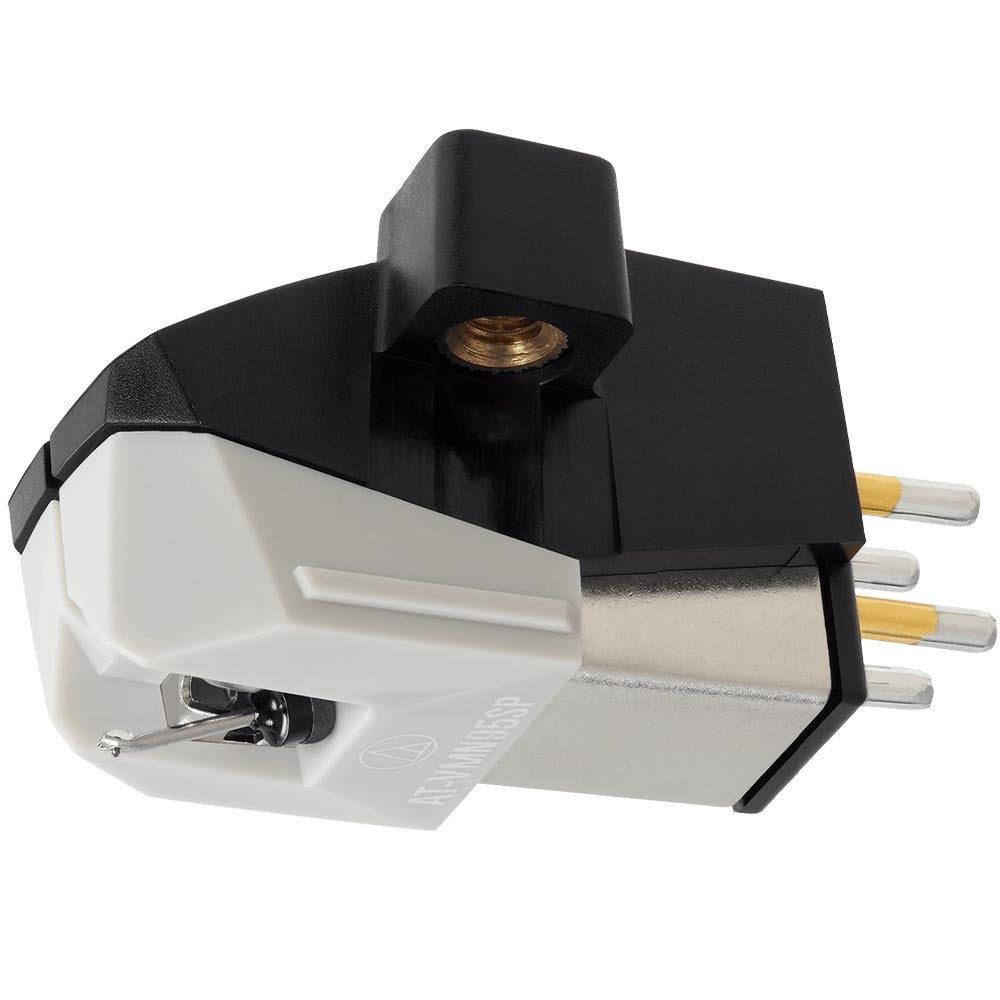

This VM95 Series cartridge with 3.0 mil conical stylus fits half-inch mount turntables. While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features:
- VM95 Series dual magnet cartridge with 3.0 mil conical stylus for 78 RPM records
- Aluminum cantilever
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
- Compatible with any AT-VMN95 replacement stylus
Specifications:
- Cartridge & Stylus
- Frequency Response: 20-20,000 Hz
- Channel Separation: NA
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 4.5-5.5 g (5.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 2.7 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: 3.0 mil conical
- Cantilever: Aluminum pipe
- Static Compliance: 12 x 10-6 cm/dyne
- Dynamic Compliance: 2 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1g
- Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
- Model: AT-VM95SP
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
- Replacement Stylus: AT-VMN95SP
- Stylus Size: 3 mil
- Type: VM Stereo Dual Magnet
- Weight: 6.1 g (0.22 oz)
- Wire Used for Coil: T.P. Copper
