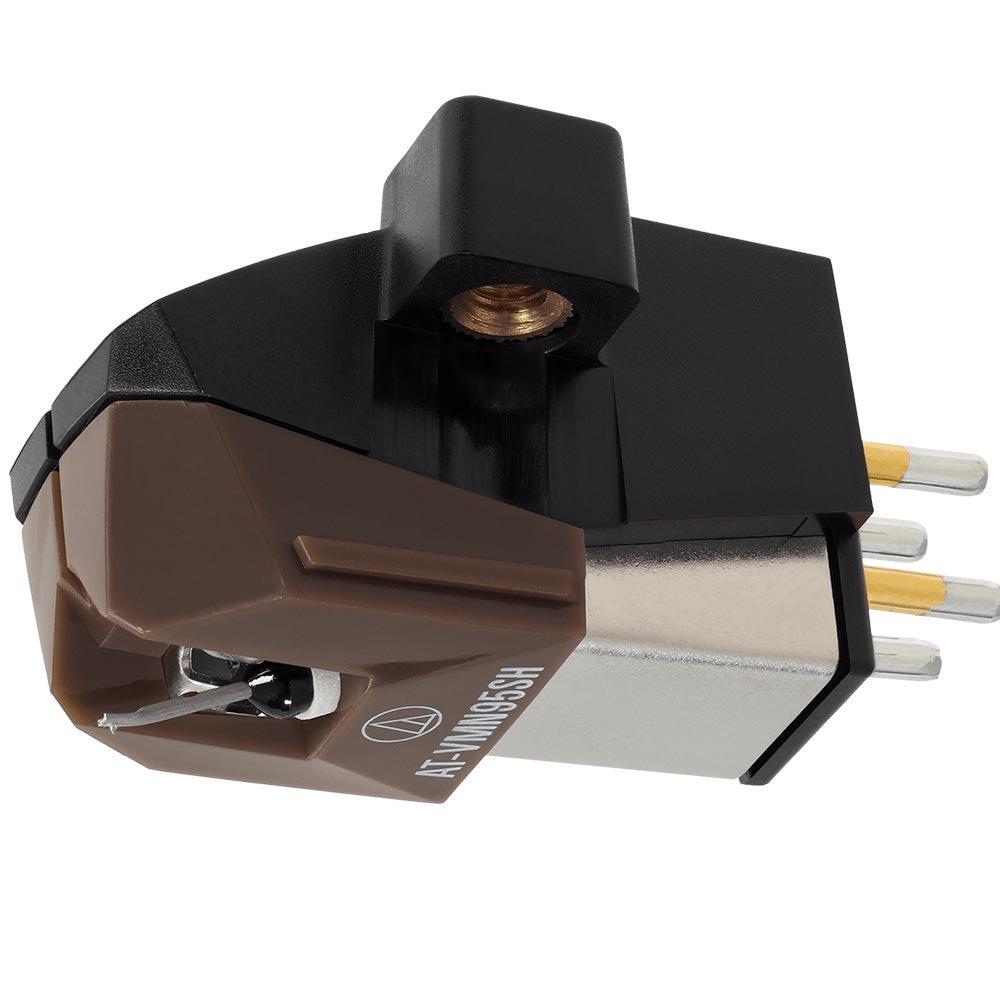

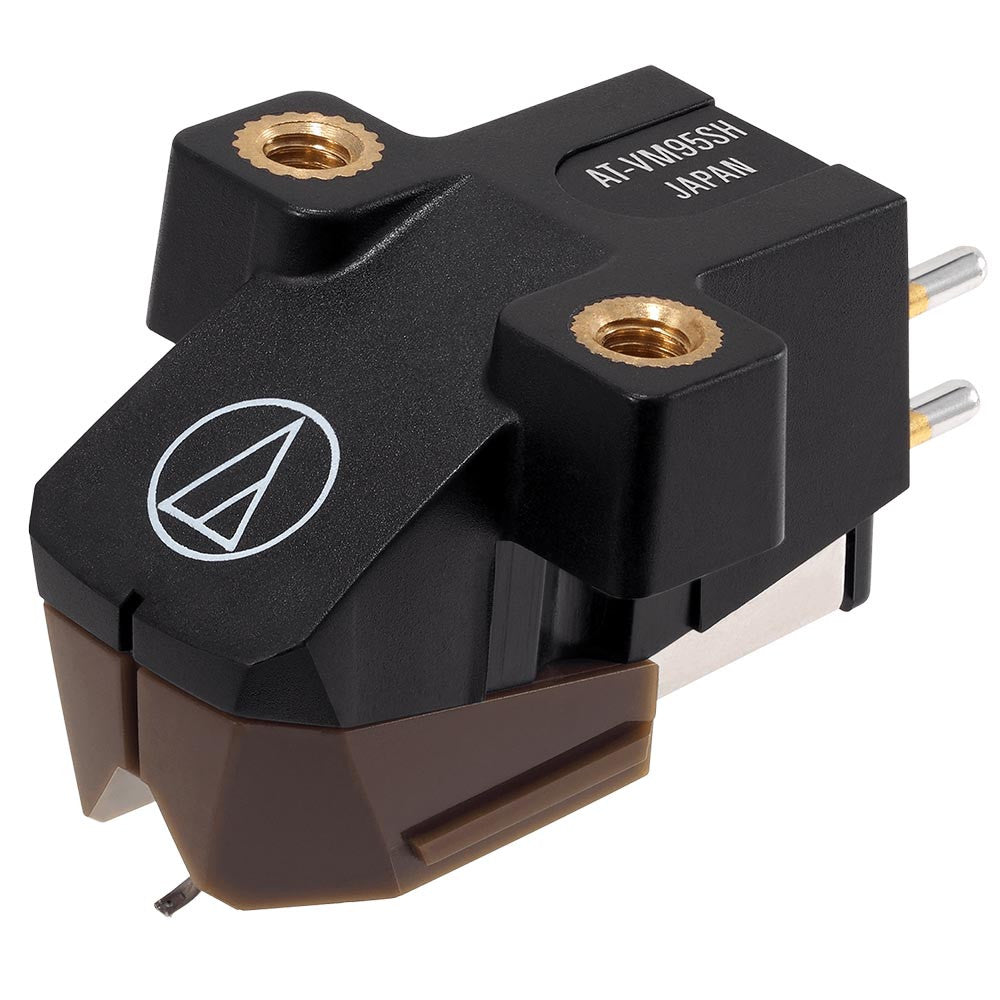

Audio-Technica AT-VM95SH Dual Moving Magnet Cartridge

Audio-Technica AT-VM95SH Dual Moving Magnet Cartridge - Audio-Technica

Overview
This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features:

• VM95 Series dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus
• Aluminum cantilever
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
• Compatible with any AT-VMN95 replacement stylus

Specifications:

• Cartridge & Stylus
• Frequency Response: 20-25,000 Hz
• Channel Separation: 23 (dB at 1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Nude square shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 1.5 dB (1 kHz)
• Stylus Shape: 2.7 x 0.26 mil Shibata
• Cantilever: Aluminum pipe
• Static Compliance: 20 x 10 – 6 cm / dyne
• Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
• Mounting: Half-inch
• Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
• Model: AT-VM95SH
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100 to 200 pF
• Replacement Stylus: AT-VMN95SH
• Stylus Size: 2.7 x 0.26mil
• Type: VM Stereo Dual Magnet
• Weight: 6.1g
• Wire Used for Coil: T.P. Copper
