Audio-Technica AT-VM95EN/H Headshell/Cartridge Combo Kit

Audio-Technica AT-VM95EN/H Headshell/Cartridge Combo Kit - Audio-Technica

Overview: AT-VM95EN/H

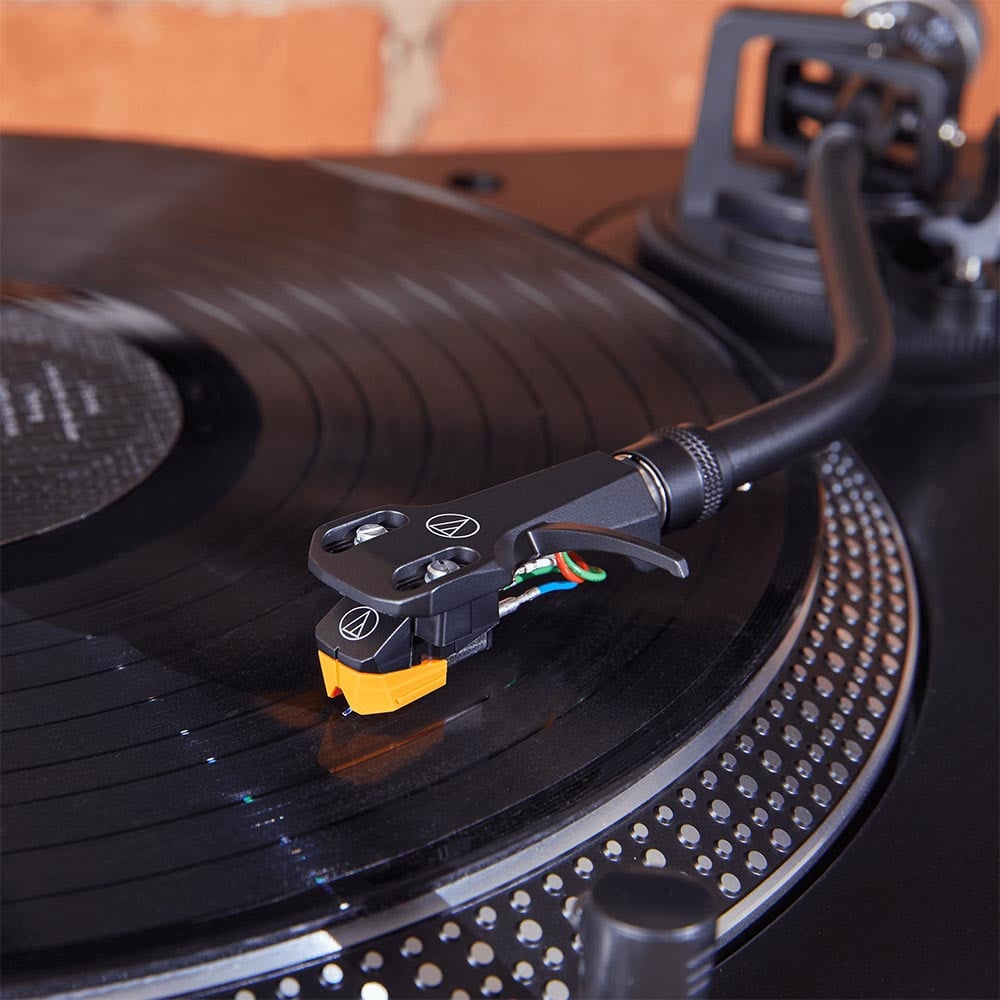

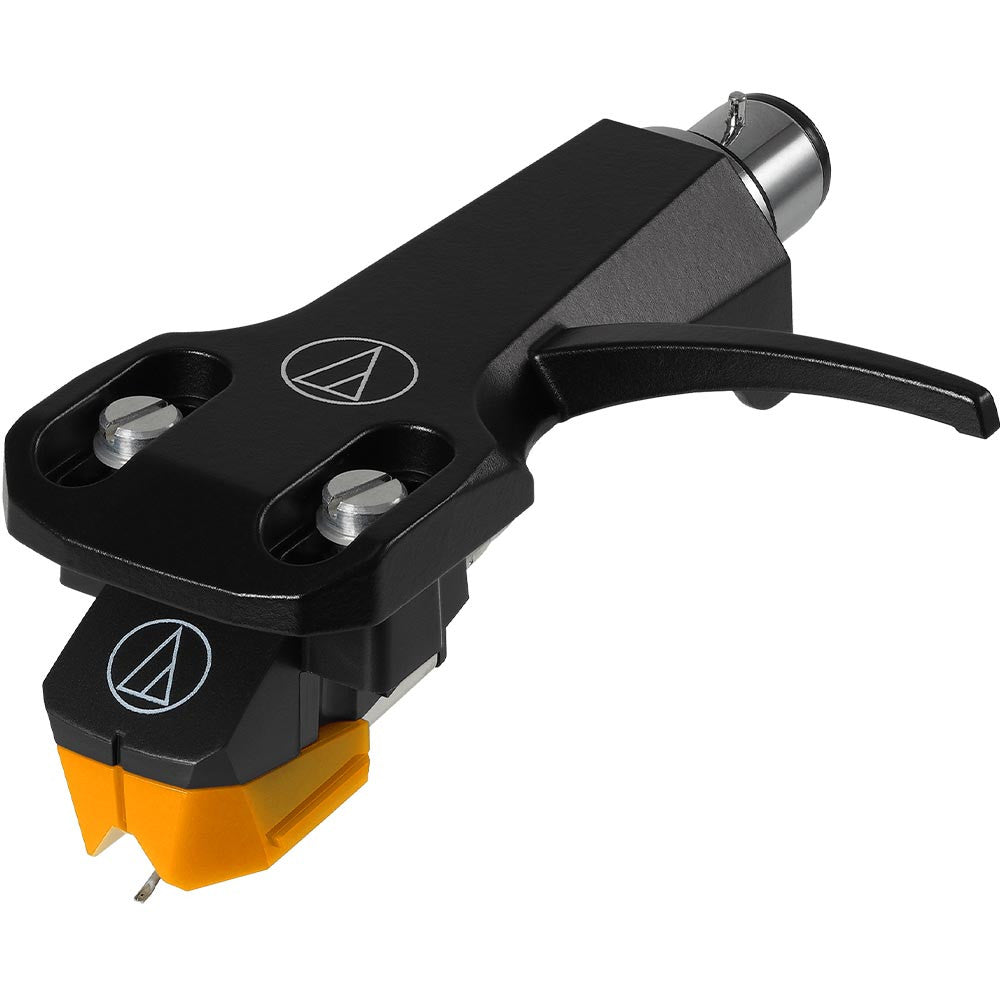

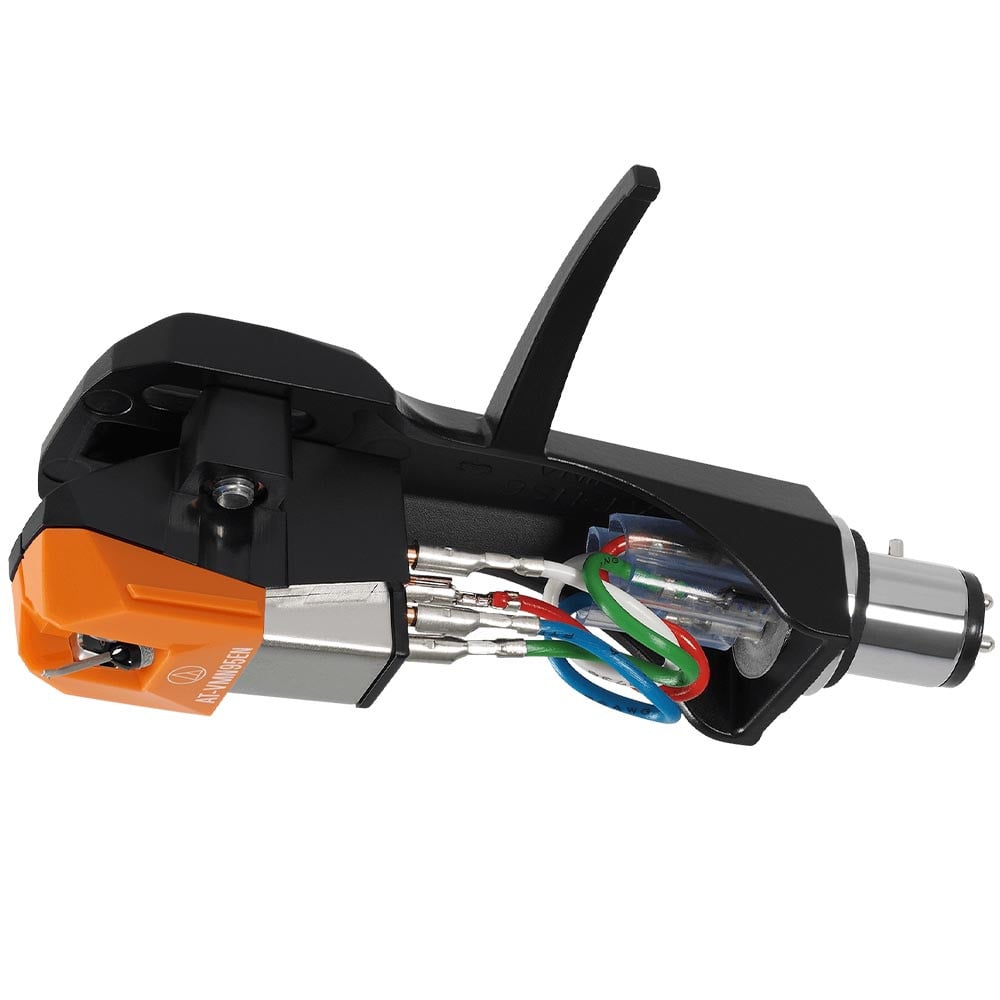

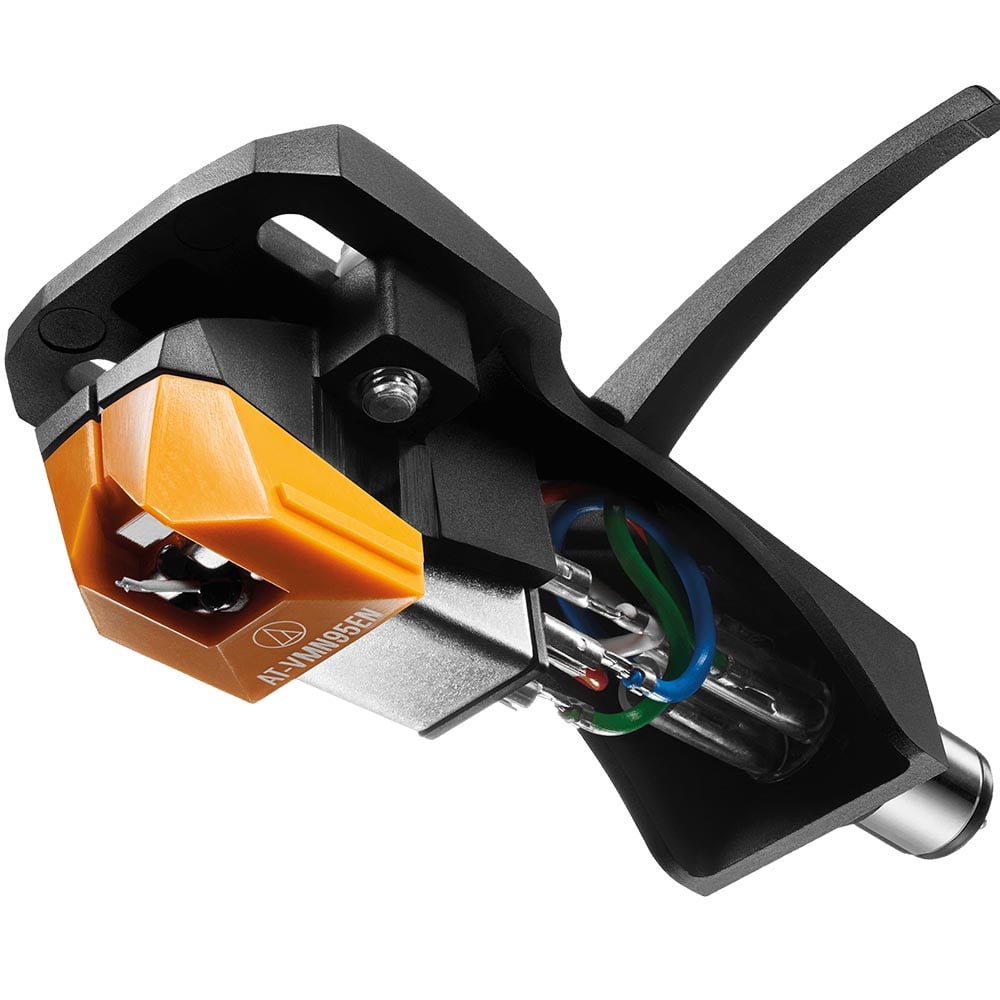

The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Features:

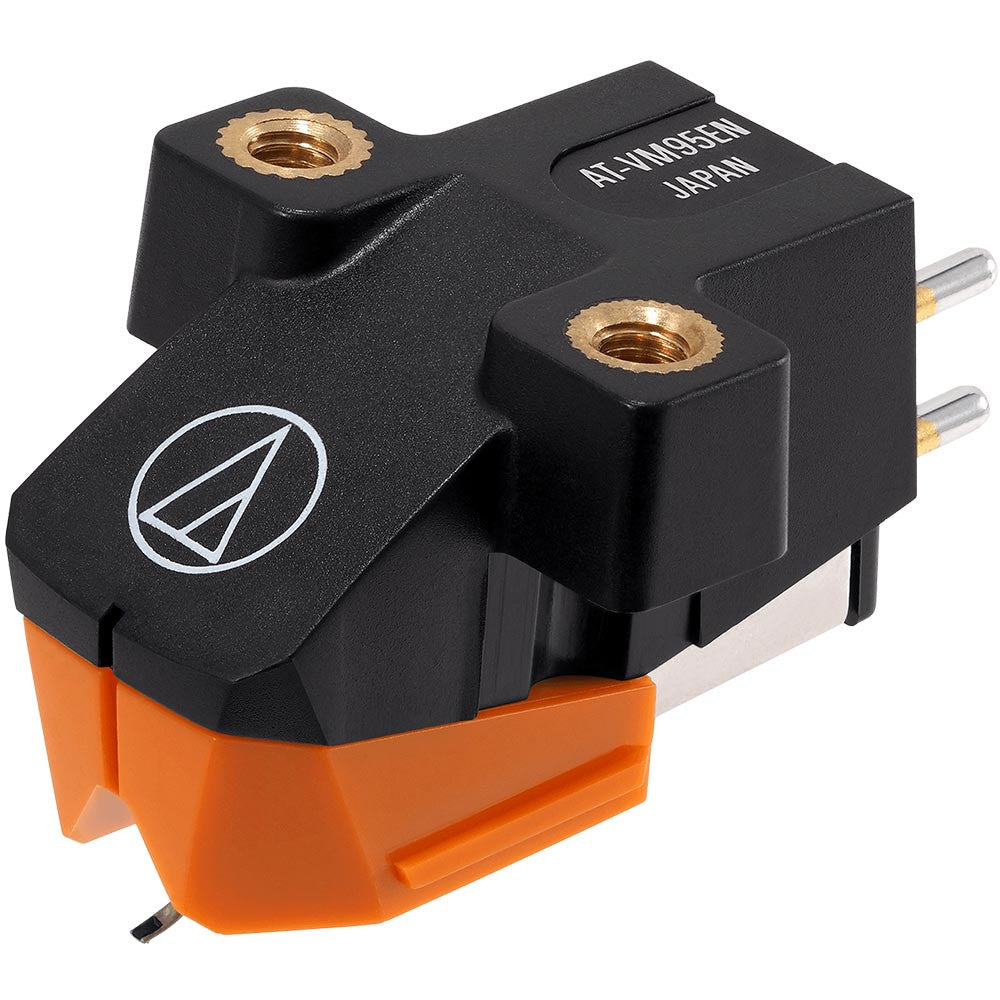

• VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
• Aluminum cantilever
• Specially wound coils increase output voltage
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
• Compatible with any AT-VMN95 replacement stylus

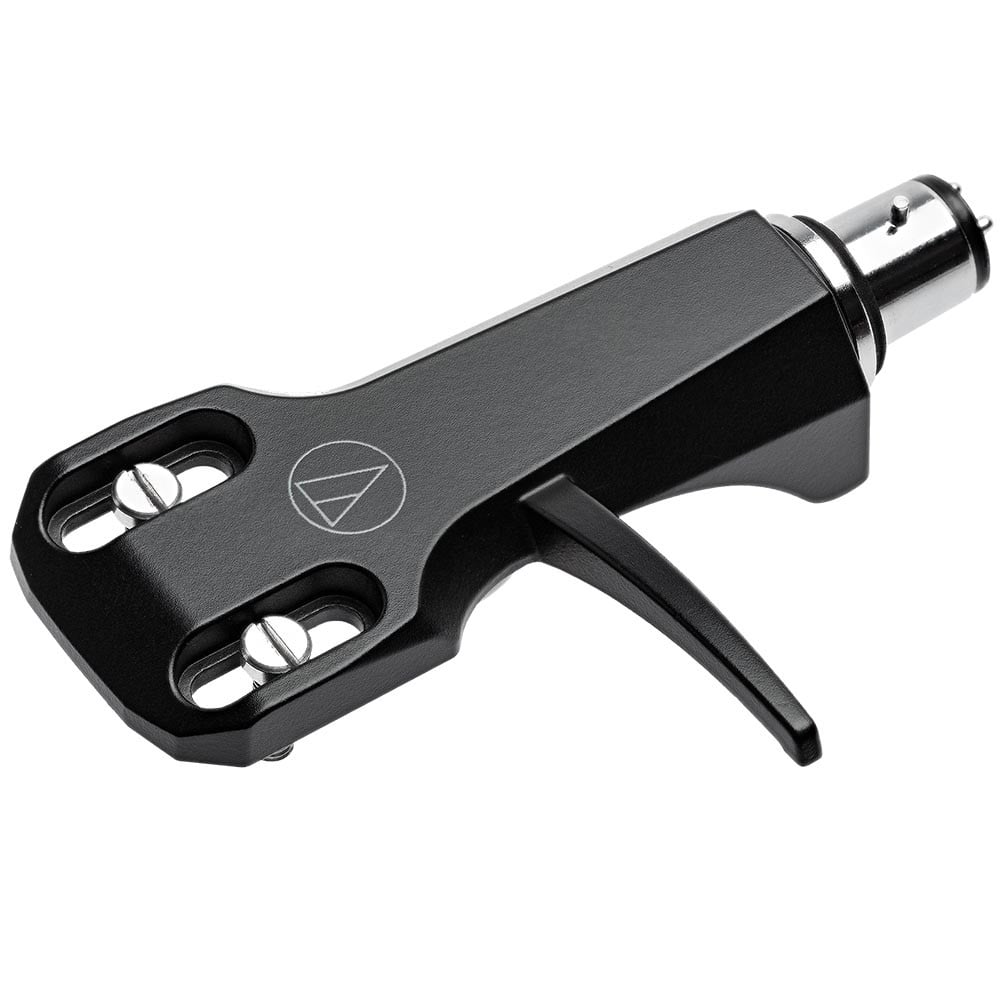

• Universal ½"-mount headshell for 4-pin turntable cartridges

Specifications:

• Cartridge & Stylus
• Frequency Response: 20-23,000 Hz
• Channel Separation: 22 (dB at 1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Nude round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 2.0 dB (1 kHz)
• Stylus Shape: 0.3 x 0.7 mil elliptical
• Cantilever: Aluminum pipe
• Static Compliance: 20 x 10 – 6 cm / dyne
• Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
• Mounting: Half-inch
• Dimensions: Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
• Model: AT-VM95EN/H
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100 to 200 pF
• Replacement Stylus: AT-VMN95EN
• Stylus Size: 0.3 x 0.7 mil
• Type: VM Stereo Dual Magnet
• Weight: Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
• Wire Used for Coil: T.P. Copper
