Nude Elliptical VMx Cartridge for Detailed, Dynamic Vinyl Playback

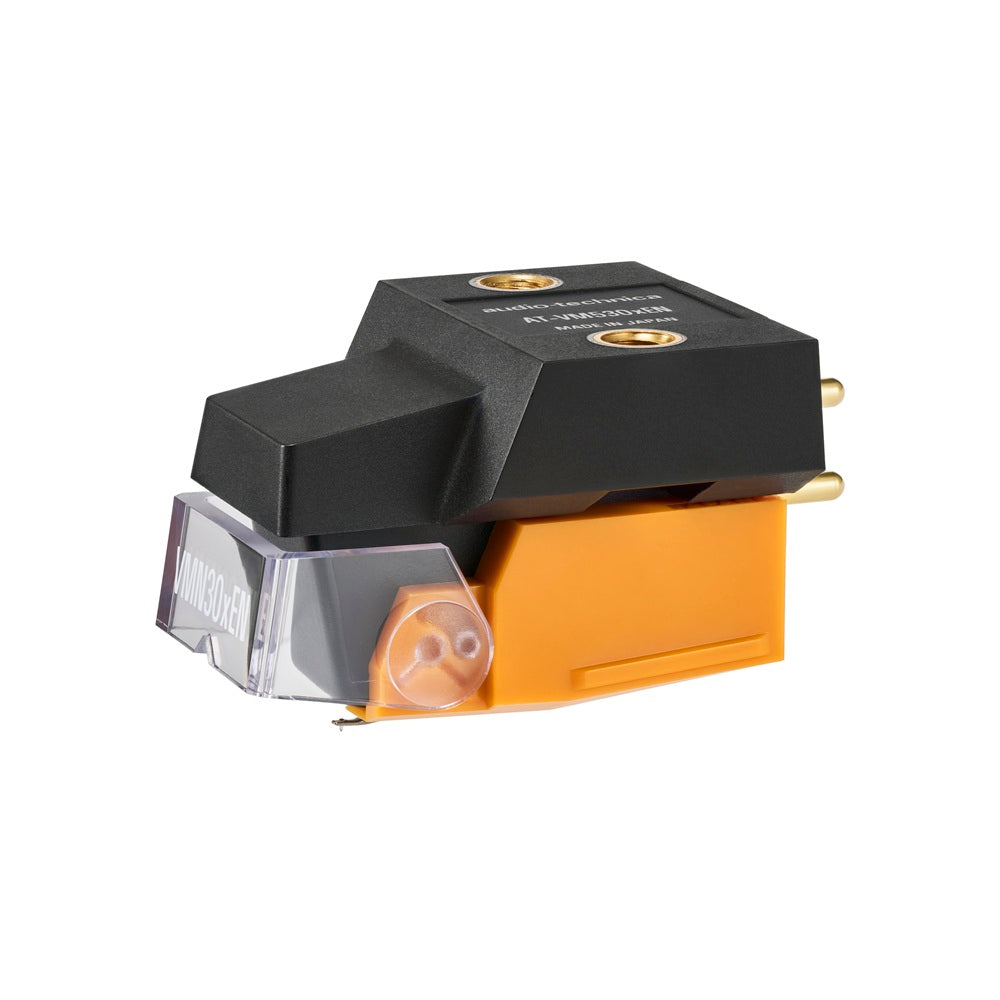

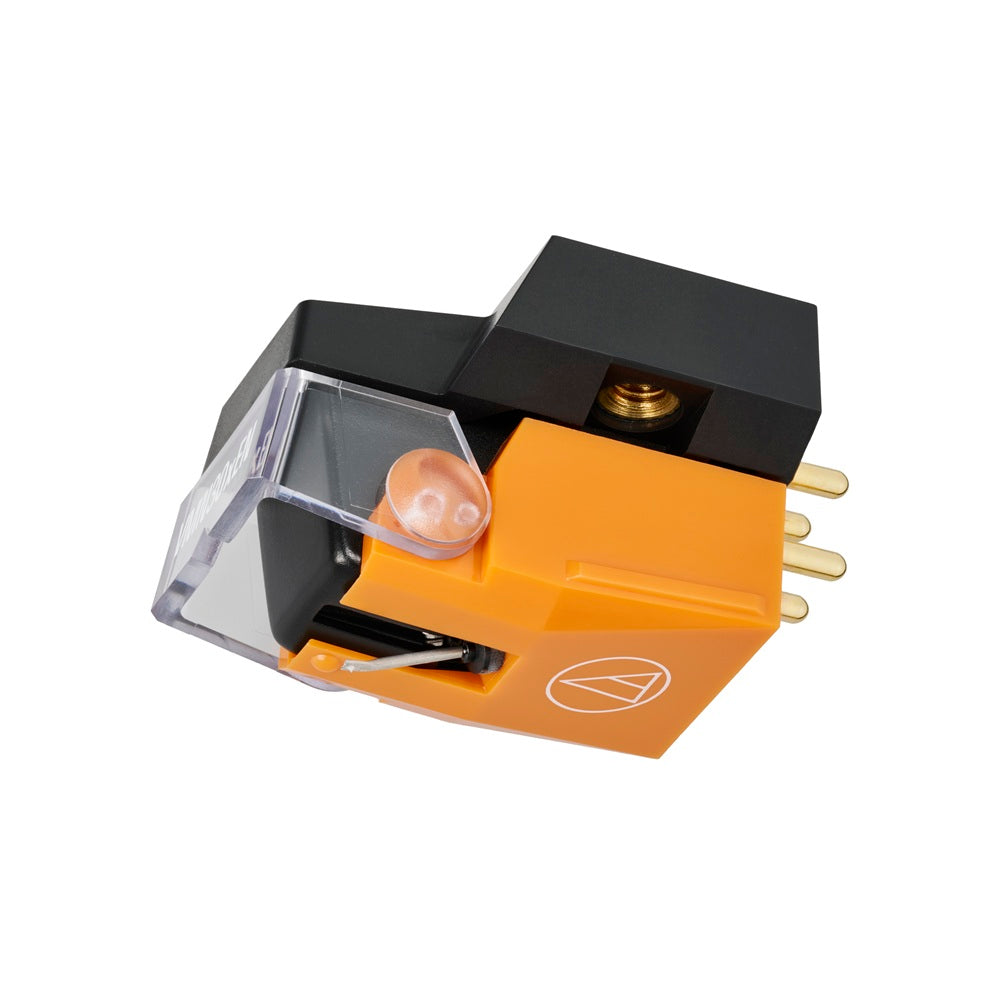

The Audio-Technica AT-VM530xEN VMx Elliptical Nude Phono MM Cartridge brings Audio-Technica’s updated VMx Dual Moving Magnet technology together with a nude elliptical stylus for precise, engaging vinyl reproduction. Its 0.3 × 0.7 mil diamond stylus is mounted directly to an aluminum-pipe cantilever, reducing moving mass compared with a bonded stylus design and allowing the cartridge to respond accurately to subtle groove modulation.
Designed as a versatile upgrade for serious vinyl systems, the AT-VM530xEN incorporates PCUHD copper coil conductors, paratoroidal coil construction, a center shielding plate and convenient threaded mounting holes. Its 3.2 mV output and conventional moving-magnet loading requirements make it compatible with a wide variety of MM phono stages, while its 20–25,000 Hz response provides extended high-frequency performance.
Highlights & Benefits
-
Nude Elliptical Stylus — The 0.3 × 0.7 mil nude elliptical diamond provides more precise groove contact than a conventional conical design while reducing moving mass compared with a bonded elliptical stylus.
-
Aluminum-Pipe Cantilever — Provides a lightweight, rigid connection between the stylus and generator for responsive tracking and accurate transient reproduction.
-
PCUHD Coil Conductors — Pure Copper Ultra High Drawability conductors are used within the VMx generator to support clean signal transmission and responsive performance.
-
Improved Stereo Separation — Audio-Technica's center shielding plate helps isolate the left and right channels and reduce electrical crosstalk.
-

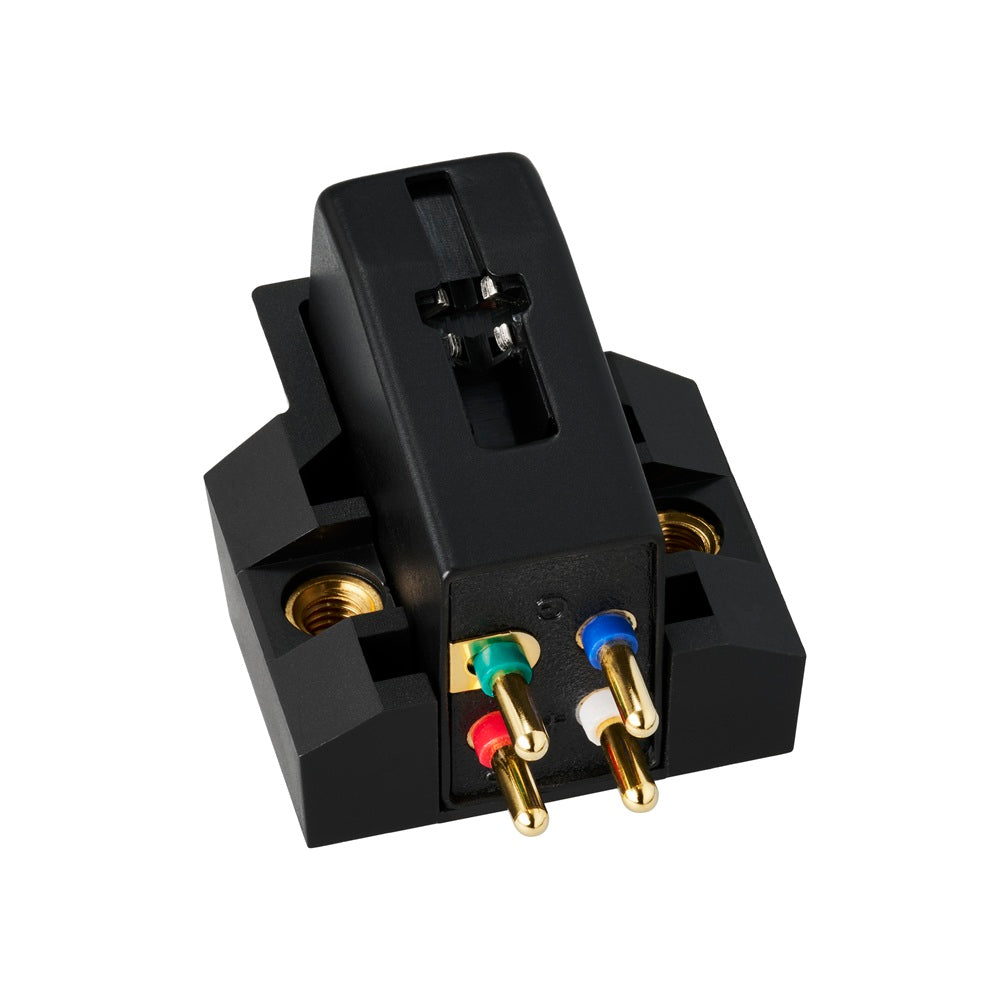

Threaded Mounting Holes — Integrated M2.6 threads allow the cartridge screws to install directly into the body, eliminating the need to handle separate mounting nuts.
Technology & Design
VMx Dual Moving Magnet Generator — Separate magnets correspond with the left and right walls of the stereo groove, closely mirroring the geometry of a record-cutting head for accurate stereo reproduction.
Nude Elliptical Diamond — Because the diamond itself forms the stylus shank rather than being bonded to a separate metal shank, moving mass is reduced. This allows the stylus assembly to respond more readily to fine groove modulation.
Paratoroidal Coil Construction — Audio-Technica's paratoroidal generator arrangement uses two coils per channel to improve generator efficiency, while a center shielding plate helps minimize electrical crosstalk between channels.
Interchangeable VMx Stylus Platform — The cartridge uses the AT-VMN30xEN replacement stylus and belongs to Audio-Technica's interchangeable VMx family, providing a convenient path for stylus replacement or compatible stylus-profile upgrades.
FAQ — Audio-Technica AT-VM530xEN
What is the advantage of the nude elliptical stylus?
A nude stylus uses a diamond that is mounted directly to the cantilever instead of attaching a diamond tip to a separate metal shank. The lower moving mass helps the stylus respond more accurately to groove modulation, while the elliptical profile provides more precise groove contact than a conventional conical stylus.
What tracking force should I use with the AT-VM530xEN?
Audio-Technica specifies a tracking-force range of 1.8 to 2.2 grams, with 2.0 grams as the standard recommended setting.
What replacement stylus fits the AT-VM530xEN?
The direct replacement is the Audio-Technica AT-VMN30xEN nude elliptical stylus. The VMx platform also supports compatible interchangeable stylus options within the series.
What type of phono preamp does the AT-VM530xEN require?
The AT-VM530xEN is a moving-magnet cartridge designed for an MM phono input or compatible MM phono preamplifier. Audio-Technica recommends a 47 kΩ load impedance and 150–250 pF load capacitance.
