Audiophile Dual Moving Magnet cartridge • Bonded 0.6 mil conical diamond stylus • Para-toroidal coil generator with laminated core • Center shield plate for electrical channel isolation • Durable aluminum pipe cantilever • Low-resonance polymer housing with threaded M2.6 mounting inserts

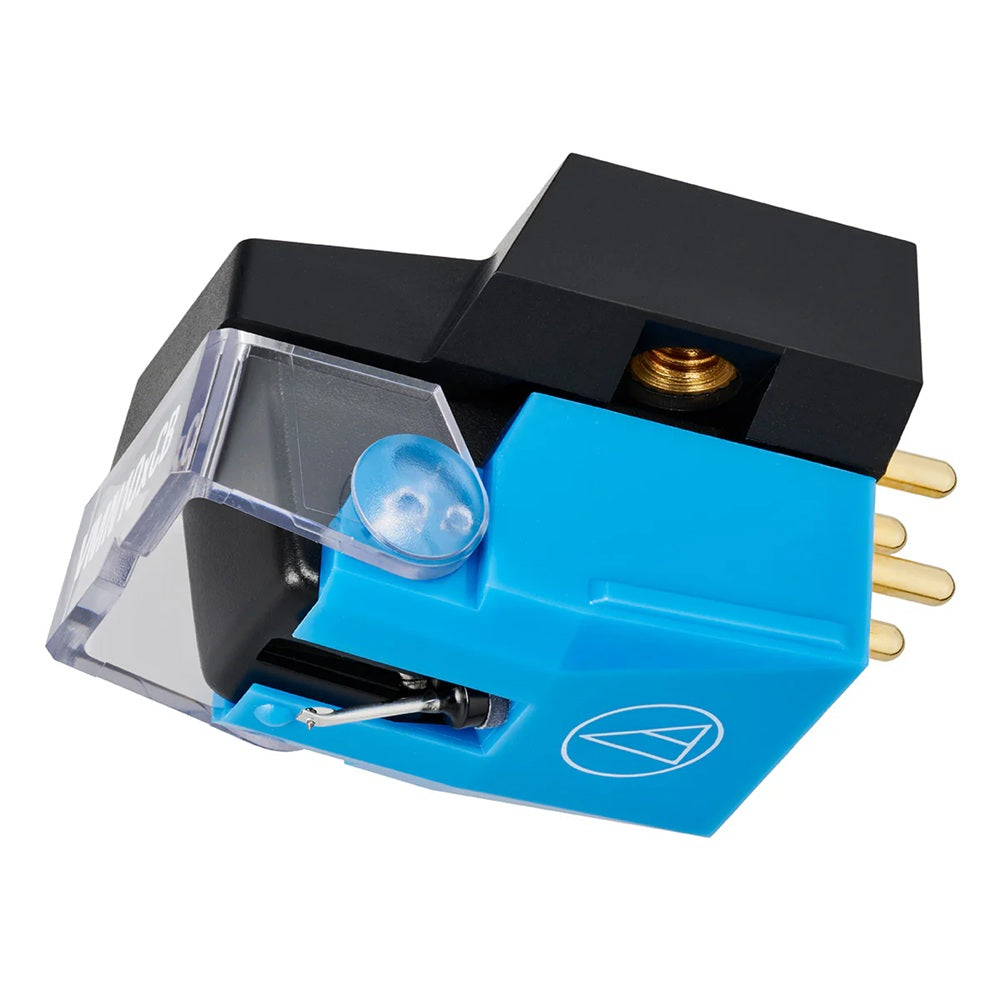

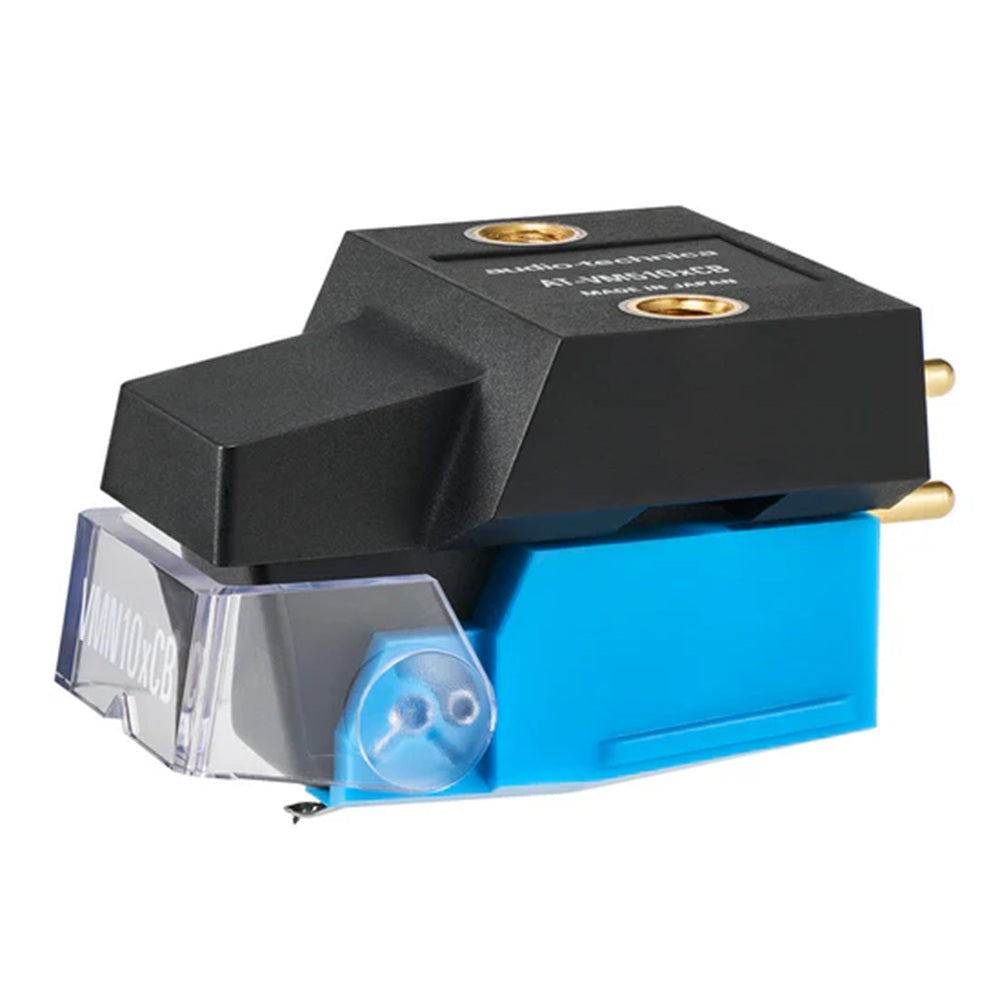

The Audio-Technica AT-VM510xCB VMx Dual Moving Magnet Conical Cartridge combines the robust tracking stability of a spherical diamond profile with the refined electrical architecture of Audio-Technica’s advanced VM cartridge platform. Outfitted with a 0.6 mil bonded conical stylus mounted to an aluminum cantilever, it sits centrally within vinyl grooves to deliver forgiving tracking across vintage, warped, or lightly scratched records. Internally, a dual V-shaped magnet structure mirrors the original stereo cutting head, while para-toroidal coils wound around laminated iron cores and a permalloy central shield plate maintain electrical isolation between left and right channels for a wide, uncompressed stereo soundstage.
Key Features & Innovations
Dual Moving Magnet (V-Twin) generator — positions two independent magnets in an inverted V-formation aligned directly with left and right 45-degree stereo record grooves, enhancing channel separation and transient precision.
Bonded 0.6 mil conical diamond stylus — spherical tip profile contacts the center of the groove walls, making it exceptionally durable, forgiving of surface imperfections, and less sensitive to slight tonearm alignment variations.
Para-toroidal coil construction — uses continuous winding around laminated cores to minimize magnetic flux leakage, resulting in high electromagnetic conversion efficiency and low distortion.
Internal permalloy center shielding plate — isolates left and right coil assemblies internally, suppressing electrical crosstalk and driving channel separation beyond 24 dB at 1 kHz.

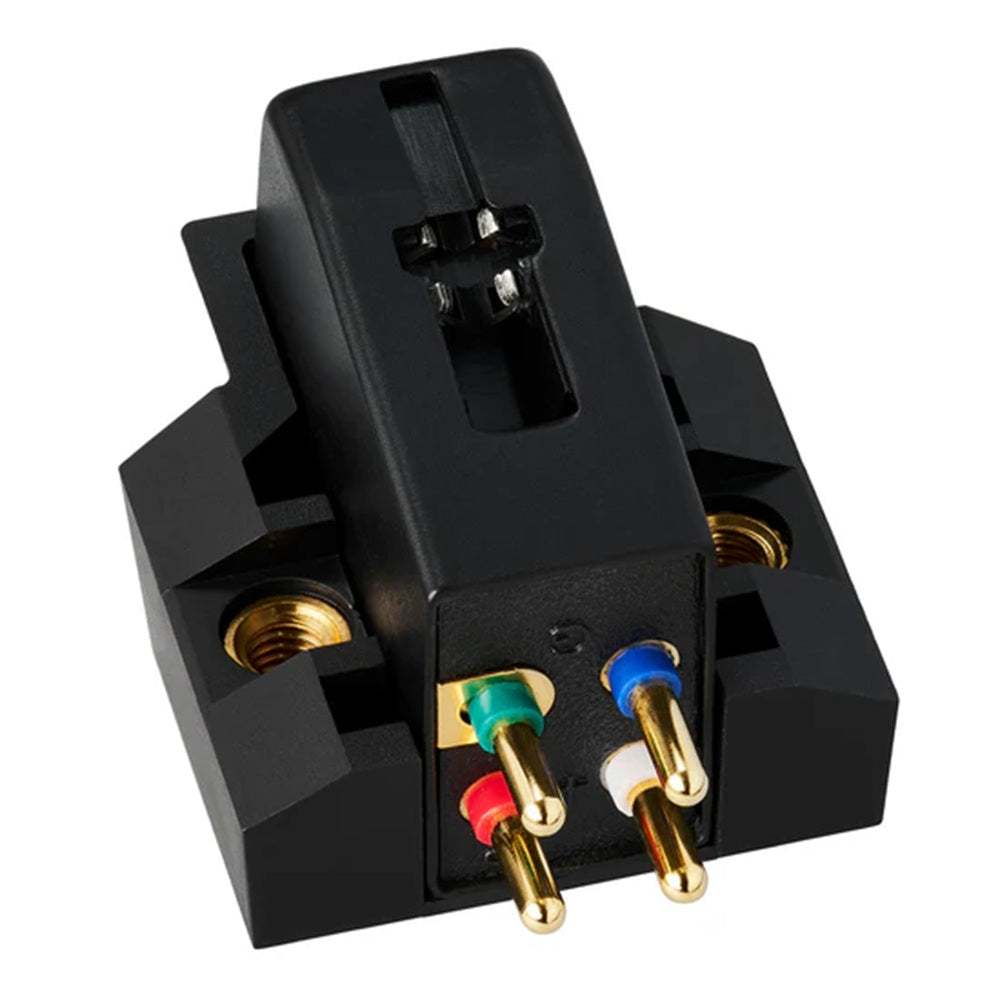

Threaded M2.6 cartridge body inserts — upgraded low-resonance polymer body features integrated threaded inserts, allowing clean top-down mounting to any standard headshell without managing loose nuts.
Modular VM stylus upgrade path — shares interchangeable body geometry with the VM family, allowing straightforward drop-in upgrades to elliptical, MicroLine, Shibata, or 78 RPM styli without cartridge removal.
FAQ — Audio-Technica AT-VM510xCB VMx Dual MM Conical Cartridge
Why choose a conical stylus over an elliptical profile?
The 0.6 mil conical stylus on the Audio-Technica AT-VM510xCB contacts the groove wall higher up than fine-line or elliptical diamonds, bypassing scratches, dust, or groove wear located deeper in older records. This makes it a preferred choice for vintage vinyl, thrift-store finds, 45 RPM singles, and robust day-to-day playback.
How does the VM500 body differ from the entry-level VM95 body?
The VM500-tier generator incorporates para-toroidal coils on laminated cores and an internal permalloy center shield plate between the channels, delivering wider frequency linearity, lower electrical noise, and superior stereo separation compared to the straight-coil layout of the VM95 series.
Can I upgrade the stylus on this cartridge later?
Yes. The AT-VM510xCB body accepts any Audio-Technica VM-series replacement stylus, including the VMN20EB (elliptical), VMN30EN (nude elliptical), VMN40ML (MicroLine), and VMN50SH (Shibata), making performance upgrades completely seamless.
What is the recommended vertical tracking force (VTF)?
The recommended vertical tracking force is 2.0 grams, with an acceptable operational range of 1.8 to 2.2 grams.
