Audio-Technica AT-LP7 Fully Manual Belt-Drive Turntable (Demo)

$779.00
$999.00
$779.00
Availability: In Stock
Have Questions or Need Advice?
Audiolab Advisor
Consult with a System Expert
From our PA Showroom

Free Shipping, no minimum!

60-Day Returns

Have a Trade-In? Fill Out Our Form.

AUDIO-TECHNICA

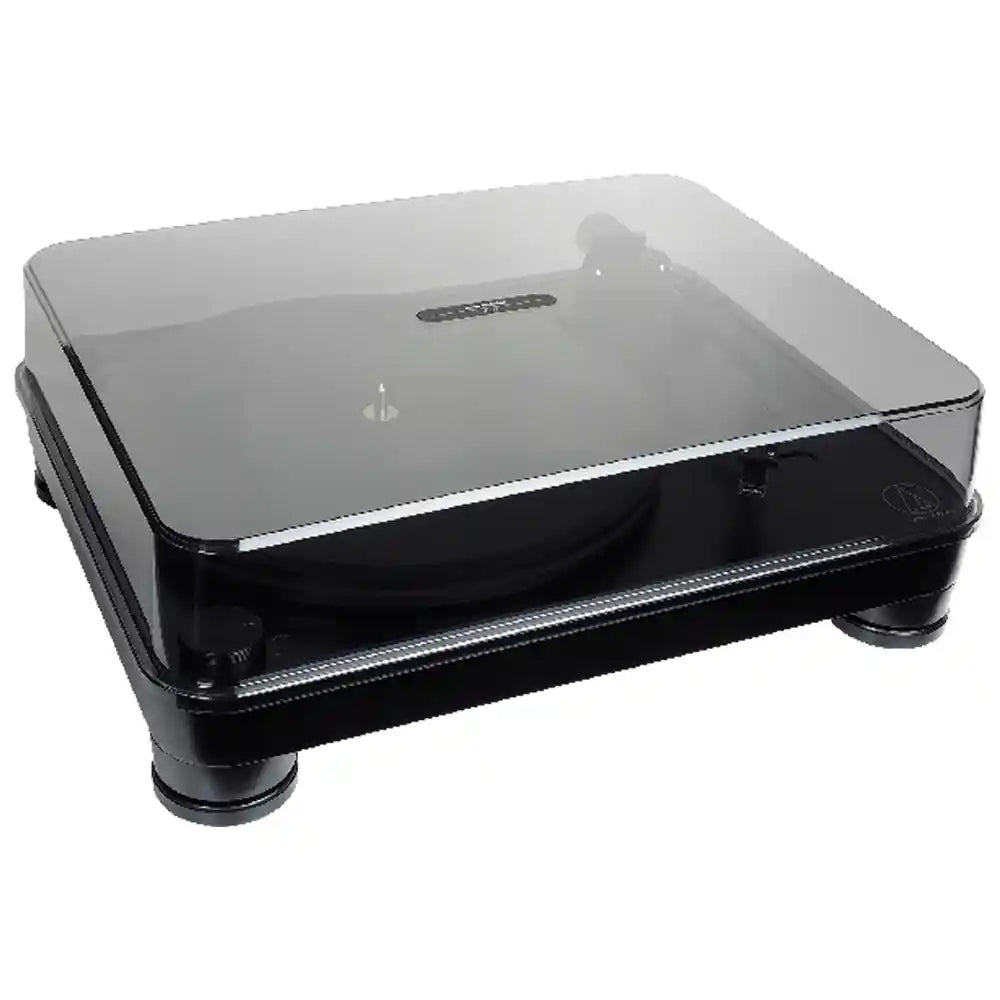

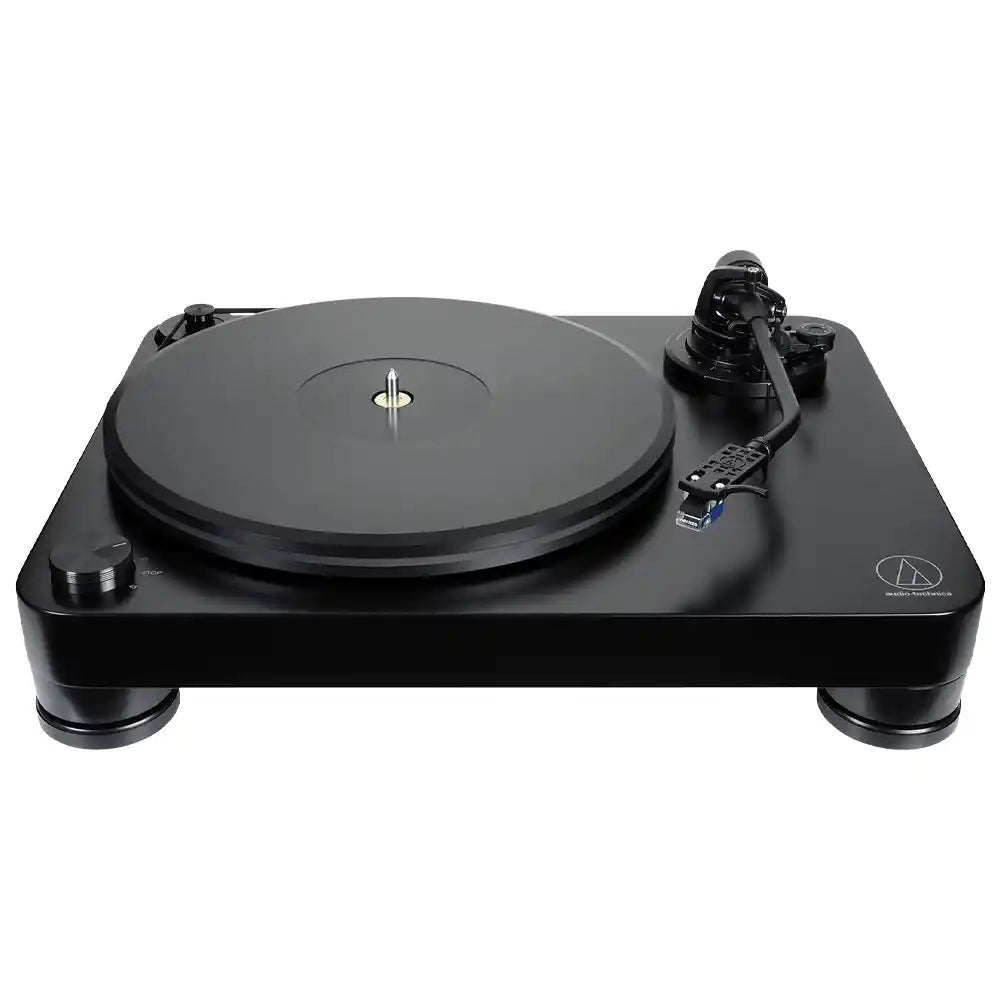

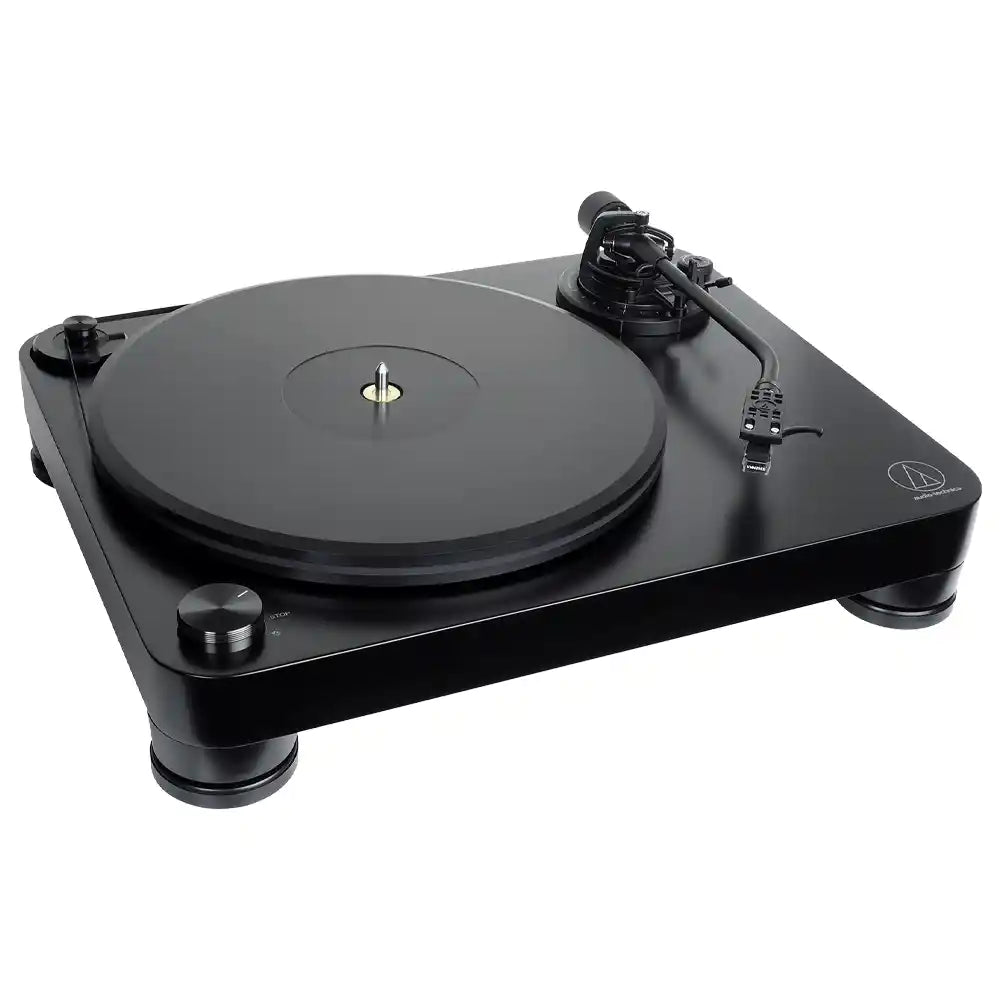

Audio-Technica AT-LP7 Fully Manual Belt-Drive Turntable

Fully Manual Belt Drive • 33-1/3 & 45 RPM • VM520EB Dual Moving Magnet Cartridge • J-Shaped Tonearm • Adjustable VTA • 20mm POM Platter • 40mm MDF Chassis • Built-In MM/MC Phono Preamp

Audiophile Belt-Drive Turntable with VM Cartridge and MM/MC Phono Stage

The Audio-Technica AT-LP7 Fully Manual Belt-Drive Turntable is designed around Audio-Technica’s long history in phono cartridge engineering, combining a carefully isolated belt-drive system with a substantial chassis, precision tonearm and premium VM-series cartridge. Its sensor-monitored DC motor maintains accurate platter rotation at 33-1/3 or 45 RPM, while a 20mm-thick polyoxymethylene platter and 40mm MDF chassis help suppress unwanted resonance and low-frequency acoustic feedback.

The supplied VM520EB Dual Moving Magnet cartridge is mounted to Audio-Technica’s lightweight AT-HS10 headshell and uses a 0.3 × 0.7 mil bonded elliptical stylus. A static-balanced J-shaped tonearm with metallic gimbal suspension, precision bearings, adjustable tracking force, anti-skate and height adjustment provides extensive cartridge setup flexibility. The built-in switchable phono stage supports both moving-magnet and moving-coil cartridges, allowing the AT-LP7 to connect directly to systems with or without a dedicated phono input.

Highlights & Benefits

  • Sensor-Controlled Belt Drive — The DC motor uses a speed-sensor system to maintain accurate platter rotation while isolating motor vibration from the record surface.
  • VM520EB Dual Moving Magnet Cartridge — Factory-installed VM-series cartridge provides excellent channel separation and makes stylus upgrades easy within Audio-Technica’s VM replacement-stylus family.
  • 20mm Polyoxymethylene Platter — The thick anti-resonance POM platter provides substantial mass and damping without requiring a separate conventional platter mat.
  • Adjustable J-Shaped Tonearm — Metallic gimbal suspension, precision bearings, adjustable anti-skate and up to 6mm of tonearm-height adjustment support accurate cartridge alignment and tracking.
  • Built-In MM/MC Phono Preamp — Selectable moving-magnet and moving-coil modes allow direct connection to line-level inputs or bypass operation with an external phono stage.

Technology & Design

40mm MDF Anti-Resonance Chassis — The substantial medium-density fiberboard plinth provides a rigid, well-damped foundation designed to reduce low-frequency feedback and mechanical vibration.

Precision J-Shaped Tonearm — Inspired by classic Audio-Technica designs from the 1960s and 1970s, the static-balanced J-shaped arm uses a metallic gimbal suspension and precision bearings to minimize tracking error.

VM-Series Cartridge Architecture — The included VM520EB uses Audio-Technica’s Dual Moving Magnet design, positioning separate magnets to correspond with the left and right groove walls for accurate stereo reproduction.

Cartridge Upgrade Flexibility — The removable universal headshell, adjustable tonearm height and broad supported cartridge-weight range allow the turntable to accommodate many compatible MM and MC cartridges beyond the factory-installed VM520EB.

FAQ — Audio-Technica AT-LP7

Does the AT-LP7 have a built-in phono preamp?

Yes. The AT-LP7 includes a switchable built-in phono preamplifier with selectable moving-magnet and moving-coil modes. It can also output a conventional phono-level signal for use with an external phono stage.

What cartridge comes with the AT-LP7?

The AT-LP7 is supplied with an Audio-Technica VM520EB Dual Moving Magnet stereo cartridge mounted to an AT-HS10 lightweight headshell. The cartridge uses a 0.3 × 0.7 mil bonded elliptical stylus.

Can I install a different cartridge on the AT-LP7?

Yes. The removable headshell and adjustable tonearm height make cartridge changes straightforward. Audio-Technica specifies an applicable cartridge-and-headshell weight range of 15 to 20 grams.

Is the original AT-LP7 still a current model?

Audio-Technica’s U.S. product page currently lists the original AT-LP7 as unavailable. Audio-Technica now offers the newer AT-LP7X as the current model in this position of its turntable lineup.

Why Buy From Us

  • Authorized Audio-Technica Dealer
  • 5% Reward Points on Every Purchase
  • Expert Turntable, Cartridge and Phono-Stage Matching Assistance
  • Professional Turntable Setup and Two-Channel System Installation Available

Audio-Technica AT-LP7 Specifications

Product Type
Fully manual belt-drive turntable
Operation
Fully manual
Motor
DC motor with speed-sensor system
Drive Method
Belt drive
Speeds
33-1/3 RPM & 45 RPM
Platter
20mm-thick polyoxymethylene (POM)
Wow & Flutter
<0.08% WRMS
33 RPM at 3kHz
Signal-to-Noise Ratio
>60dB
Chassis
40mm-thick MDF
Tonearm Type
Static-balanced J-shaped tonearm
Tonearm Suspension
Metallic gimbal with precision bearings
Effective Tonearm Length
247 mm
Overhang
17 mm
Maximum Tracking Error
<2.5°
Tonearm Height Adjustment
0–6 mm
Tracking Force Adjustment
0–2.5 g
Anti-Skate
Adjustable
Applicable Cartridge Weight
15–20 g including headshell
Included Headshell
Audio-Technica AT-HS10
Headshell Weight
10 g
Included Cartridge
Audio-Technica VM520EB Dual Moving Magnet
Stylus Shape
0.3 × 0.7 mil bonded elliptical
Phono Output
4.5 mV nominal at 1kHz, 5 cm/sec
Line Output — MM
280 mV nominal at 1kHz, 5 cm/sec
Built-In Phono Preamp
Switchable MM / MC
MM Preamp Gain
36dB nominal, RIAA equalized
MC Preamp Gain
56dB nominal, RIAA equalized
Output Connection
Detachable stereo RCA
Power Requirements
100–240V AC, 50/60Hz, 0.6A max.
Dimensions
17.72" W × 13.86" D × 6.18" H
450 × 352 × 157 mm
Weight
18.30 lbs. / 8.3 kg
Without dust cover
Current U.S. Availability
Unavailable from Audio-Technica
Brand
Audio-Technica

What's in the Box

  • 1 × Audio-Technica AT-LP7 Fully Manual Belt-Drive Turntable
  • 1 × VM520EB Dual Moving Magnet Cartridge
  • 1 × AT-HS10 Lightweight Headshell
  • 1 × Dual RCA Male-to-Male Stereo Cable
  • 1 × 45 RPM Adapter
  • 1 × Dust Cover
  • 1 × Power Cord
  • Product Documentation
