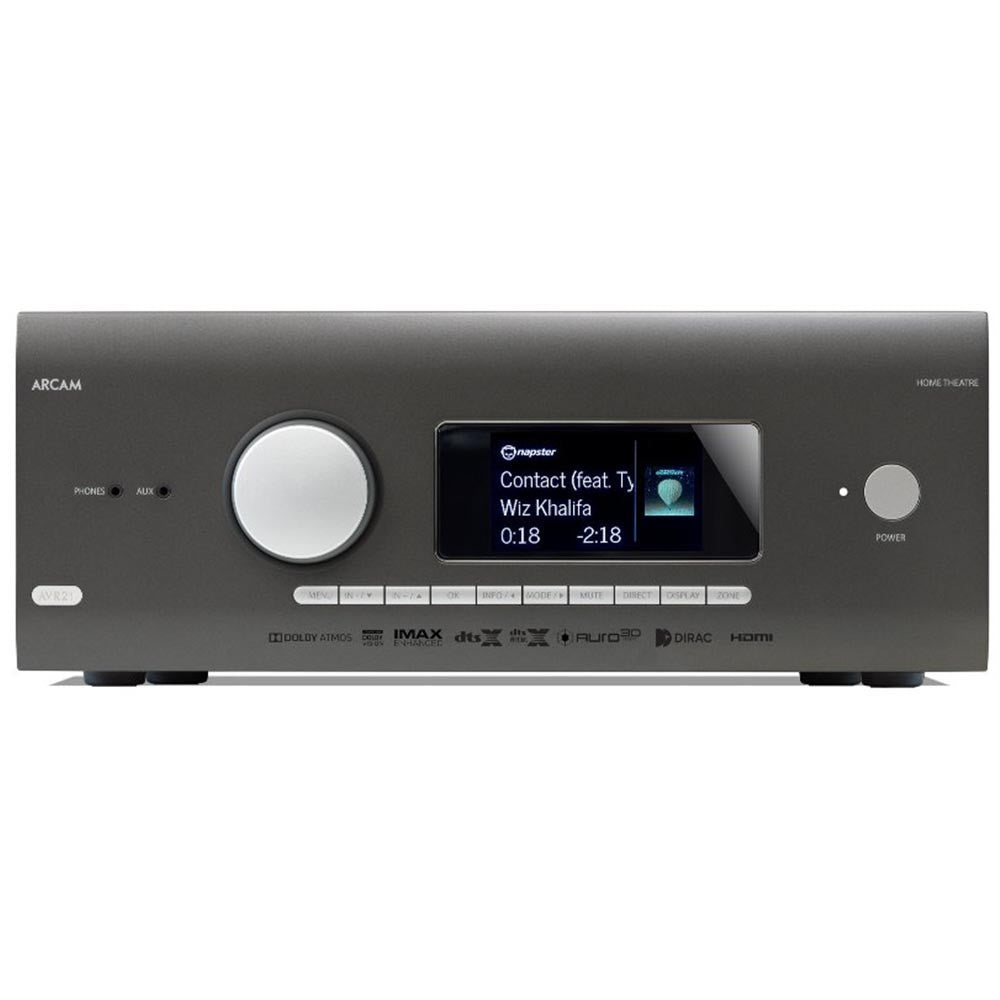

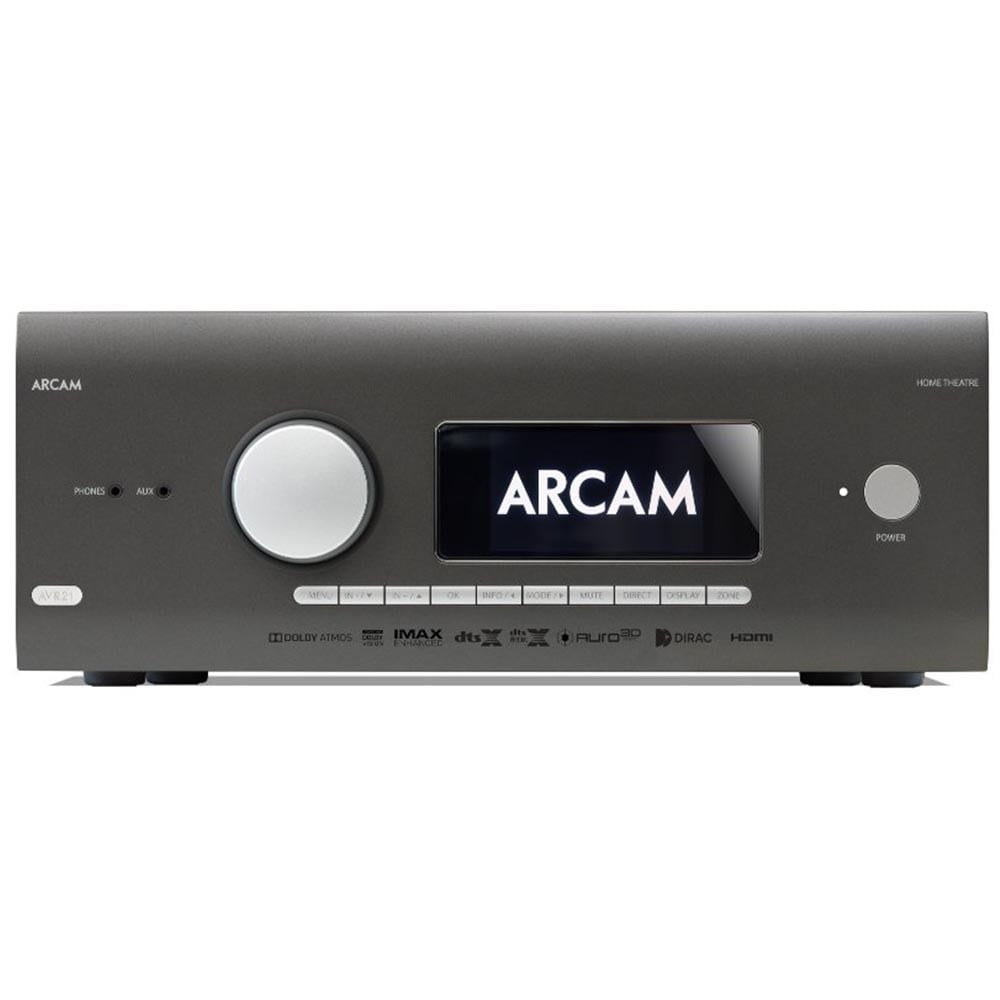

Arcam AVR21 HDMI 2.1 High Power Class AB AV Receiver

Arcam AVR21 HDMI 2.1 High Power Class AB AV Receiver - Arcam

The Arcam AVR21 is a High Power Class AB AV Receiver
The AVR21 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR21 can deliver incredible theatre experiences.

The Arcam AVR21 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR21 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live room optimization included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Features:

• 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding

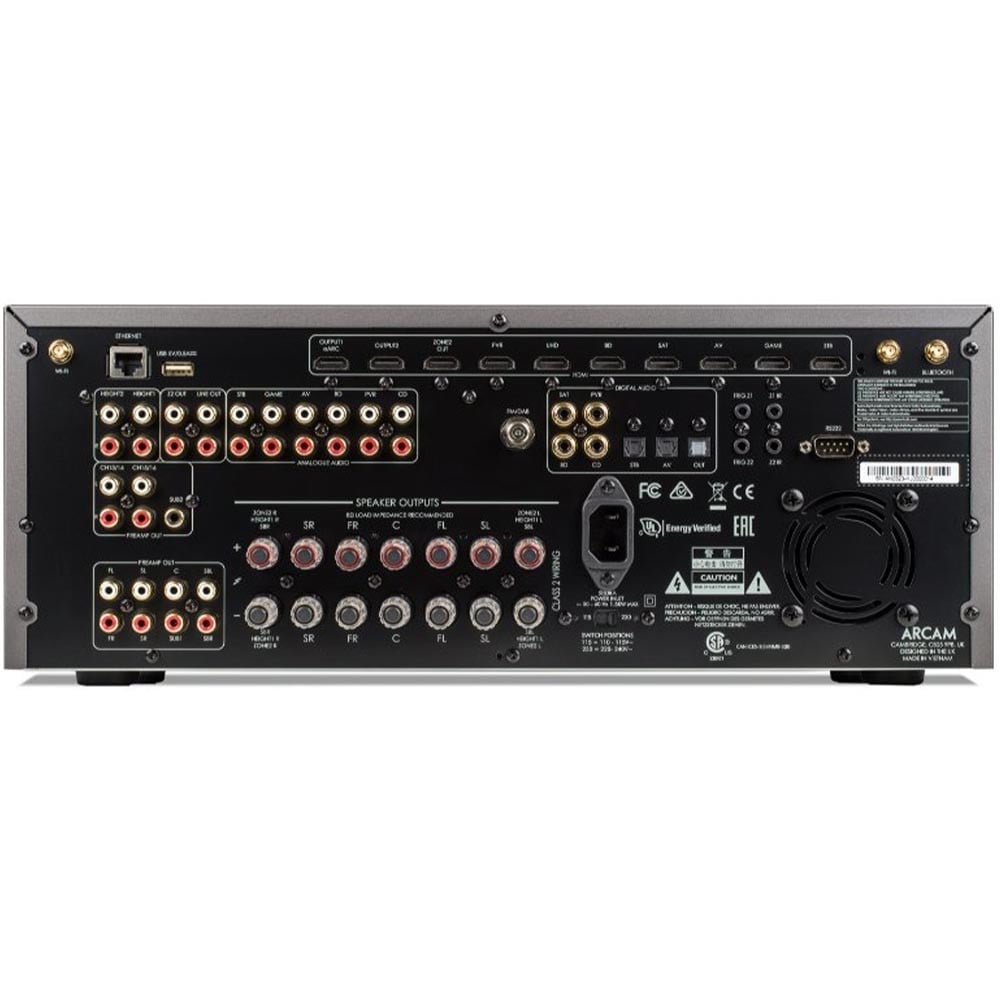

• 7 HDMI inputs, 3 HDMI outputs including Zone 2, eARC compatible
• HDMI 2.1 with HDCP2.3
• All inputs support 8K@60fps and 4K@120fps
• Supports Dolby Vision, HDR10+, HDR10 and HLG
• Includes Dirac Live® room correction
• Ready for Dirac Live Bass Control*
• Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
• 7 Channels of high power Class AB amplification
• Wi-Fi / Ethernet, RS232 and IR control
• Google Chromecast® built-in for streaming audio
• Apple® Airplay2
• Bluetooth aptX®HD
• Free MusicLife iOS and Android UPnP app
• Supports MQA
• Roon Ready
• * purchase a license at https://www.dirac.com/online-store/

Specs

Continuous power output, per channel, 8Ω/4Ω

• 2 channels driven, 20Hz - 20kHz, <0.02% THD: 110W/175W
• 2 channels driven, 1kHz, 0.2% THD: 125W/190W
• 7 channels driven, 1kHz, 0.2% THD: 90W/110W
• Residual noise & hum (A-wtd): <0.15mV

Stereo Line Inputs

• Maximum input: 4.5V rms
• Nominal sensitivity: 1V, 2V, 4V (user adjustable)
• Input impedance: 47kΩ
• Signal/noise ratio (A-wtd ref 100W) normal/stereo direct: 100dB/110dB
• Frequency response: 20Hz—20kHz ± 0.2dB

Preamplifier Outputs

• Nominal output level: 1V RMS (max. 5V RMS)
• Output impedance: 560Ω
• THD+N (20Hz—20kHz): –100dB

Headphone Output

• Maximum output level into 32Ω: 5Vrms
• Output impedance: <100Ω

General

• Mains voltage: 110–120V or 220–240V, 50–60Hz
• Power consumption (maximum): 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
• Power consumption (idle, typical): 100W (Thermal dissipation approx. 350 BTU/hour)
• Power consumption (standby): <0.5W
• Dimensions W x D (including speaker terminals) x H (including feet): 433 x 425 x 171mm
• Weight (net): 16.6kg
• Weight (packed): 19.9kg
• Supplied accessories: Mains lead, Remote control with 2 x AAA batteries, Quick Start Guide (full manual online), DAB/FM aerial, 3 x Wi-Fi/Bluetooth antennas, Calibration microphone, USB cable

What to expect in the box:
