Flagship 16-channel AV preamplifier/processor • Dolby Atmos, DTS:X & Auro-3D • Dirac Live Room Correction • ESS Sabre DAC architecture • 6.5" color display
The Arcam AVP45 AV Processor serves as the ultimate command center for modern high-performance home theater separates. Designed in Cambridge, UK, it provides 16 channels of uncompromised immersive audio processing, high-resolution DAC conversion, Dirac Live calibration, and full 8K HDMI 2.1 video switching to drive reference-grade multi-channel power amplifiers with absolute signal purity.
Key Features & Innovations
16-channel immersive audio processing — the Arcam AVP45 AV Processor offers 16 assignable pre-out channels supporting Dolby Atmos, DTS:X, Auro-3D, and IMAX Enhanced layouts up to 9.1.6 or 11.1.4 configurations.

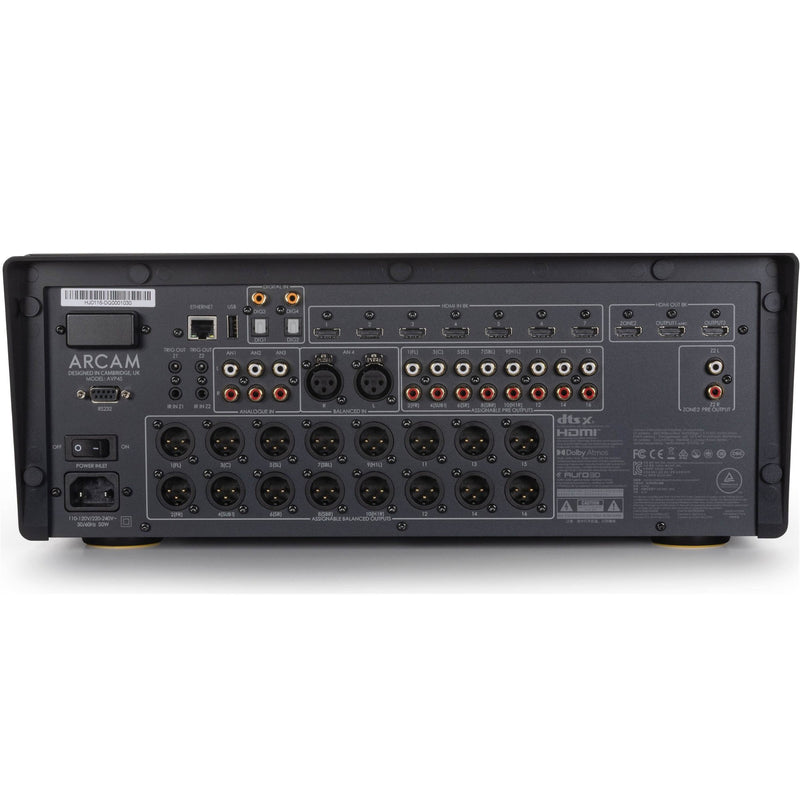

Balanced XLR & RCA outputs for all channels — equipped with 16 balanced XLR and 16 single-ended RCA pre-amp outputs to ensure maximum dynamic range and zero signal degradation when connected to external power amplifiers.
Dirac Live room calibration — includes integrated Dirac Live room correction (with measurement microphone) to eliminate room acoustic resonances and align speaker phase response.
ESS Sabre reference DAC architecture — powered by high-resolution ESS ES9027 Pro DACs to reproduce music and cinematic soundtracks with extreme transparency and ultra-low noise.
Advanced wireless & HDMI 2.1 connectivity — features 7 HDMI 2.1 inputs supporting 8K/60Hz and 4K/120Hz, along with Bluetooth 5.4 (Snapdragon Sound), AirPlay, Google Cast, Roon Ready, and Spotify/TIDAL Connect.
FAQ — AVP45
Does the Arcam AVP45 contain built-in amplifier power for speakers?
No. The Arcam AVP45 AV Processor is a dedicated preamplifier/processor (separate) designed to connect to external power amplifiers, such as the Arcam Radia PA series, via its 16 XLR or RCA pre-outs.
Does it come with Dirac Live room correction enabled?
Yes. It includes built-in Dirac Live room calibration software along with a calibration measurement microphone to optimize acoustics for your specific room layout.
Does it support 8K video pass-through and gaming features?
Yes. The HDMI 2.1 switching engine supports 8K/60Hz and 4K/120Hz video pass-through, HDR10+, Dolby Vision, eARC, ALLM (Auto Low Latency Mode), and VRR (Variable Refresh Rate).
How can I control playback and settings?
Settings and playback can be controlled using the front-panel 6.5-inch color display, the included IR remote, RS-232/IP automation systems, or the Arcam Radia control app for iOS and Android.
