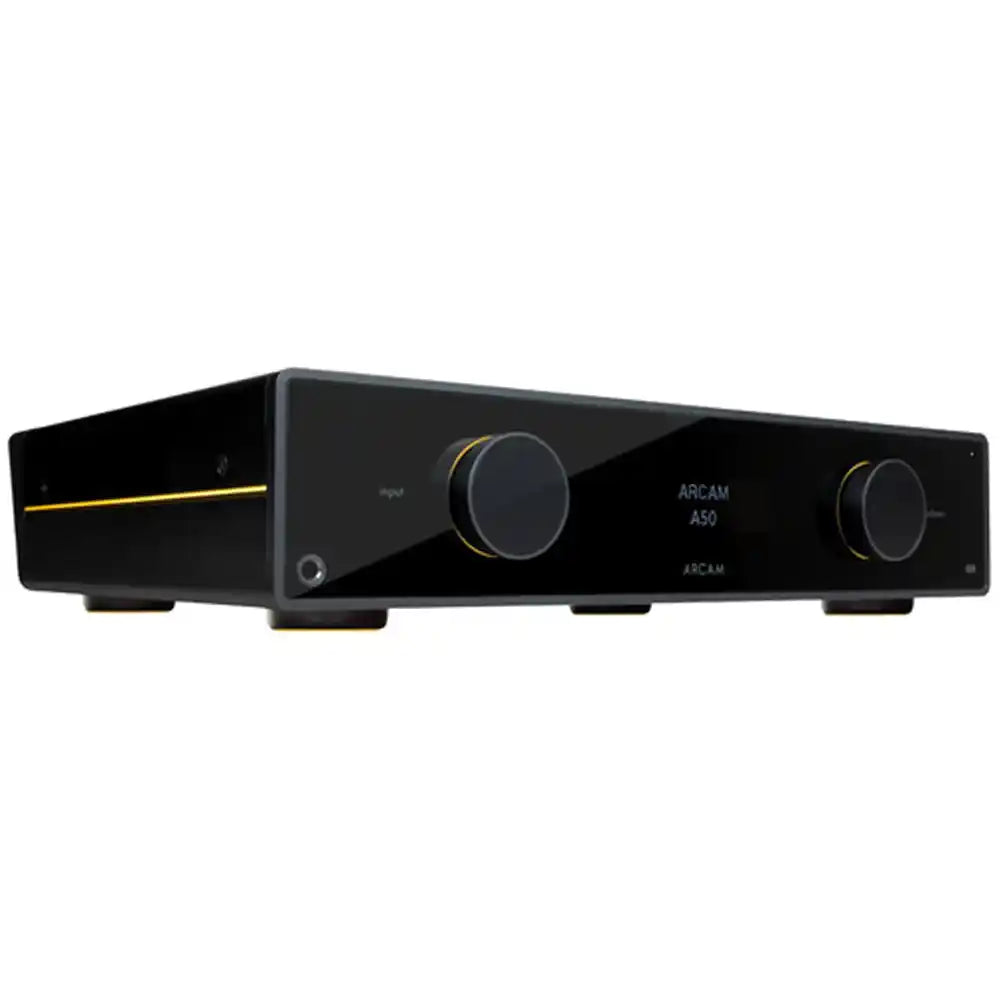

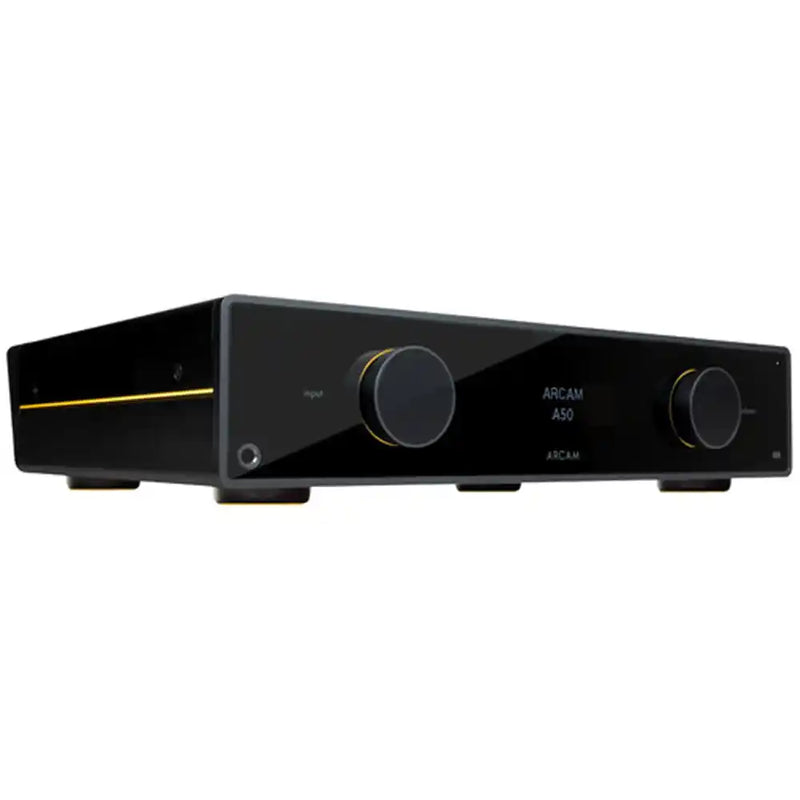

Arcam A50 Signature Integrated Amplifier - Audiolab

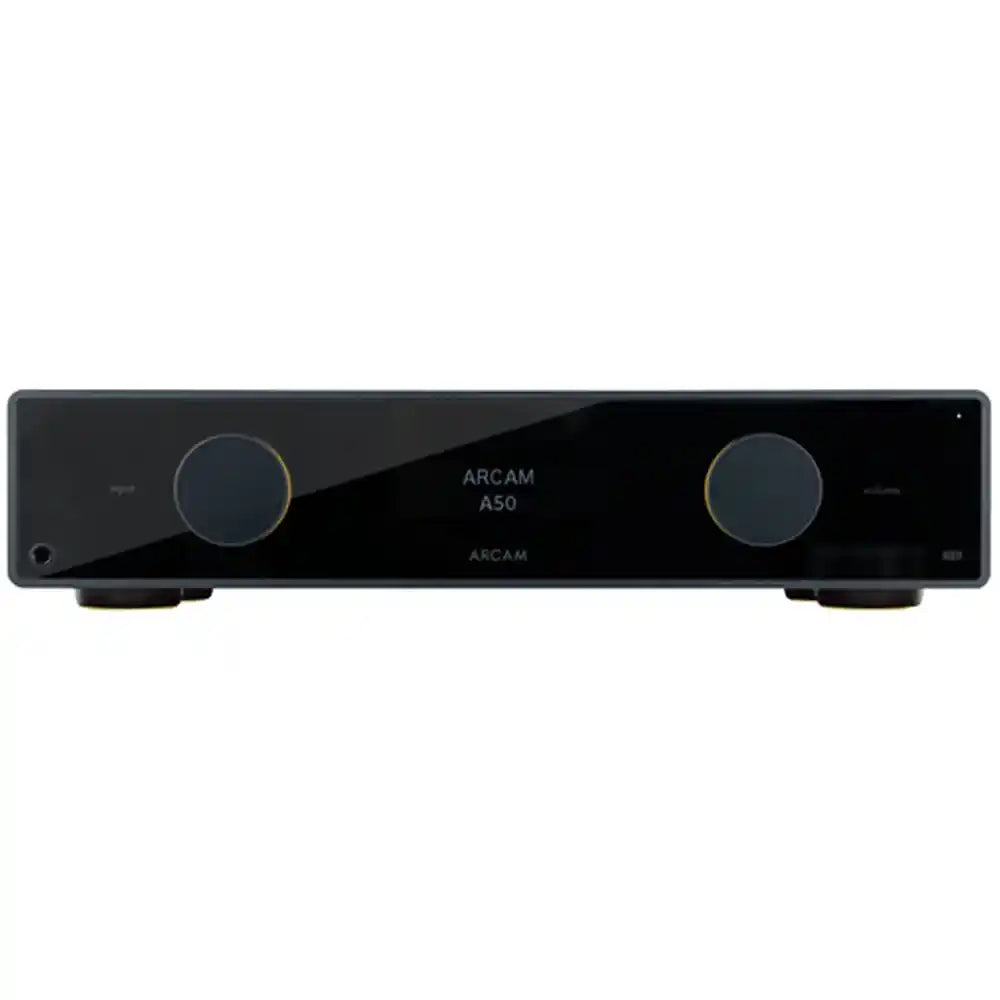

Arcam A50 Signature Integrated Amplifier Front View - Audiolab

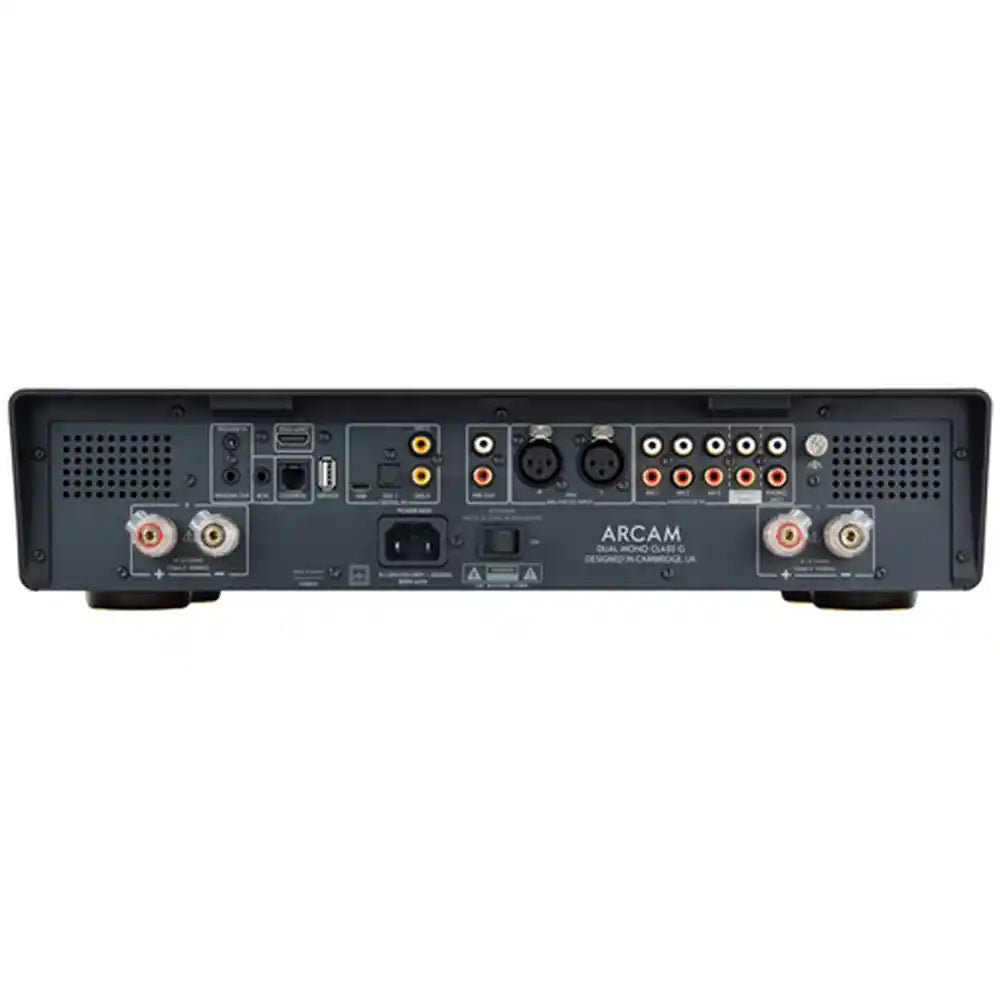

Arcam A50 Signature Integrated Amplifier Rear Panel - Audiolab

Arcam A50 Signature Integrated Amplifier

$2,999.95
$2,999.95
Availability: Out Of Stock
Have Questions or Need Advice?
Audiolab Advisor
Consult with a System Expert
From our PA Showroom

Free Shipping, no minimum!

60-Day Returns

Have a Trade-In? Fill Out Our Form.

ARCAM

Arcam A50 Signature Integrated Amplifier

50th Anniversary Dual-Mono Class G Integrated Amplifier • 150W/Ch into 8Ω • 220W/Ch into 4Ω • ESS ES9039Q2M DAC • Class A MM/MC Phono • USB-C 32-Bit/384kHz • HDMI eARC • Bluetooth 5.4

ARCAM's 50th Anniversary Reference Dual-Mono Class G Integrated Amplifier

The Arcam A50 Signature Integrated Amplifier celebrates five decades of ARCAM amplification with the company's first true dual-mono Class G integrated design. Developed in Cambridge, UK, each stereo channel operates as an independent amplifier module with its own transformer winding, power regulation, reservoir capacitors, Class G lifter stage and output-stage heatsink, creating exceptional channel separation, low noise and dynamic control.

Delivering 150 watts per channel into 8 ohms and 220 watts into 4 ohms, the A50 Signature combines formidable loudspeaker-driving ability with a completely redesigned digital and analog platform. An ESS ES9039Q2M DAC, asynchronous USB-C, HDMI eARC, dedicated Class A MM/MC phono circuitry, analog and digital inputs, Bluetooth 5.4 with aptX Lossless and Auracast, plus wired and wireless headphone support make it an exceptionally versatile centerpiece for a reference two-channel system.

Highlights & Benefits

  • 150W Per Channel Dual-Mono Class G — ARCAM's most advanced Class G implementation delivers 150 watts into 8 ohms and 220 watts into 4 ohms with both channels driven.
  • First ARCAM Dual-Mono Class G Integrated — Each channel receives dedicated transformer windings, regulation, reservoir capacitance, Class G lifter circuitry and its own heatsink.
  • ESS ES9039Q2M DAC — A new high-resolution digital section supports USB-C audio up to 32-bit/384kHz along with conventional digital sources and HDMI eARC.
  • Class A MM & MC Phono Stage — Built-in phono amplification supports both moving-magnet and moving-coil cartridges for high-quality vinyl playback without an external phono preamp.
  • Bluetooth 5.4 with aptX Lossless & Auracast — Advanced wireless audio supports both receiving and transmitting, including compatible wireless headphones.

Technology & Design

True Dual-Mono Class G Architecture — The left and right channels are constructed as self-contained amplifier modules, significantly reducing interaction between channels and providing each side with independent power delivery and thermal management.

Advanced Class G Power Delivery — ARCAM's Class G topology operates from lower supply rails during normal listening and introduces higher-voltage rails only when musical peaks demand additional power, combining strong efficiency with the linearity of a high-quality analog amplifier.

New Digital & Volume-Control Platform — The A50 Signature incorporates newly designed DAC, phono and volume-control circuitry developed specifically to complement its dual-mono amplifier architecture and preserve signal integrity from input to output.

Modern Source Integration — USB-C accommodates high-resolution computer audio, HDMI eARC simplifies premium TV sound, and Bluetooth 5.4 provides Snapdragon Sound, aptX Lossless, LE Audio and Auracast connectivity for compatible wireless devices.

FAQ — Arcam A50 Signature

How much power does the ARCAM A50 Signature produce?

ARCAM rates the A50 Signature at 150 watts per channel into 8 ohms from 20Hz–20kHz with both channels driven, and 220 watts per channel into 4 ohms at 1kHz.

What makes the A50 Signature different from other ARCAM integrated amplifiers?

The A50 Signature is ARCAM's first dual-mono Class G integrated amplifier. Each channel has its own transformer winding, power regulation, reservoir capacitors, Class G lifter stage and output heatsink for improved isolation and dynamic capability.

Can I connect a turntable directly to the A50 Signature?

Yes. ARCAM includes a newly designed Class A phono stage supporting both moving-magnet and moving-coil cartridges.

Can the A50 Signature connect directly to a television?

Yes. HDMI eARC allows compatible televisions to send audio directly to the amplifier, making the A50 Signature practical for a premium two-channel TV and music system.

Why Buy From Us

  • Authorized ARCAM Dealer
  • 5% Reward Points on Every Purchase
  • Expert Amplifier, Loudspeaker and Source-Matching Assistance
  • Professional Two-Channel System Setup and Installation Available

Arcam A50 Signature Specifications

Product Type
Reference dual-mono stereo integrated amplifier
Series
ARCAM Radia / 50th Anniversary Signature
Amplifier Channels
2
Amplifier Architecture
Dual-mono Class G
Output Power — 8Ω
150W per channel
20Hz–20kHz, 0.5% THD, 2 channels driven
Output Power — 4Ω
220W per channel
1kHz, 0.5% THD, 2 channels driven
Harmonic Distortion
0.002% at 80% power, 8Ω, 1kHz
Dual-Mono Power Architecture
Independent transformer windings, regulation, reservoir capacitors, Class G lifter stages and heatsinks per channel
Analog Inputs
3 × stereo RCA pairs
Balanced Analog Input
1 × stereo XLR pair
Analog S/N Ratio
106dB A-weighted
Ref. 50W, 1V input
Analog Frequency Response
20Hz–20kHz, ±0.2dB
Phono Stage
Built-in Class A MM / MC phono stage
MM Input Impedance
47kΩ + 100pF
MM Frequency Response
20Hz–20kHz, ±1dB relative to RIAA curve
DAC
ESS ES9039Q2M
USB Audio Input
USB-C
USB-C Sample Rates
44.1, 48, 88.2, 96, 176.4, 192, 352.8 and 384kHz
Other Digital Sample Rates
44.1, 48, 88.2, 96, 176.4 and 192kHz
Digital Bit Depth
16, 24 and 32 bit
Digital Frequency Response
20Hz–20kHz, ±0.2dB with Filter 1
Digital S/N Ratio
110dB A-weighted
Ref. 50W, 0dBFS
HDMI
HDMI eARC input for compatible televisions
Optical Digital Inputs
Supported
Coaxial Digital Inputs
Supported
Preamp Output
Stereo RCA pre-out
Headphone Output
Front-panel wired headphone connection
Headphone Output — 32Ω
2.5V RMS maximum
Headphone Output — 300Ω
5V RMS maximum
Headphone Load Range
16Ω–2kΩ
Wireless Headphone Support
Bluetooth transmitter support
Bluetooth Version
Bluetooth 5.4
Bluetooth Profiles
A2DP Sink/Source, AVRCP and BLE
Bluetooth Codecs
SBC, AAC, aptX, aptX HD and aptX Lossless
LE Audio / Auracast
Supported
Speaker Outputs
Stereo binding posts for 4–16Ω loudspeakers
Trigger Input
Supported
Trigger Output
Supported
IR Control
IR input supported
Mains Voltage
100V, 110–120V or 220–240V AC, 50–60Hz
Maximum Power Consumption
700W
Standby Consumption
<0.5W
Dimensions
16.97" W × 13.54" D × 3.90" H
431 × 344 × 99 mm including terminals and feet
Net Weight
26.5 lbs. / 12 kg
Packed Weight
30.9 lbs. / 14 kg
Engineering
Designed in Cambridge, UK
Packaging
Plastic-free packaging
Finish
Black with Radia yellow accents
Brand
ARCAM

What's in the Box

  • 1 × Arcam A50 Signature Integrated Amplifier
  • 1 × Remote Control
  • 2 × AAA Batteries
  • Region-Specific AC Power Cord(s)
  • Quick Start Guide
  • Important Safety Instructions
