Reference Dual-Mono Control for High-End Stereo Systems

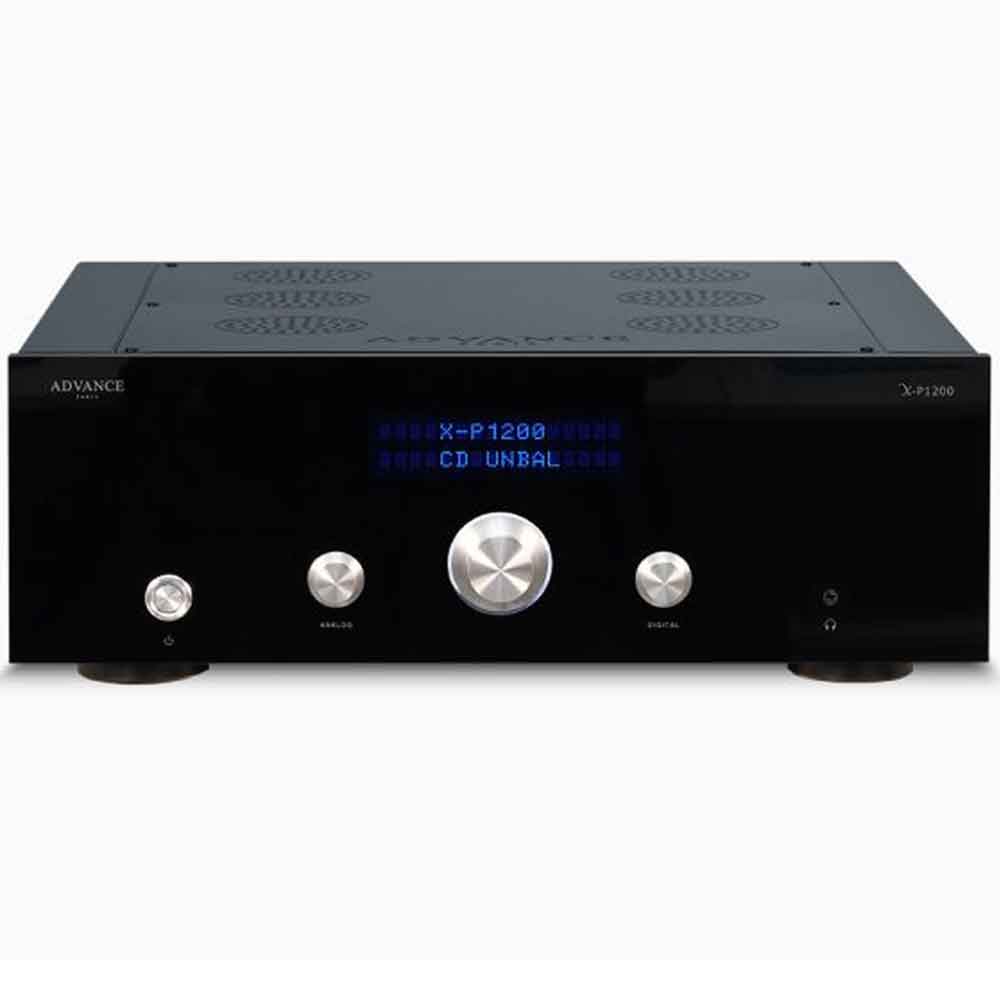

The Advance Paris X-P1200 Stereo Pre-amplifier is designed as the reference control center for a high-end separates system. Rather than sharing a common internal signal path, the X-P1200 is effectively composed of two independent mono preamplifiers housed within one rigid, compartmentalized chassis. Separate left- and right-channel circuits and power supplies help maximize channel separation, stereo imaging and low-level detail.
The X-P1200 combines this dual-mono analog architecture with extensive source flexibility, including nine analog inputs, two balanced XLR inputs, MM/MC phono support, XMOS USB-B computer audio, coaxial and optical digital inputs, and a high-performance Analog Devices AD1955 DAC. Balanced XLR and unbalanced RCA outputs make it an ideal partner for the X-A1200 monoblocks, X-A600 stereo power amplifier or other compatible high-end amplification.
Highlights & Benefits
-
True Dual-Mono Architecture — Independent left- and right-channel preamplifier circuits improve channel isolation, image focus and stereo separation.
-
Independent Power Supplies — Two toroidal transformers provide separate power for the two channels, helping reduce interaction between left and right circuitry.
-
Analog Devices AD1955 DAC — High-performance multibit sigma-delta conversion handles digital sources with a DAC-stage signal-to-noise capability specified at 123dB.
-
MM/MC Phono Support — A built-in phono section supports both moving-magnet and moving-coil cartridges for direct integration of serious turntables.
-

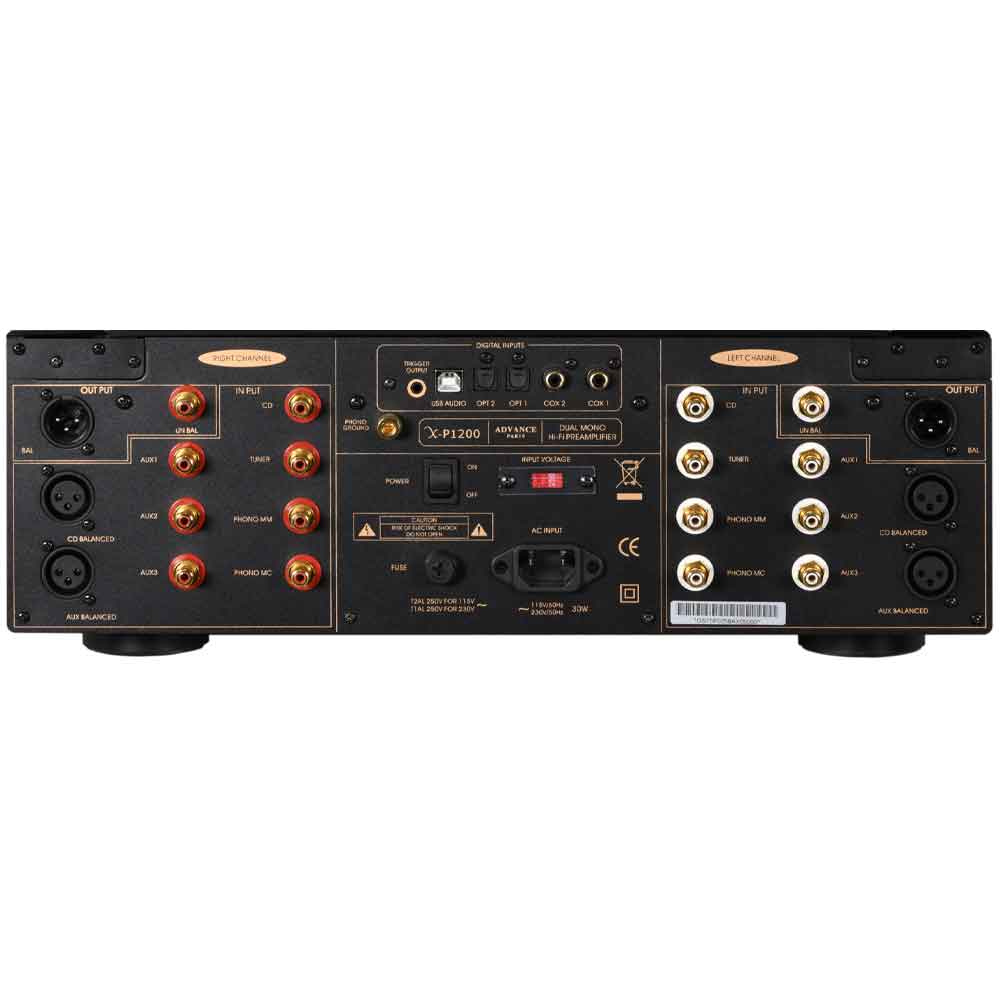

Balanced XLR Connectivity — Two balanced XLR source inputs and balanced XLR main outputs provide premium connectivity for compatible sources and power amplifiers.
Technology & Design

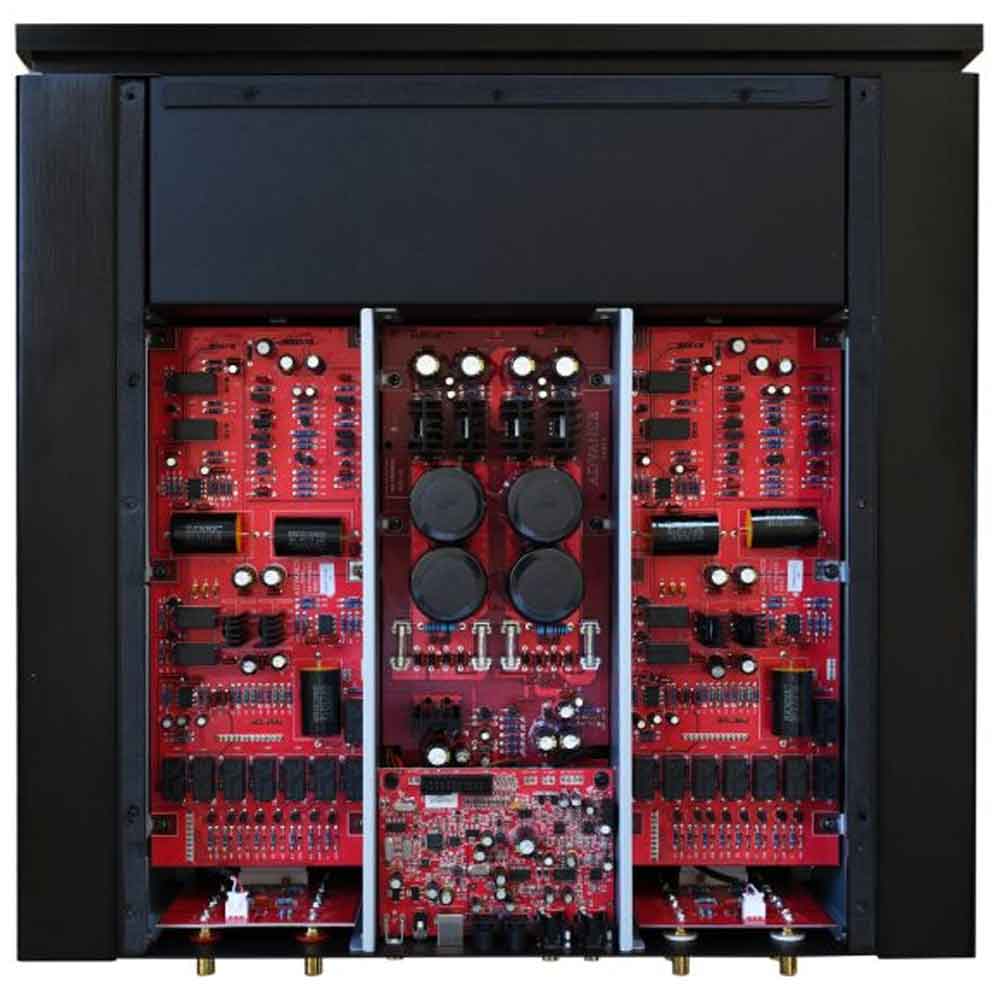

Compartmentalized Dual-Mono Construction — The X-P1200 separates critical circuits and preamplification stages within an ultra-rigid chassis to reduce interaction and preserve stereo-channel independence.
Dual Toroidal Power Transformers — High-current toroidal transformers and four 12,000µF / 150V filtering capacitors provide independent, heavily filtered power for the left and right preamp sections.
AD1955 Digital-to-Analog Conversion — The Analog Devices AD1955 uses multibit sigma-delta processing, high-performance digital interpolation filters and differential current outputs for high-quality digital playback.
Relay-Based Signal Switching — Inputs and outputs are selected using relays to maintain clean signal contacts, while Burr-Brown operational amplifiers are used for balancing and unbalancing RCA signal paths.
FAQ — Advance Paris X-P1200
Does the X-P1200 include a power amplifier?
No. The X-P1200 is a dedicated stereo preamplifier and requires a separate power amplifier such as the Advance Paris X-A600 or a pair of X-A1200 monoblocks.
Can I connect a turntable directly to the X-P1200?
Yes. The built-in phono section supports both moving-magnet and moving-coil cartridges, with specified MM/MC gain figures of 48dB and 64dB.
Does the X-P1200 have a built-in DAC?
Yes. The X-P1200 uses an Analog Devices AD1955 DAC and includes XMOS USB-B, coaxial and optical digital connectivity for compatible digital sources.
Is the X-P1200 designed to match the X-A1200?
Yes. Advance Paris specifically identifies the X-P1200 and X-A1200 monoblock power amplifiers as a reference separates combination, although the preamplifier can also be used with other compatible power amplifiers.
