Dedicated High-End CD Transport for External DAC-Based Hi-Fi Systems

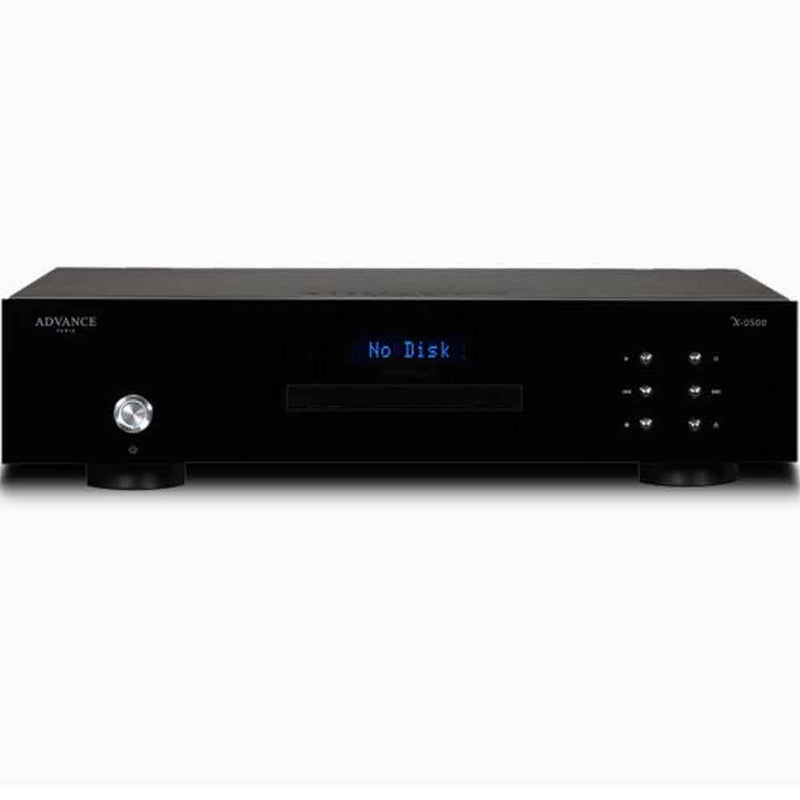

The Advance Paris X-D500 CD Transport (Requires External DAC) is designed for listeners who want a dedicated disc transport without paying for a second digital-to-analog conversion stage they do not need. Rather than providing conventional analog outputs, the X-D500 concentrates on reading the digital information from a compact disc and sending that signal to an external DAC, digital preamplifier or integrated amplifier equipped with a compatible digital input.

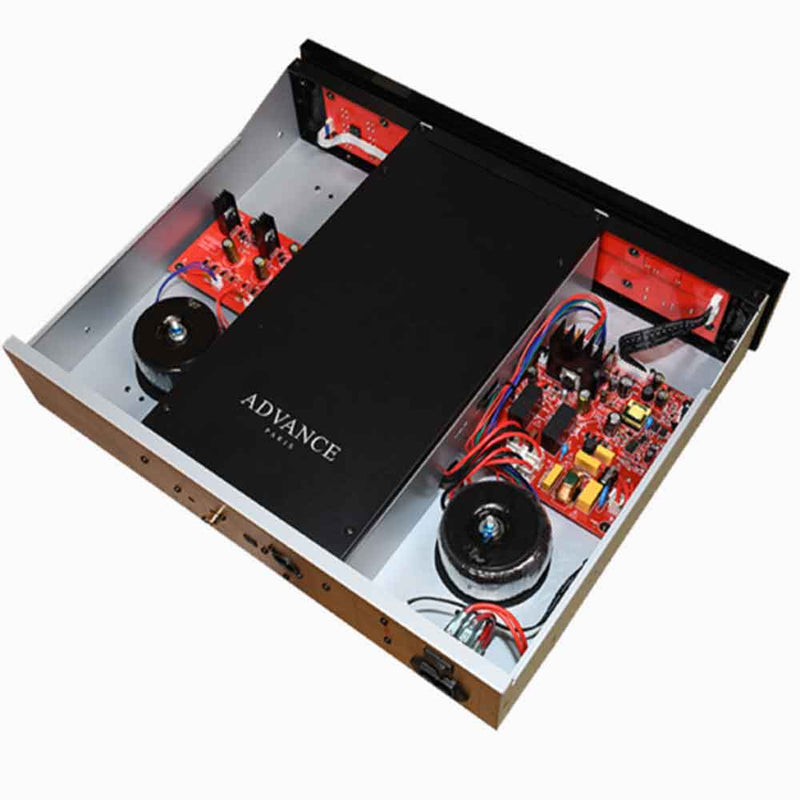

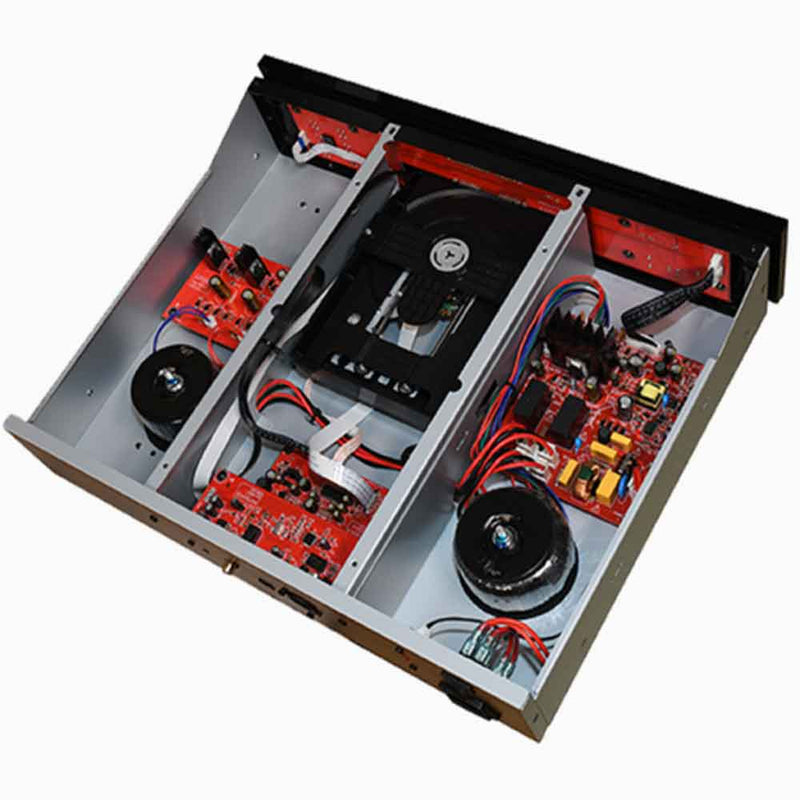

A rigid chassis, dual toroidal transformers and separately managed internal power supplies support the transport mechanism, laser-control circuitry and digital processing sections. Selectable upsampling can convert the original 16-bit/44.1kHz CD signal to 24-bit/96kHz or 24-bit/192kHz, while AES/EBU, coaxial and optical outputs provide flexible connection options for high-performance external conversion.
Highlights & Benefits
-
Dedicated Transport-Only Design — Focuses entirely on extracting and outputting the digital information from a CD without an internal DAC or analog output stage.
-
Dual Toroidal Transformers — Separate toroidal power supplies help isolate the transport, control and digital sections for cleaner operation.
-
Selectable High-Resolution Upsampling — Converts standard 16-bit/44.1kHz CD data to either 24-bit/96kHz or 24-bit/192kHz before digital output.
-
Three Digital Output Formats — AES/EBU, coaxial RCA and optical TOSLINK outputs support a wide range of DACs and digital amplifiers.
-
Rigid Full-Width Chassis — Substantial mechanical construction helps provide a stable platform for the optical disc mechanism and digital circuitry.
Technology & Design
Transport-Only Signal Architecture — The X-D500 omits analog conversion entirely, allowing the connected DAC or amplifier to handle digital-to-analog conversion.
Dual Linear Power Supplies — Two toroidal transformers rated at 15VA and 25VA provide separated power for the different operating sections inside the transport.
24-Bit Upsampling — The original Red Book CD signal can be output natively or processed to 24-bit/96kHz or 24-bit/192kHz for use with compatible downstream digital components.
Professional & Consumer Digital Outputs — A 110-ohm AES/EBU XLR connection joins 75-ohm coaxial RCA and optical TOSLINK outputs for flexible integration into both conventional and high-end systems.
FAQ — Advance Paris X-D500
Does the Advance Paris X-D500 have a built-in DAC?
No. The X-D500 is a dedicated CD transport and requires an external DAC, digital preamplifier or integrated amplifier with a compatible digital input.
Does the X-D500 have analog RCA or XLR outputs?
No. It provides digital outputs only: AES/EBU on XLR, coaxial digital on RCA and optical digital on TOSLINK.
Does the X-D500 support upsampling?
Yes. Advance Paris provides selectable 24-bit/96kHz and 24-bit/192kHz upsampling for the original 16-bit/44.1kHz CD signal.
What do I need to use the X-D500?
You will need a stereo system with an external DAC, preamplifier, integrated amplifier or receiver equipped with AES/EBU, coaxial or optical digital input capability.
