SVS SoundPath Speaker Level Subwoofer Adapter

SVS SoundPath Speaker Level Subwoofer Adapter - SVS

Add pristine speaker-level to line-level subwoofer connectivity with no loss of fidelity. For use with integrated amplifiers and legacy stereo receivers which lack line level or subwoofer outputs. Easy set up with high quality speaker-level binding post inputs, and stereo RCA line-level outputs.

Easily Connect a Subwoofer to Legacy Audio Components
Many integrated amplifiers and legacy stereo receivers lack line-level outputs, leaving enthusiasts without the ability to connect a powered subwoofer to their system.

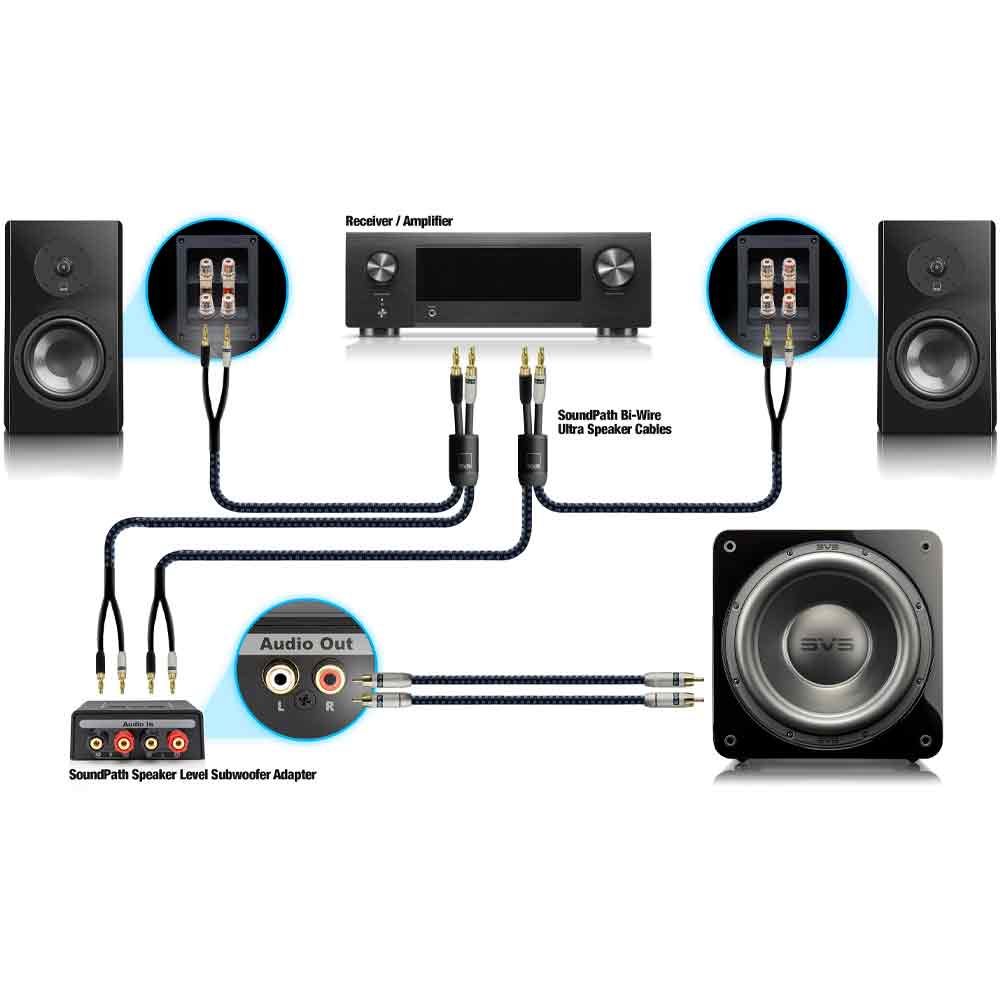

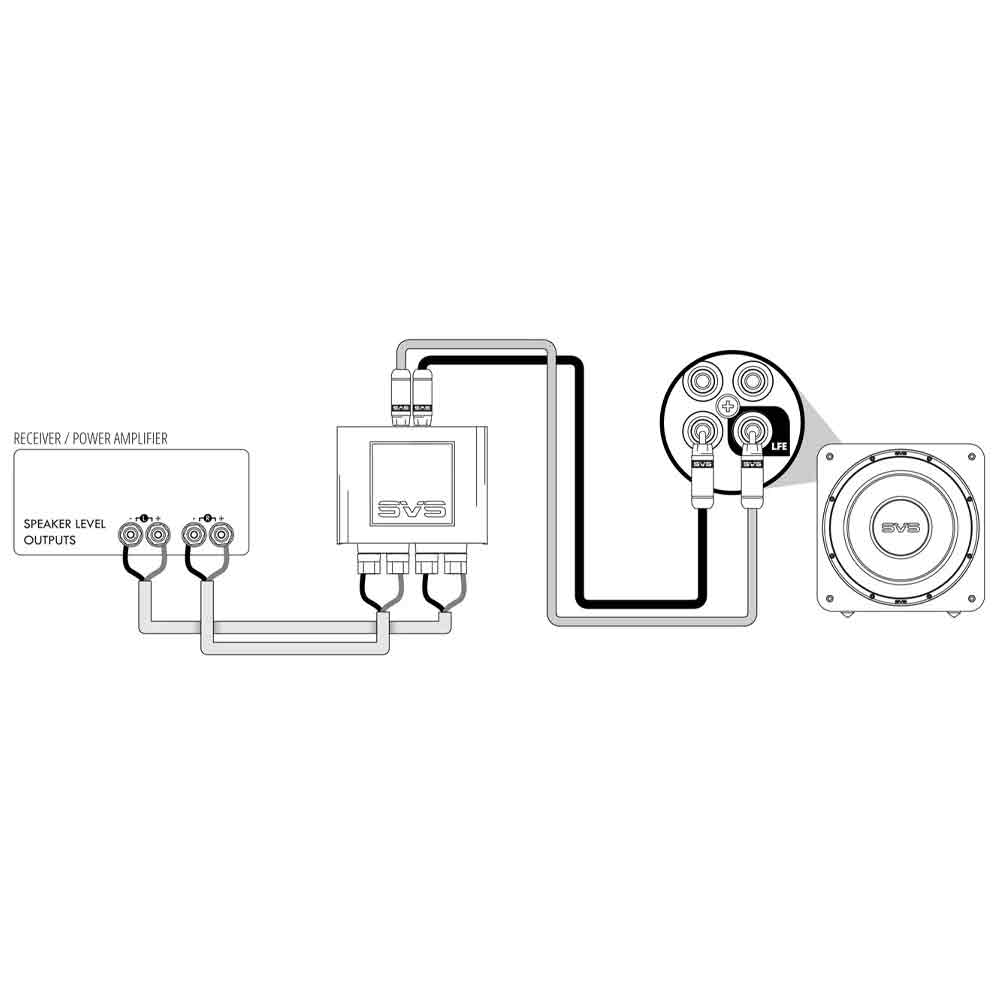

The SVS SoundPath Speaker Level Subwoofer Adapter elegantly solves this problem by stepping down the loudspeaker amplifier speaker-level voltage to RCA line-level voltage, allowing for a safe connection to a powered subwoofer with no loss of fidelity.

With a minimalist design and premium components, the SoundPath Speaker Level Subwoofer Adapter ensures pristine and transparent signal transfer to the subwoofer without compromise to any part of the playback system.

Inspired Engineering for Uncompromised Performance

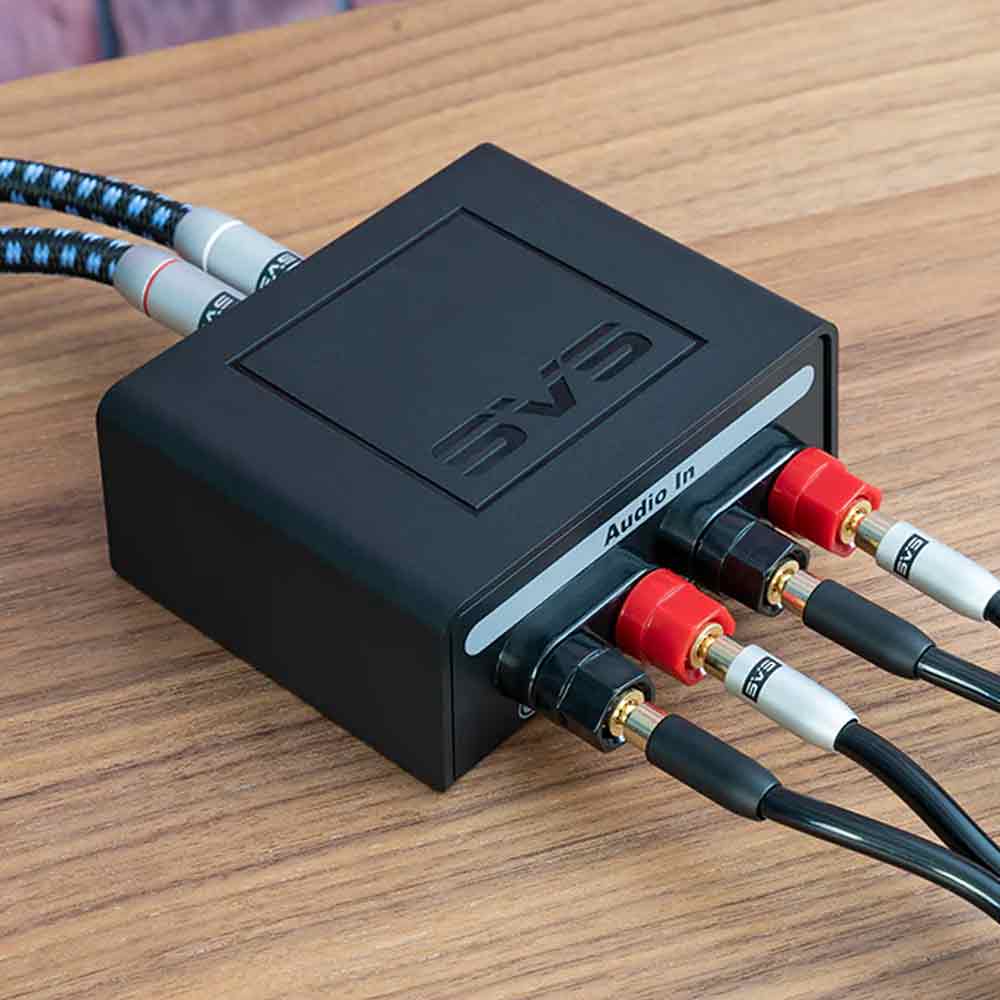

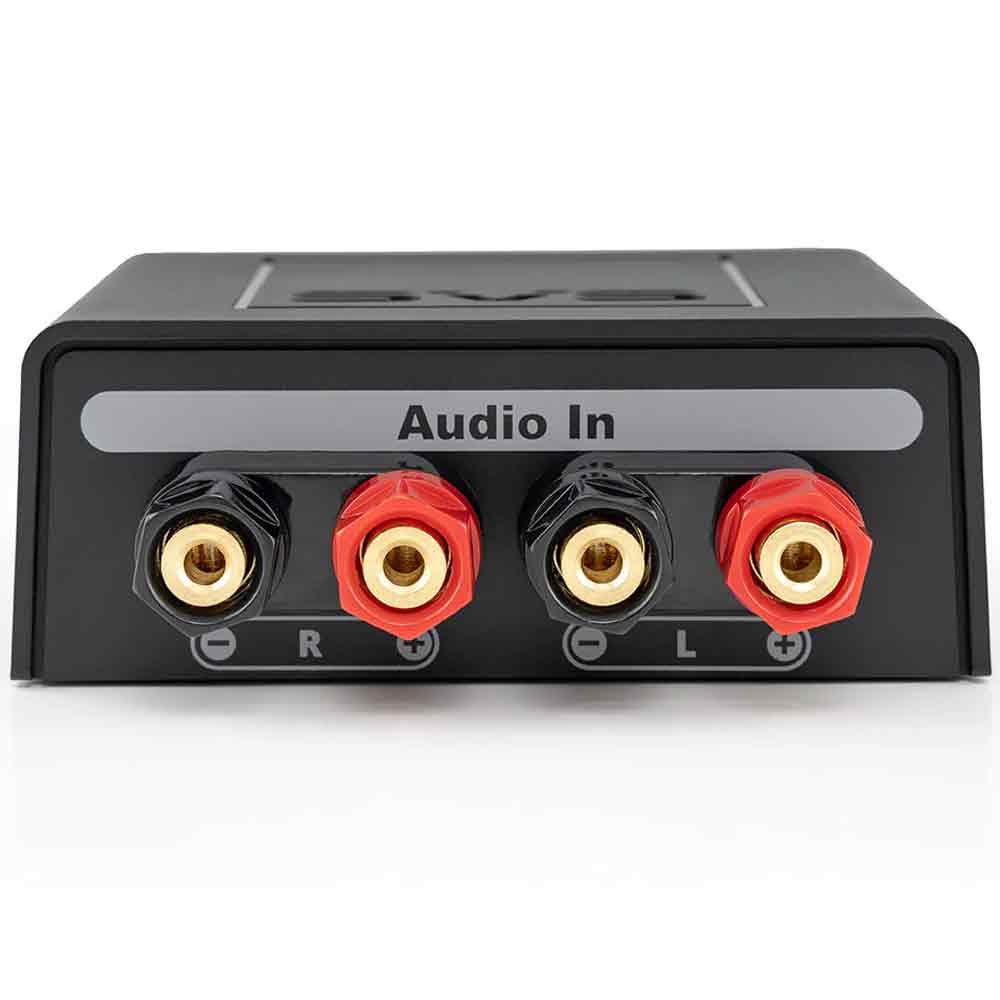

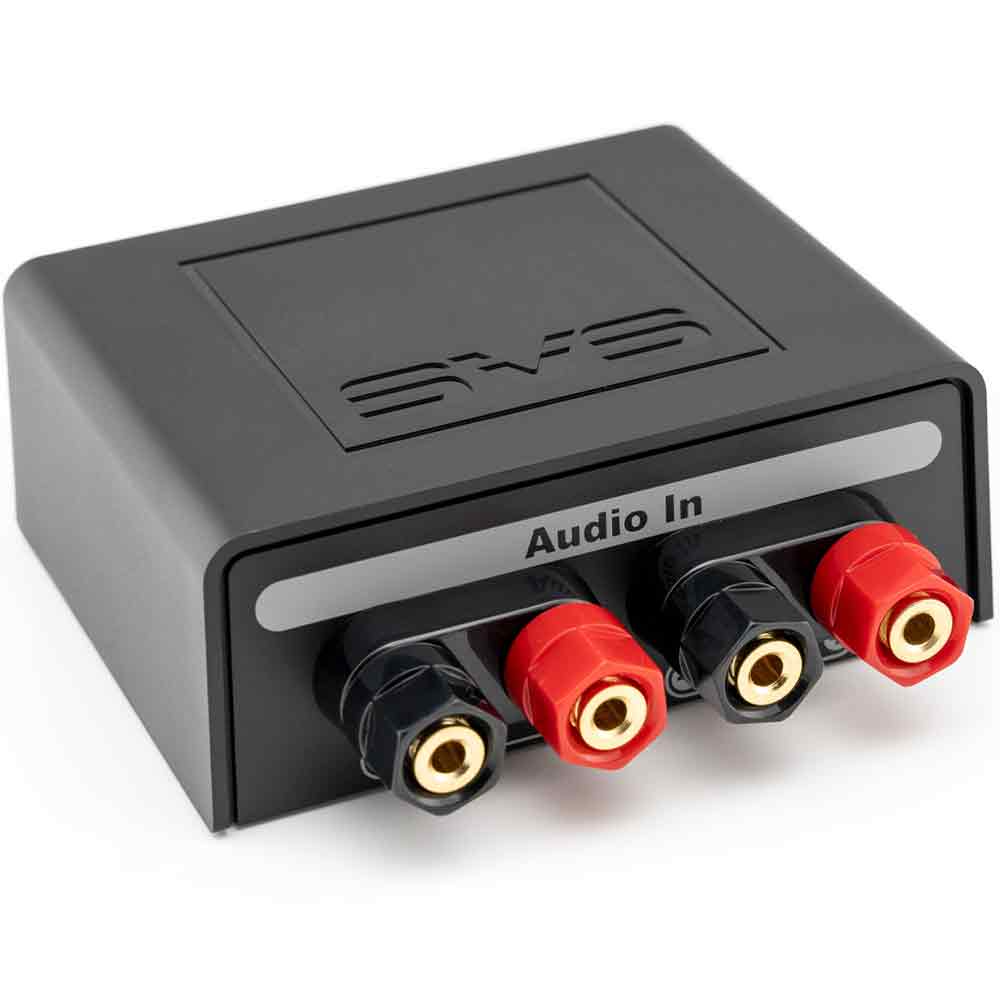

• Stereo Gold-plated 5-way speaker-level binding posts allow bare-wire, spade, or banana connectors.

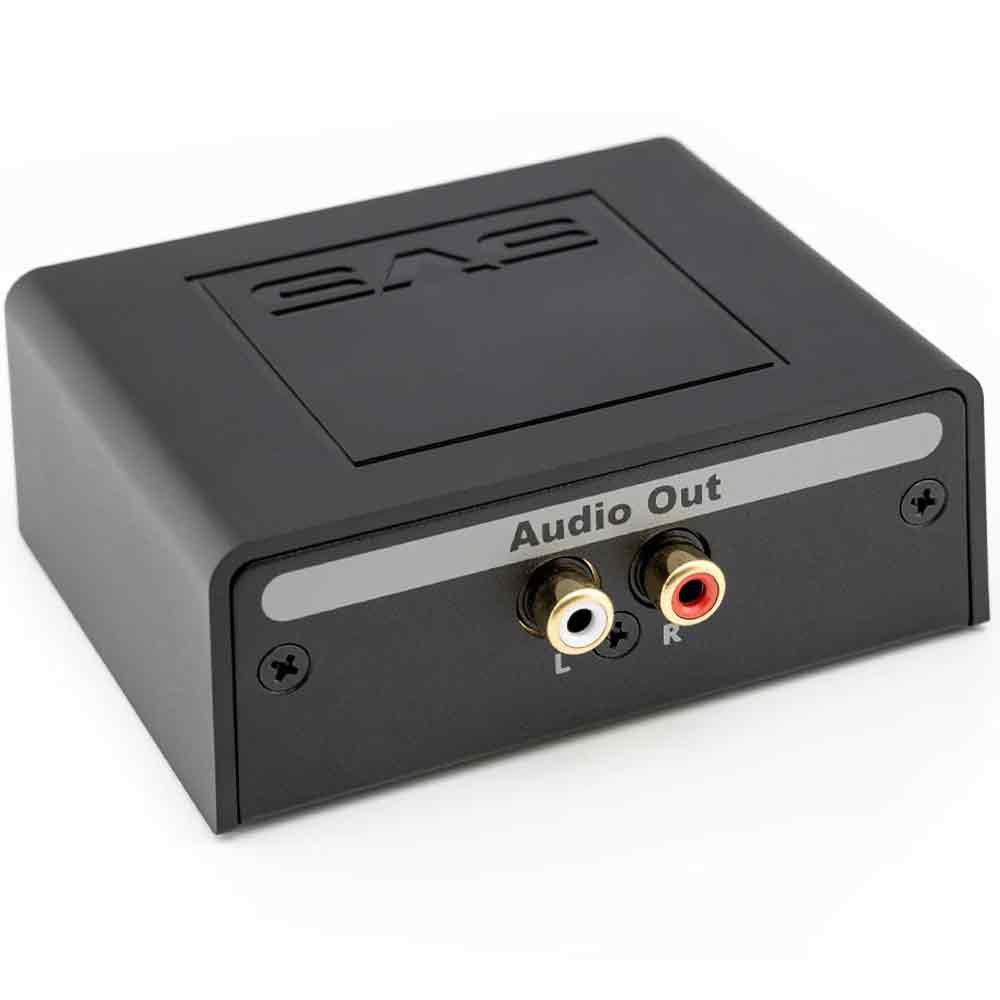

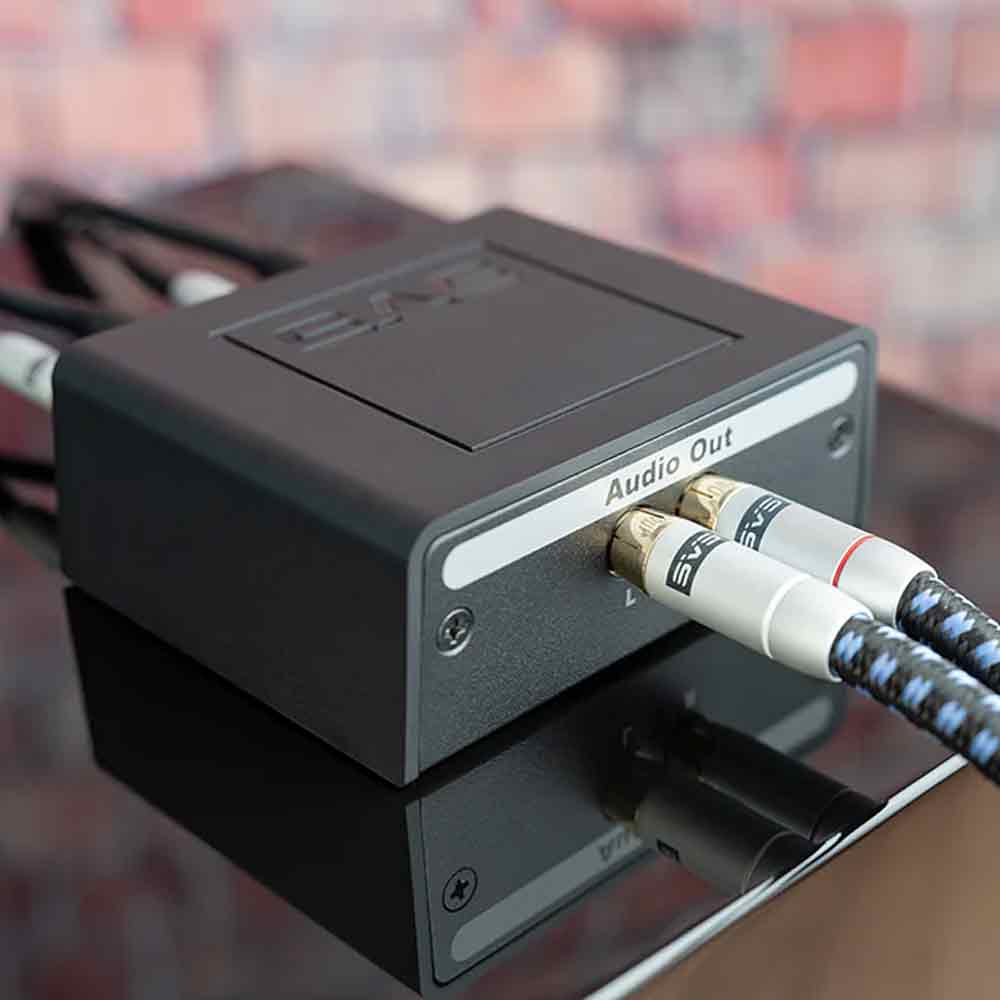

• Gold-plated stereo RCA line-level output jacks ensure a secure connection to the line-level inputs of the powered subwoofer. Works seamlessly with a pair of SVS SoundPath RCA Subwoofer Cables.
• Features premium grade narrow-tolerance resistors and wide-trace PCBs for high-current and extreme power handling. Uncompromising design yields wide bandwidth and ultra-low distortion for pristine signal transfer, pinpoint accuracy and compatibility with all high-end audio systems.
• -30 dBV attenuation will not draw any power from the loudspeaker amplifier ensuring a safe signal for the subwoofer line level inputs.
• Minimalist design with insulated chassis for discrete placement.

Note: If you have a differential amplifier, please contact SVS Customer Service for guidance on special connection methods to safely use the SoundPath Speaker Level to Subwoofer Adapter.

What to expect in the box:

• SoundPath Speaker Level Subwoofer Adapter

Product Details:

• Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts
• Line-Level Outputs: Stereo Gold-Plated RCA Jacks
• Speaker-Level Input Impedance: 4.85 kΩ
• Line-Level Output Impedance: 150 Ω
• Voltage Attenuation: -30 dBV
• Power Handling: 500W RMS / 1,000W Peak
• Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
• THD+N @ 10V: <0.03% (10 Hz – 80 kHz)
• Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
• Weight: 0.6 lb. (0.28 kg.)
