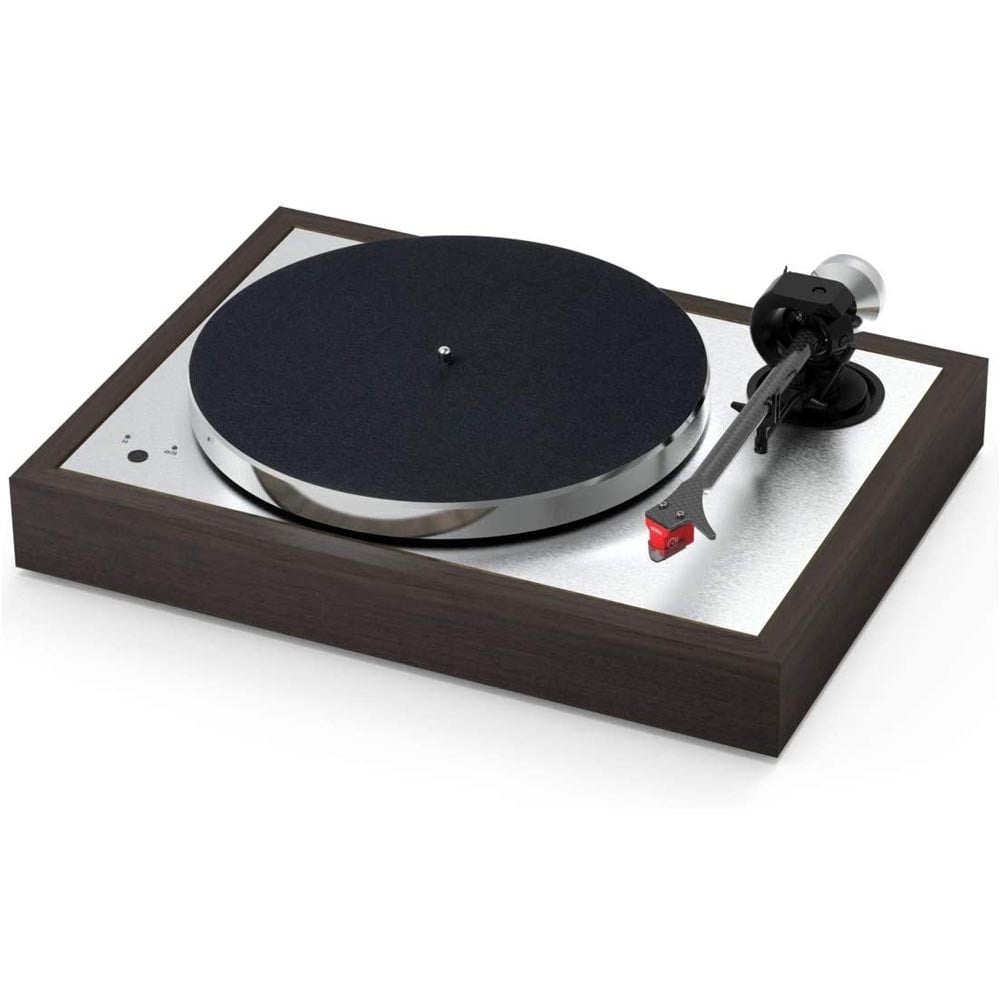

Pro-Ject Classic Evo Sub-Chassis Turntable With 9“ Carbon/ALU Sandwich Tonearm

Pro-Ject Classic Evo Sub-Chassis Turntable With 9“ Carbon/ALU Sandwich Tonearm - Pro-Ject

The Classic meets the 175 VPO to melt design-ideas
The new Classic Evo is based on the successful EISA Award winner Pro-Ject The Classic. The main improvement is the sub-platter, where we used the experience we gained from designing the 175 – Vienna Philharmonic Record player to add key changes to the Classic Evo. The main bearing construction we use is a similar system as the one on the Vienna Philharmonic Record player. For improved comfort, an electronic speed change was built in, which lets you switch from 33 to 45 rpm (and vice versa) with the push of a button. Compared to the old Classic, we improved the sub chassis; we tried to make it heavier and stiffer to reduce resonances. Isolating the platter and tonearm from the resonances of the motor and main plinth is the target. The heavy aluminum main platter construction utilizes advanced thermo plastic elastomers (TPE) for optimizing resonance behavior.

The tonearm tube is made out of a sandwich of carbon and aluminum: carbon for stiffness and speed, alu for better damping. The bearing has been upgraded to the same type that is used on our Pro-Ject CC EVO tonearms. It facilitates frictionless vertical and horizontal movement, guaranteeing precise tracking across the entire duration of the record. The counterweight incorporates a TPE* damper which allows us to reduce the amplitude of the tonearm cartridge resonance frequency by 50%. As typical for Pro-Ject we offer also azimuth and VTA adjustment to use a variety of cartridges.

Features:

• Diamond cut precision alu sub-platter
• Improved sandwich sub chassis
• Sumiko Moonstone cartridge pre-installed
• Electronic speed control (33/45 rpm)
• Belt drive with electronic speed control 33/45 rpm
• Height adjustable decoupling feet
• Precision balanced TPE-damped aluminum-platter
• Metal/MDF sandwich chassis floating on TPE suspension
• 9” carbon/aluminum tonearm with MM & MC capability
• Inverted EVO bearing design
• Arm bearing housing of solid ring type. The massive outside ring is open to avoid resonances
• Azimuth and VTA fully adjustable
• TPE damped counterweight
• Classic wooden chassis in 2 satin finishes (walnut, eucalyptus)
• Dustcover included

Specs

• Speed: 33, 45, 78 (electronic speed change)
• Drive Principle: belt drive
• Speed Variance: 33: ±0.13 % 45: ±0.10 %
• Wow & Flutter: 33: ±0.10 % 45: ±0.09 %
• Platter: 300 mm aluminum
• Mains bearing: stainless steel
• Signal to noise: 70dB
• Tonearm: 9” carbon/aluminum sandwich tonearm
• Effective arm length: 230 mm
• Effective tonearm mass: 13.5 g
• Overhang: 18 mm
• Tracking force: 10 - 30mN
• Included accessories: 15 volts DC / 0.8A power supply, dust cover
• Power connection: 110/120 or 230/240 Volt - 50 or 60 Hz
• Power consumption: 5 watt max / < 0.5 watt standby
• Dimensions: 462 x 131 x 351 mm (WxHxD) lid closed
• Weight: 10.5 kg net

In the Box

• The Classic Evo with Sumiko Moonstone cartridge
• Connect it E RCA Cable
• Dust cover
• Felt mat
• Adapter for 7“ singles
• Round drive belt for 78 r.p.m.
• Power supply, allen key, stylus pressure gauge
• Sumiko Moonstone Cartridge
