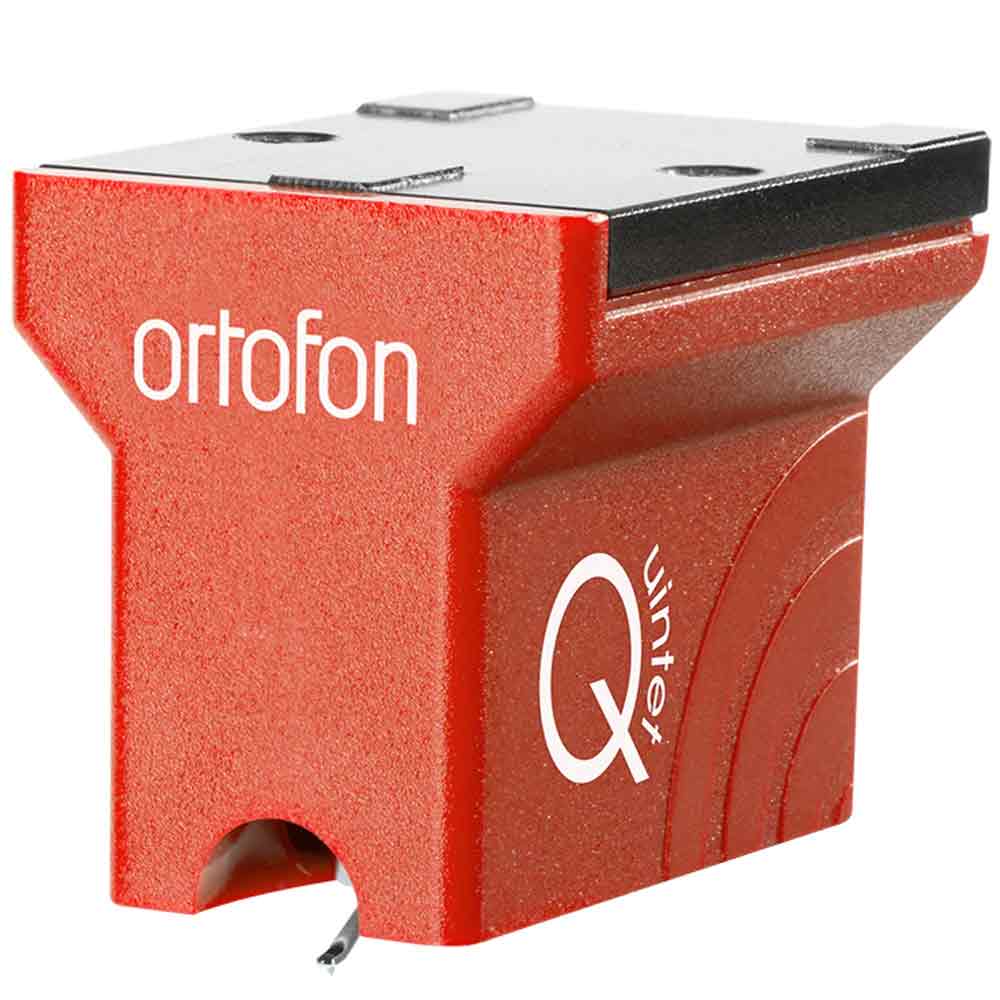

Ortofon MC Quintet Red Cartridge

$0.00
$0.00

Available for pickup or local delivery. 1-800-513-8555 for details.

Available In Store

FREE 60 Day Returns

Ortofon MC Quintet Red Cartridge - Ortofon

Enter the Exclusive world of Ortofon’s famous moving coil sound.
The Quintet Red is a perfect introduction to the world of Ortofon moving coils.It features an Elliptical diamond which is cut and polished to Ortofon’s standards.

This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.

MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

Accuracy level
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration:

  • A special PC thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
  • Neodymium magnets are implemented to achieve an optimal output.
  • Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.

MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

The Quintet series
Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analog sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different Moving Coil models. We believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.

Compatibility
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminum frame has threaded mounting holes and is fitted easily with the 5 mm or 7 mm screws depending on the thickness of the headshell.

The Quintet series’ right angles, straight lines, stylus visibility, and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.

What to expect in the box:

  • MC Quintet Red Cartridge

Product Details:

  • Channel balance at 1 kHz: < 1.5 dB
  • Output voltage at 1 kHz, 5cm/sec: 0.5 mV
  • Channel separation at 1 kHz: > 21 dB
  • Frequency response 20 Hz - 20 kHz: +/- 2.5 dB
  • Tracking ability at 315 Hz: 65 µm
  • Compliance, dynamic, lateral: 15 µm/mN
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 2.1-2.5 g
  • Tracking force, recommended: 2.3 g
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 7 Ohm
  • Recommended load impedance: > 20 Ohm
  • Cartridge body material: PC
  • Cartridge color: Red
  • Cartridge weight: 9 g
