MOON 780D V2 Streaming DAC

MOON 780D V2 Streaming DAC - MOON

MiND 2 streaming module
MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music. The 780D v2 is designed to deliver an outstanding high-resolution streaming experience through music services such as Spotify Connect, Tidal Masters, Qobuz Sublime+ and Deezer Hi-Fi. The DAC architecture supports PCM (up to 32-bit/384kHz), DSD (up to DSD256) and is MQA certified.

Roon Ready & full MQA decoding
The 780D v2 is Roon Ready and allows the playback of all the most common file formats, including DSD, and MQA file formats via all inputs.

Sophisticated, future proof, audiophile design
“With its luxurious-looking case of aircraft-grade aluminum, exemplary build quality, unparalleled connectivity, and onboard MiND streamer, the 780D is a distinctive product worthy of its flagship title.” – Aron Garrecht, SoundStage!

The finest digital source for astounding detail retrieval
“It [780D] is a really mature device that practically does not have a weakness and which belongs to a category that will make you feel the complete experience of music, not only listen to it. And that’s a lot of “wow”! – translation from Daniel Březina, Hi-Fi Voice

Design features:

• AirPlay 2 compatible
• Roon Ready device
• DSD and MQA decoding from all digital inputs
• Spotify Connect, Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
• Multi-room synchronized playback

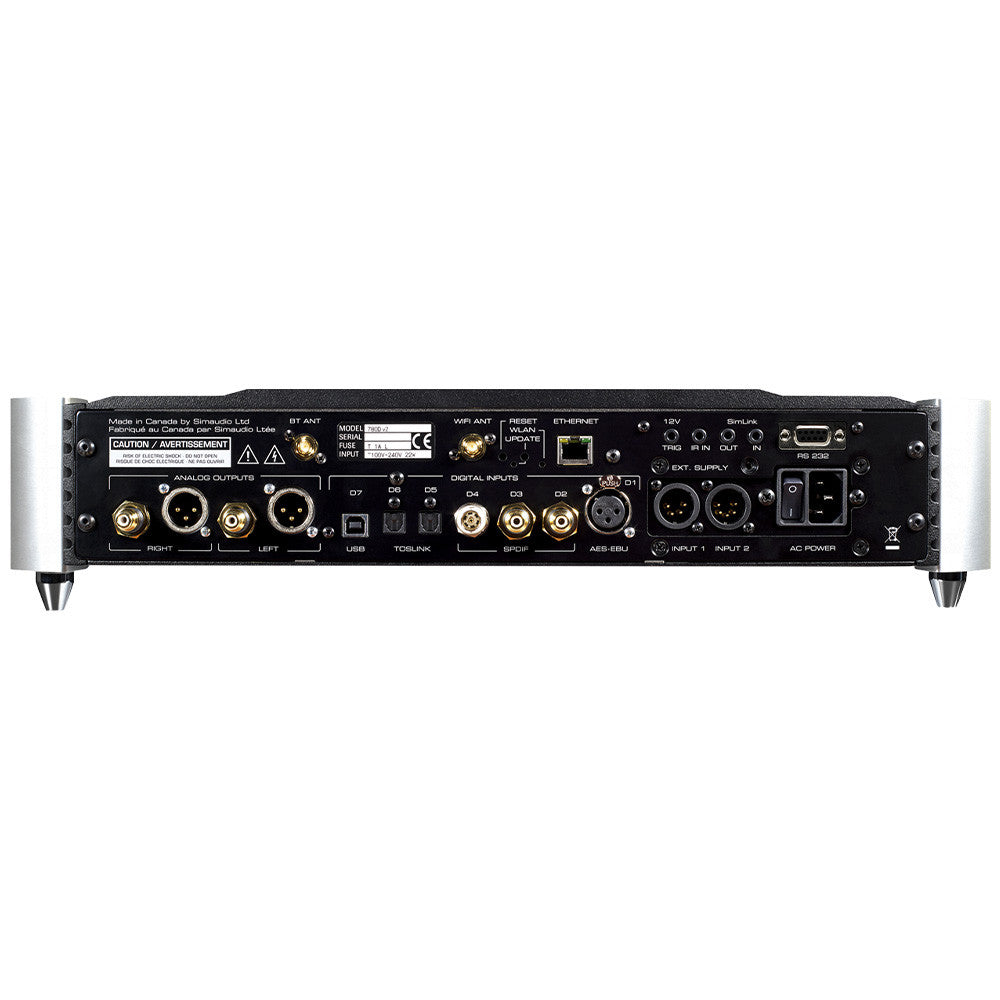

• 9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth®

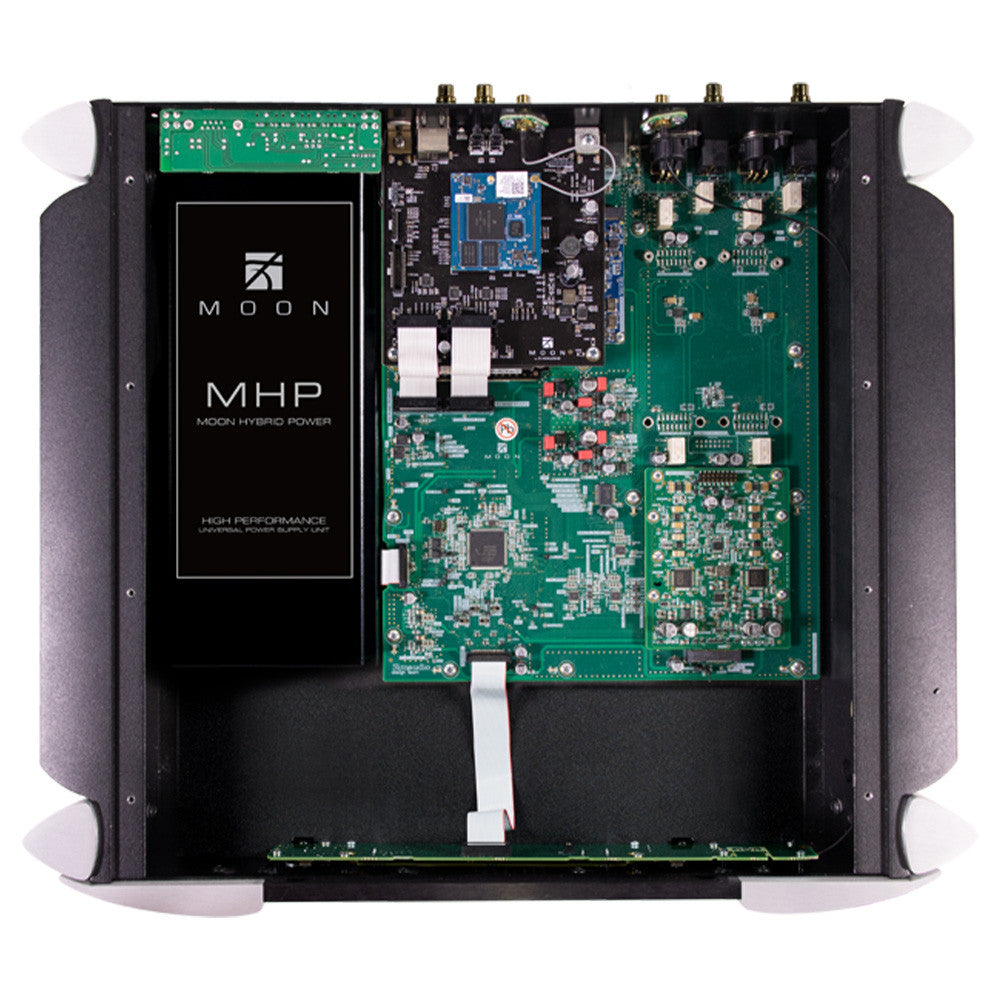

• Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output
• Femto second clock resulting in much lower jitter and consequently lower distortion
• 12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
• Spotify Connect compatible
• On-board programmable software for customization of the end-user interface

Specifications:

• Frequency response (full range): 2Hz - 100kHz +0/-3dB
• THD @ 1kHz, 0dBFS (A-weighted): 0.0001 %
• Intermodulation distortion: 0.0001 %
• Dynamic Range: 124 dB
• Signal-to-noise Ratio: 124 dB @ full output
• Channel Separation: 120 dB
• Intrinsic Jitter: 150 femto seconds RMS
• Analog Output @ 0dBFS: 2.0 V
• Analog output impedance: 100 Ω
• PCM Bit-depth range: 16 - 32 bits
• PCM sampling frequency rates: 44.1 - 384 kHz
• DSD sample rates: DSD64, DSD128 & DSD256
• Shipping weight: 38 lb / 17 kg
• Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in, 47.6 x 10.2 x 42.7 cm

In The Box:

• AC power cable
• FRM-3 remote control with three ‘AAA’ batteries
• ‘SimLink™’ cable with 1/8” mini plug terminations on each end
• 2x Wi-Fi antenna
• Owner’s manual
• Warranty and product registration information (USA and Canada only)
