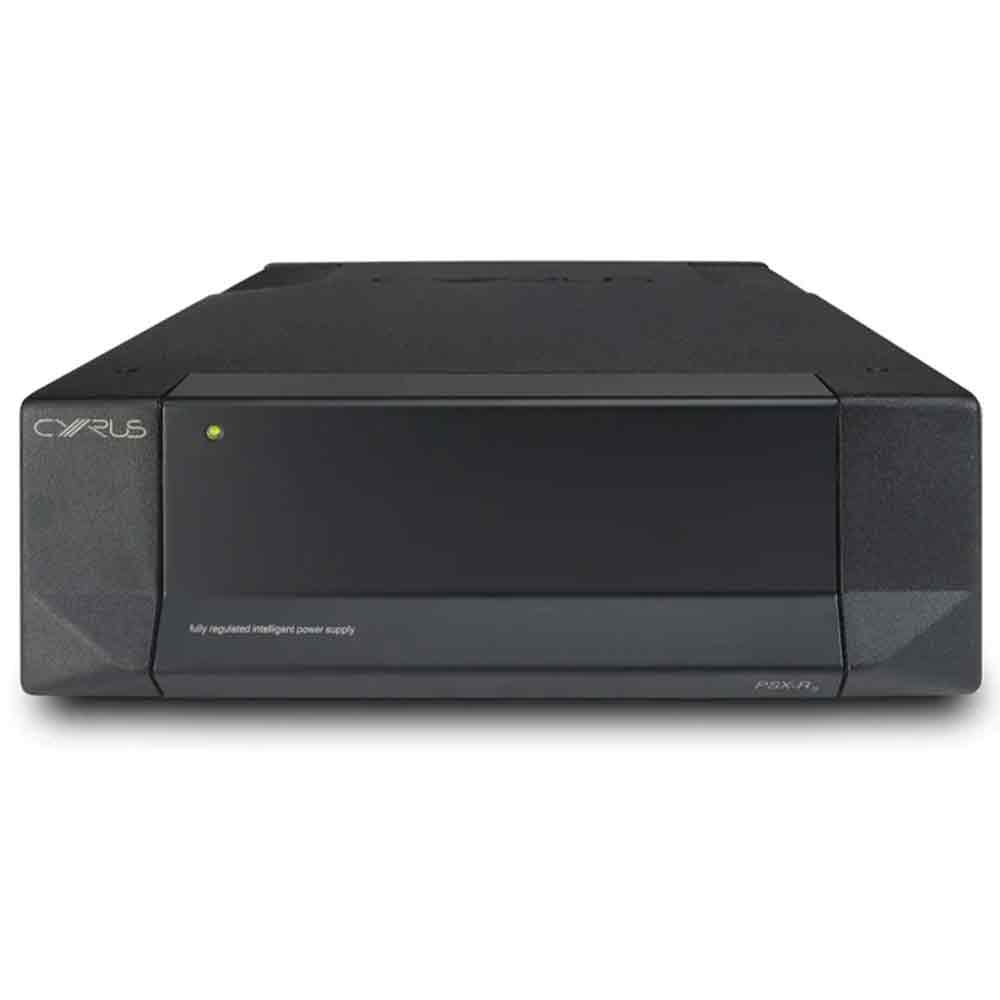

Cyrus PSX-R2 Power Supply

$1,300.00
$1,300.00
Availability: In Stock

Free Shipping, no minimum!

60-Day Returns

Cyrus PSX-R2 Power Supply | Best Cyrus PSX-R2 Power Supply | Cyrus PSX-R2 Power Supply Reviews | Audiolab Home Audio

Cyrus PSX-R2 Power Supply

$1,300.00

Cyrus PSX-R2 Power Supply

$1,300.00

Cyrus PSX-R2 Power Supply - Cyrus

The PSX-R2 is an external power supply, which is designed to work with certain of our core hi-fi separates range – namely those products where the circuits have been designed in such a way to benefit from this addition and provide a fantastic upgrade path.

The PSX-R2 provides an extremely smooth and stable DC feed allowing any partnered component to achieve its full potential. In terms of performance , you will perceive new levels of fine detail with the PSX-R2, allowing you to appreciate the subtle emotional nuances that truly expose the performer’s emotion and passion.

Re-Designing A Classic
The PSX-R2 is based on a design that has been in the Cyrus family for over 30 years. The latest improvements bring power supply filtering from the Anniversary system, culminating in the new v2 edition.

Instant Upgradability
The PSX-R2 provides an instant sonic improvement to any compatible product. The benefits of a separate, isolated and highly regulated power supply allow internal electronics to upgrade their sonic performance.

Intelligent Connectivity

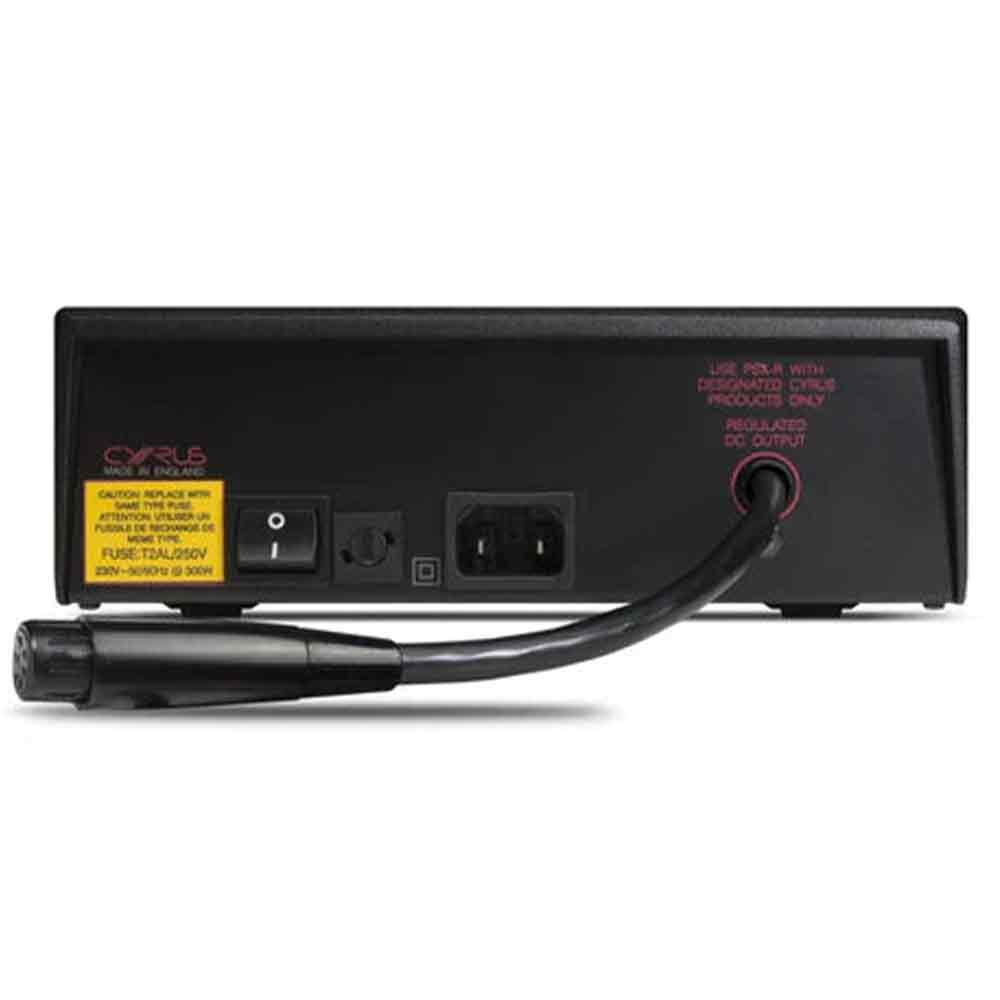

No modifications are required when connecting a PSX-R2 to partnering equipment. Both units intelligently adjust output and input parameters to suit. Simply power off both units, connect and power on; internal circuitry detects the connection and re-adjusts perfectly.

300VA Torodial
A 300va toroidal transformer with an enormous current delivery capability, forms the front end of the PSX-R2 . The 30,000 microfarad slit foil reservoir capacitors ensure that very low ESR and wide bandwidth are presented to the linear mode regulator stage that follows.

What to expect in the box:

  • PSX-R2 Power Supply

Product Details:

  • Power Supply
  • Voltage: As plate on rear of unit
  • Power Consumption (X Power 50W/8Ω): 227W
  • Safety Compliance: CE
  • EMC (230V): CE
  • EMC (115V): FCC
  • Enclosure
  • Dimensions (WxHxD): 215 x 75 x 365mm
  • Weight: 4.6kg
  • Material Die cast chassis
  • Output Voltage
  • High Level: +/- 35.5VDC
  • Low Level: +/- 21VDC
  • Variable: +/- 18-30VDC
  • Load Regulation
  • Amplifier, 50W/Ch. 8Ω 1kHz: 0.2%
  • O/P Noise
  • @250W: <40μV
  • Ripple Rejection
  • @250W: >67dB
  • MISC
  • MPN: AAV-PSXR2
  • EAN: 5060020434648
