Audio-Technica VM610MONO Dual Moving Magnet Cartridge

Audio-Technica VM610MONO Dual Moving Magnet Cartridge - Audio-Technica

Overview

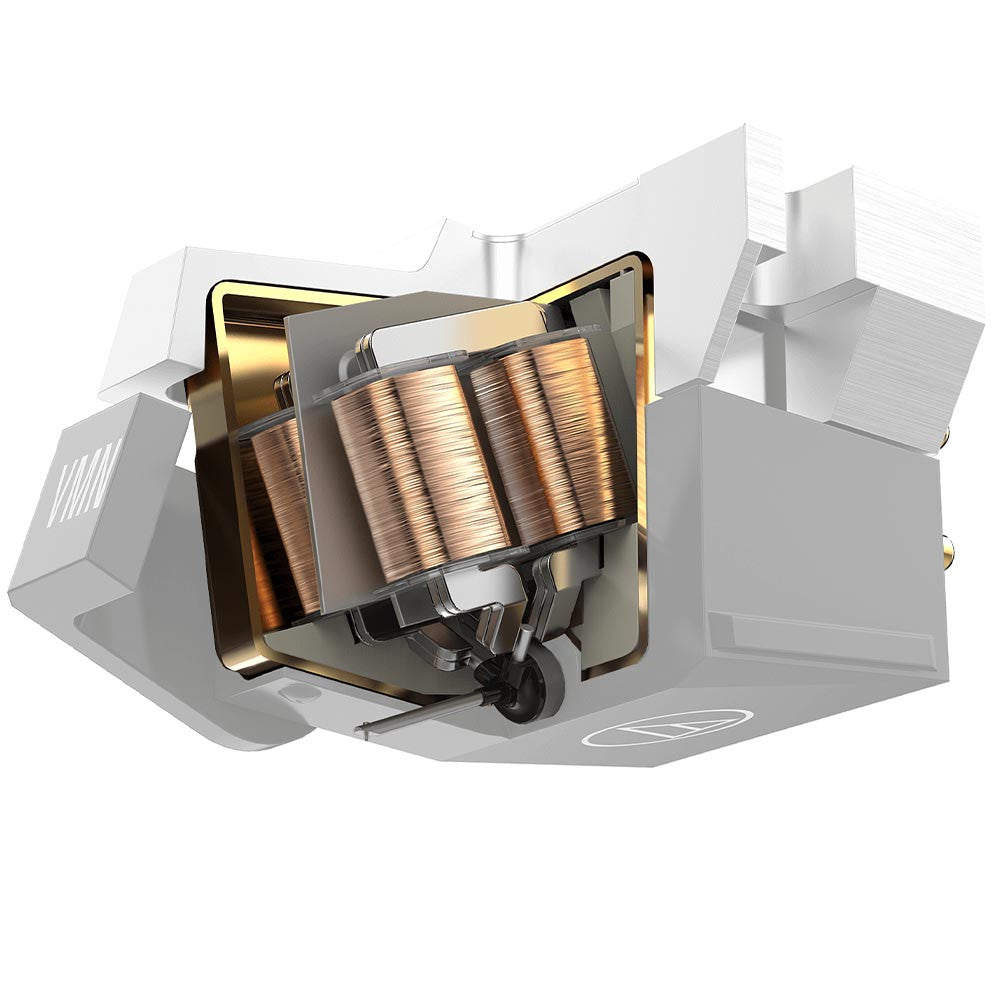

With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. Includes mounting hardware.

Features:

• VM dual magnet cartridge with 0.6 mil conical stylus
• Aluminum cantilever
• Paratoroidal coils improve generating efficiency
• Mono body terminating left and right channels reduces surface noise
• Durable low-resonance polymer housing

Specifications:

• Cartridge & Stylus
• Frequency Response: 20-20,000 Hz
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 1,400 ohms (1 kHz)
• DC Resistance: 400 ohms
• Coil Inductance: 230 mH (1 kHz)
• Output Voltage: 3.0 mV (at 1 kHz, 5 cm/sec)
• Stylus Shape: 0.6 mil conical
• Cantilever: Aluminum pipe
• Static Compliance: 35 x 10-6 cm/dyne
• Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D

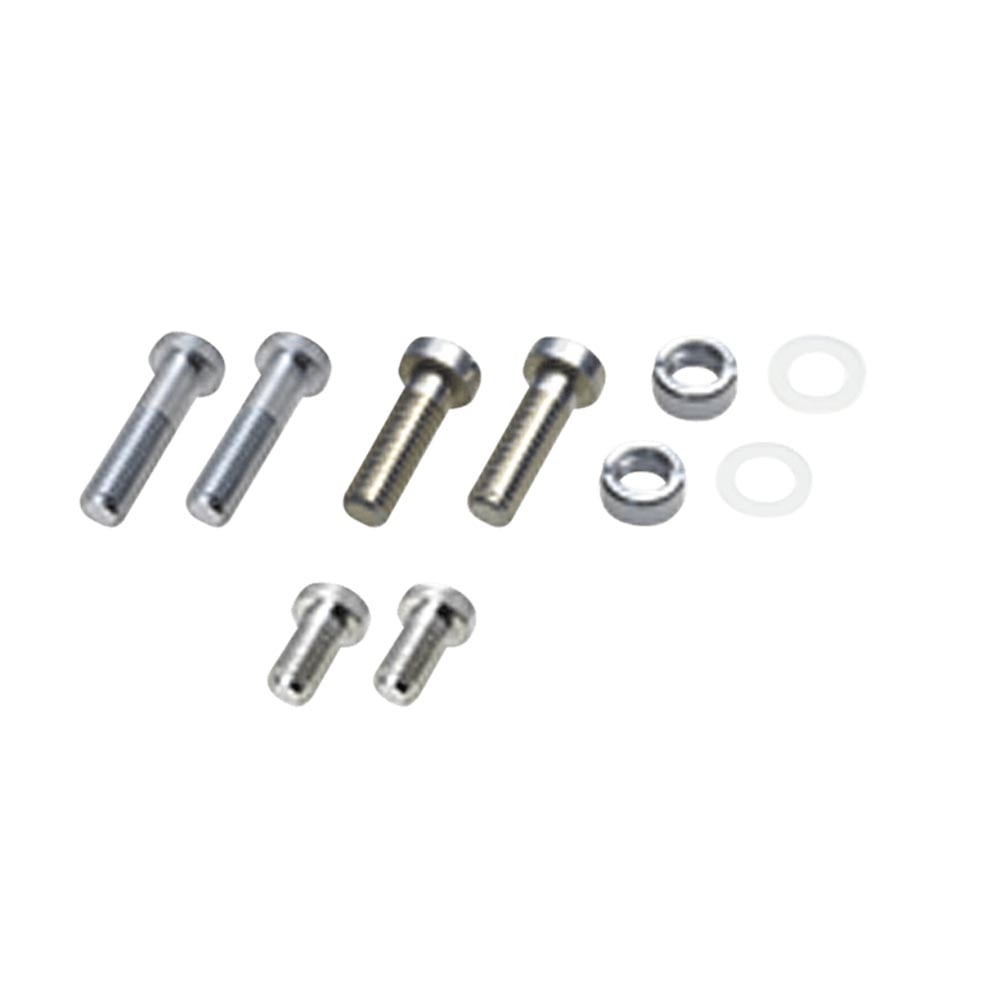

• Accessories Included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100-200 pF
• Replacement Stylus: VMN10CB
• Stylus Size: 0.6 mil
• Type: VM Type
• Weight: 6.4 g (0.2 oz)
