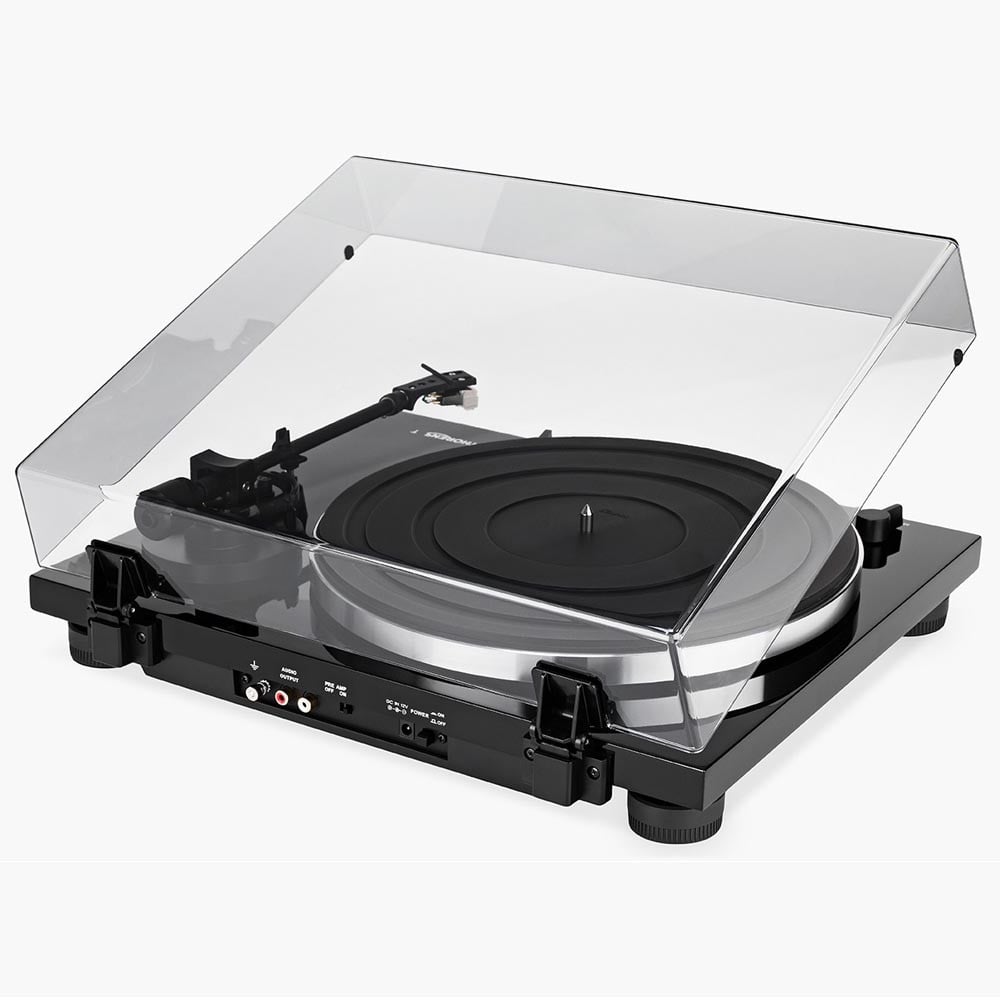

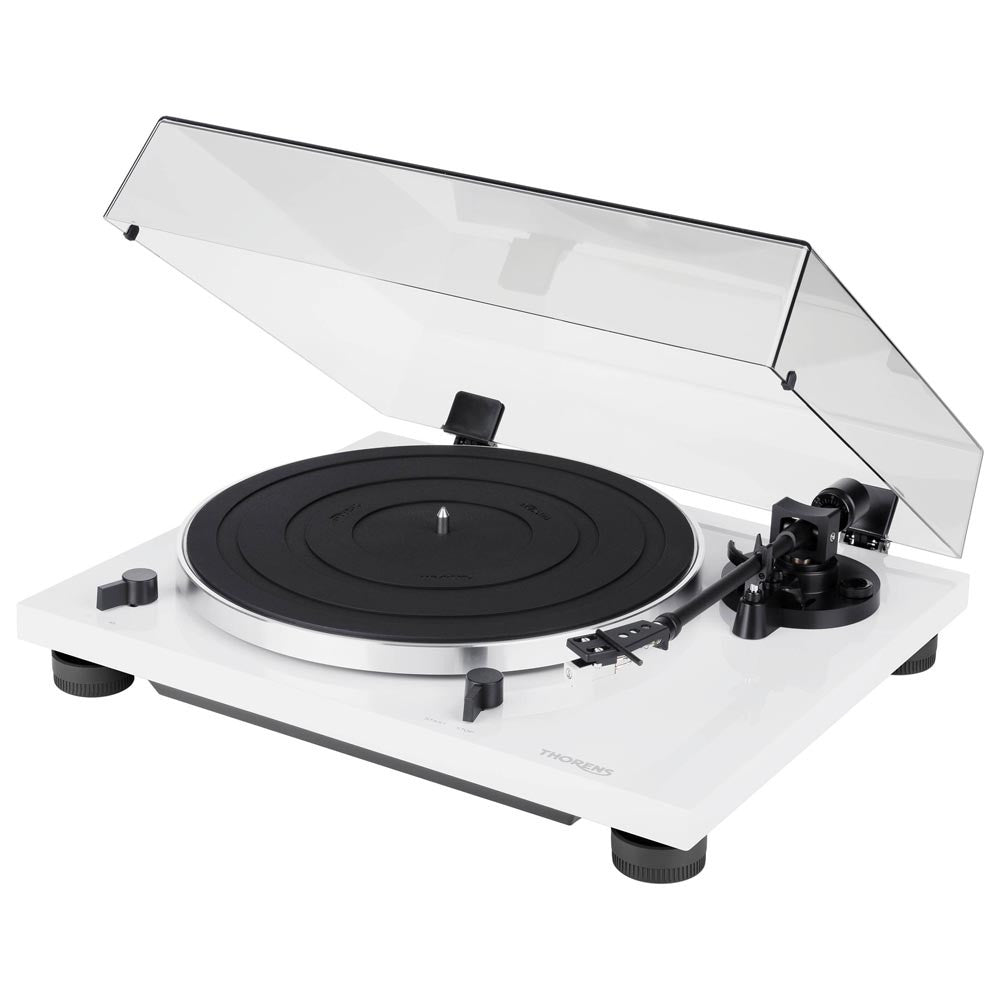

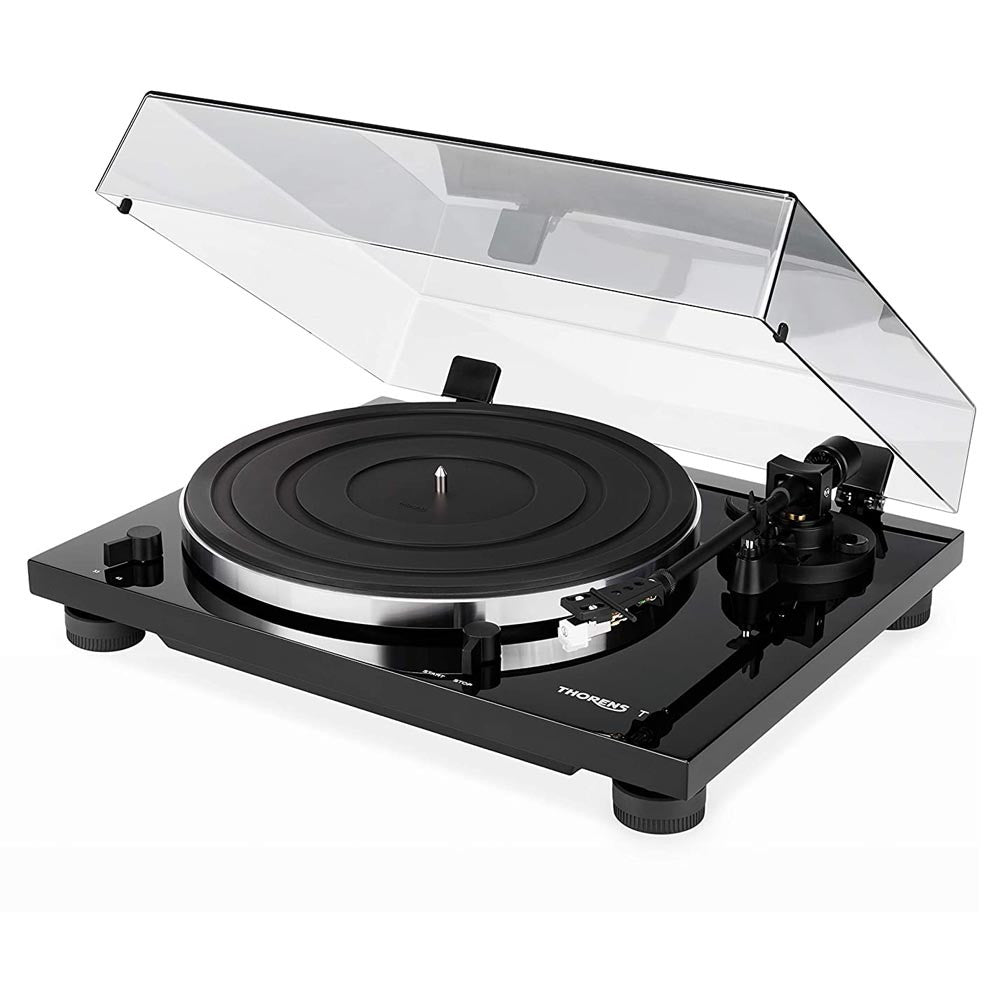

Thorens TD 201 Manual Turntable with Built-in Phono Stage in Black or White

Thorens TD 201 Manual Turntable with Built-in Phono Stage in Black or White – Thorens

The new Thorens TD 201 is the right choice for anyone looking for a robust, easy to use plug and play turntable. It comes with a smooth running belt drive and an aluminum platter with rubber mat. The new Thorens TP 71 tonearm uses a detachable headshell with preconfigured AT 3600 cartridge.

Special Features:

• Using the switchable integrated phono stage the TD 201 can be connected to any amplifier or receiver even if it does not have a specific input for phono devices

Technical Specifications

Turntable section

• Drive system: Belt Drive
• Motor: DC Motor
• Speeds: 33 1/3 RPM, 45 RPM
• Rotation Speed Variation: +/–2%
• Wow and Flutter: 0.2%
• Signal-to-Noise Ratio: 67dB or higher (A-weighted, 20kHz LPF), 60dB or higher (unweighted, 20kHz LPF)
• Platter: Aluminum Die-cast
• Diameter of Platter: 12″, 300mm

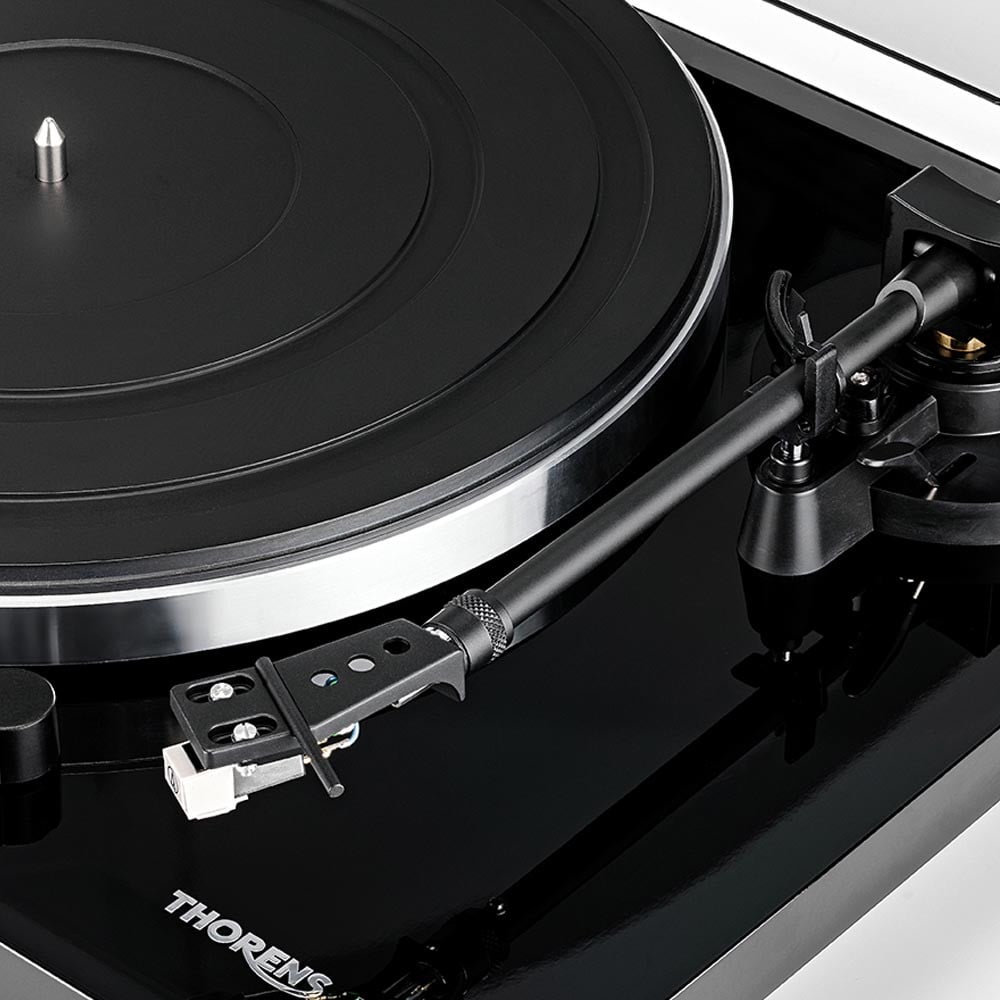

Tonearm section

• Type: Static Balance, Straight
• Effective Arm Length: 8.8″, 223.6mm
• Stylus Pressure Range: 0 to 4g
• Supported Cartridge Weight: 3.5 to 6.0g
• Overhang: 18.6mm
• Anti-skating Adjustment: Supported

Cartridge section

• Type: MM type (Audio-Technica AT3600)
• Stylus Construction: Bonded Diamond
• Frequency Response: 20Hz to 20kHz
• Channel Separation: >18dB
• Channel Balance: 2.5dB
• Vertical Tracking Angle: 20 degrees
• Supported Load Impedance: 47k ohms
• Output Voltage: 2.5mV (1kHz, 3.54cm/sec.)
• Stylus Pressure: 3.5g +/–0.5g
• Cartridge Weight: 5g +/–0.5g
• Head-shell Weight: 10g (including Screws, Nuts and Wires)

Analog Output

• Connector: RCA Pin jack (Gold-plated)
• Power: AC 100 to 240V, 50/60Hz
• Power Consumption: 1.5W (less than 0.5W at Standby)
• Overall Dimensions (W x H x D): 420 x 355x 121mm
• Weight: Approx. 3.9 kg
